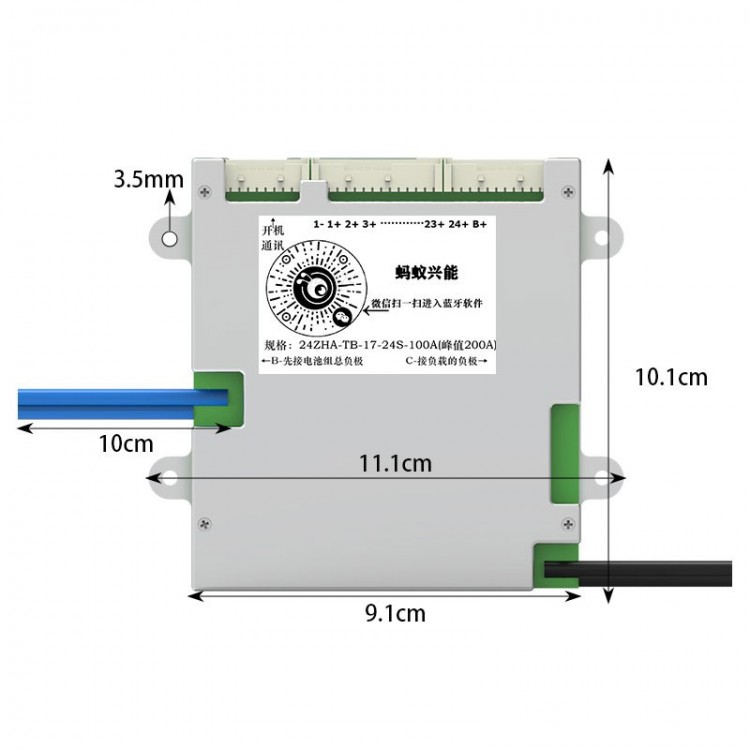

17S to 24S 100A (Peak 200A) BMS Lithium Battery Protection Board with 3.8" LCD Screen Display
Version Introduction:
17S to 24S 100A with LCD: BMS continuous discharge current 100A and peak discharge 200A. A LCD screen is included.
Description:
Newest version! It has an English APP for iPhone IOS and Android, and computer software. It is built-in Bluetooth type.
Attention:
- Newest BMS must use the newest APP or software! Old APP can't program newest BMS! Please contact us for the newest APP and other documents before using!
- And BMS also supports computer software (you need to buy a usb adapter separately).
Product Introduction:
- Balance current: 100MA
- Wiring method: common port
- Single cell voltage: detection range 1V-4.6V, accuracy less than 5Mv
- Overcharged and paid: protected
- Short circuit protection: short circuit protection current can be set
- Bluetooth connection: for Android hand sail
- Applicable battery: Lifepo4/LTO/Li-ion/Lipo
- Coulomb counter: accurate calculation based on current versus time
- Battery remaining capacity, error range is less than 5%
- Power consumption: 3MA at work
- 1.5MA during standby
Package Included:
- 1 x Lithium Battery Protection Board
- 1 x LCD Screen
Note:
- Batteries and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
