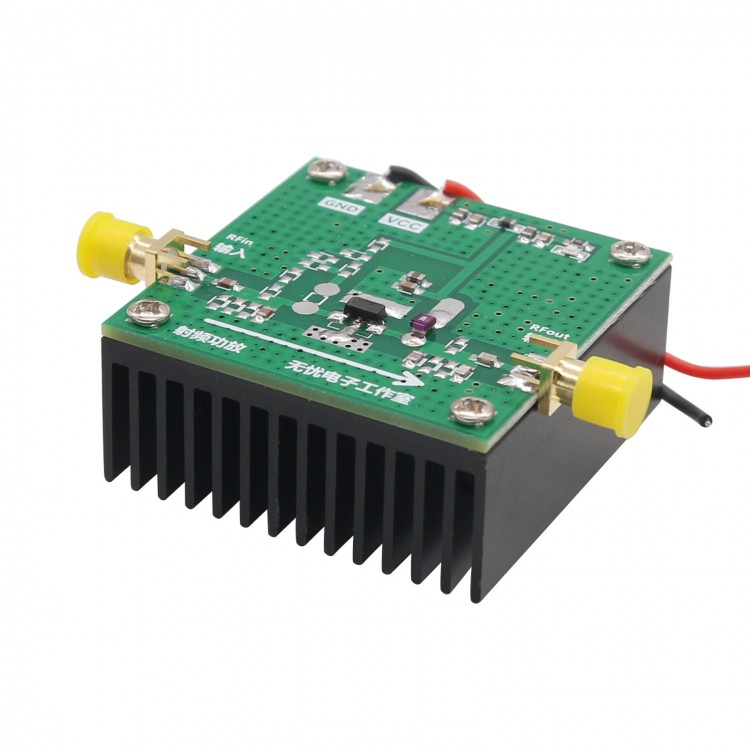

1GHz 1W RF Power Amplifier Development Board TQP7M9103 w/ Heat Sink For Continuous Operation
Features:
* Default 1GHz
* +29.5 dBm P1dB
* +45 dBm Output IP3
* 16.5dB Gain @2140 MHz
* +5V Single Supply, 235mA Current
* Internal RF overdrive protection
* Internal DC over-voltage protection
* On chip ESD protection
* Capable of handling 10:1 VSWR @5Vcc, 2.14 GHz, 29.5 dBm CW Pout or 20 dBm WCDMA Pout
* SOT-89 Package
Applications:
* Repeaters
* For BTS Transceivers
* For BTS High Power Amplifiers
* For CDMA / WCDMA / LTE
* General Purpose Wireless
Package Included:
- 1 x RF Power Amplifier Board
Note: You will get items with frequency point 1GHz & gain 17DB. Customization service for other frequencies in 400MHz-4GHz is available. If you need it, please contact us to pay extra money.
