1GHz-2.7GHz Ultra-Wideband Broadband RF Power Amplifier Microwave Power Amplifier Output 4-6W

1GHz-2.7GHz Ultra-Wideband Broadband RF Power Amplifier Microwave Power Amplifier Output 4-6W

Product Application:
This amplifier boasts ultra-wide frequency range, high gain, large output power, etc. It is mainly used in the driver stage or final stage of various radio frequency transmitters. It is widely used in various scientific research experiments, EMC electromagnetic compatibility testing, 2.4GHZ remote control, the final stage of 2.4GHZ image transmission equipment. In addition, thanks to its ultra-wide bandwidth, it can be used in radio management to test the full frequency spectrum monitoring.

The amplifier is made of aerospace aluminum alloy milled by CNC, with high precision and light weight. The appearance is treated with natural conductive oxidation, and the conductivity and electromagnetic shielding effect are excellent! The power supply port uses radio frequency through-core capacitors, which can effectively filter out the spikes and other clutter on the power supply!

Parameters:
- Working frequency: 1GHz-2.7GHz

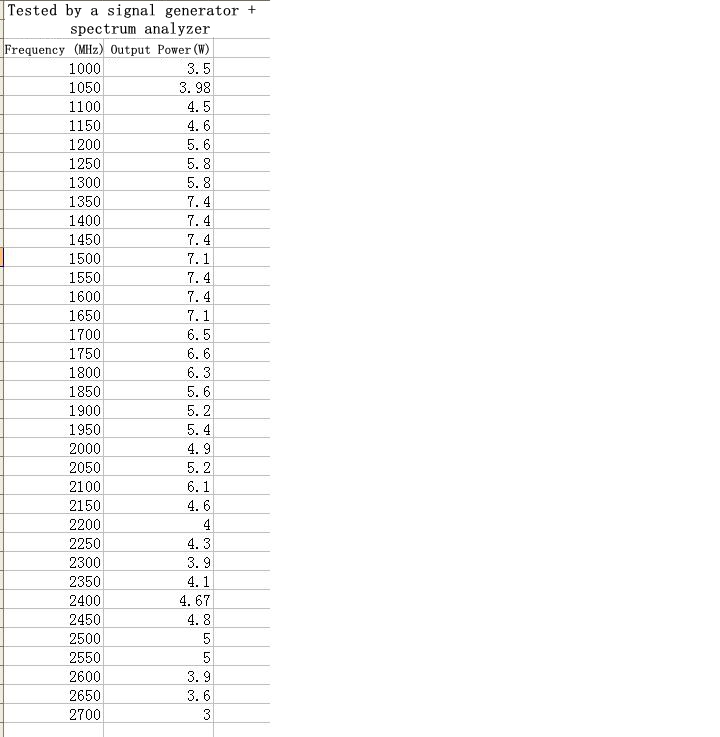

- Output Power: 4-6W

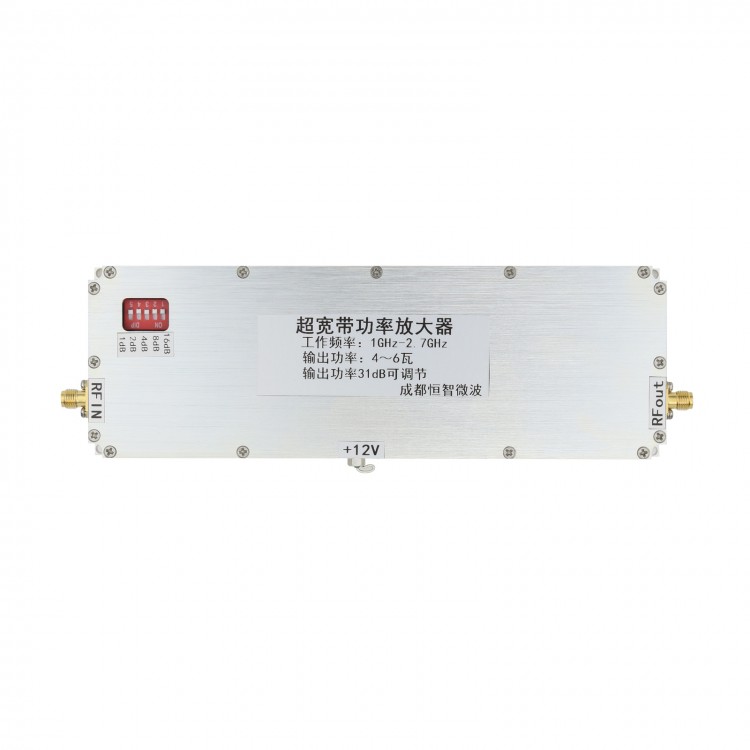

- Output power 31dB adjusted. The output power can be adjusted in 1dB steps (the dial switch pictured is used to adjust the attenuation)
- Gain: greater than 37dB (in-band flatness ±1dB)
- The amplifier output has a 3dB bridge synthesis network, so even if the output is not connected to a load or antenna for a short time, there will be no danger of burning the amplifier
- Power supply: 12V power supply, current 2A at 0dBm input power
- Dimensions: 180*60*18mm, with 4 mounting screw holes

Package Included:
- 1 x RF Power Amplifier
