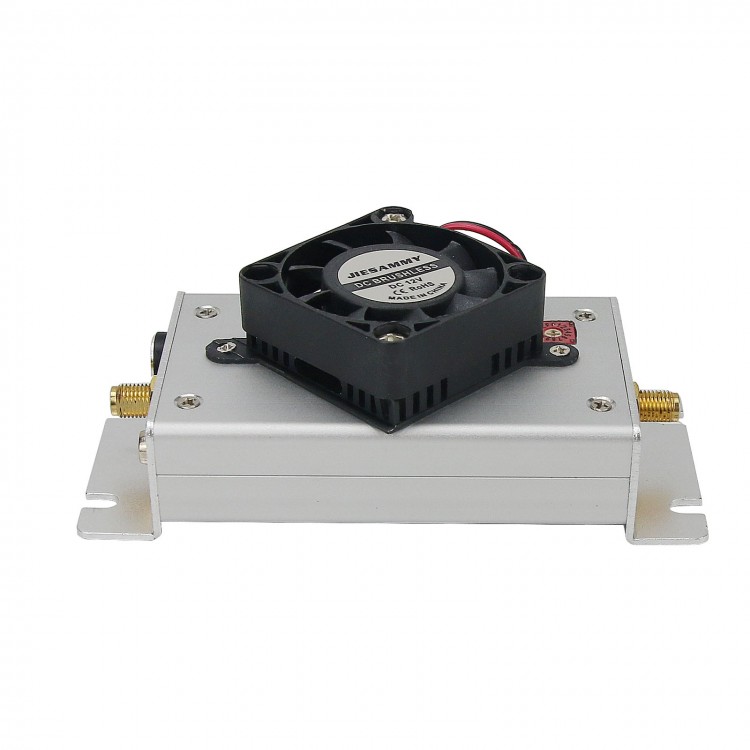

1M-1.2GHz Broadband RF Power Amplifier Module Amp Adjustable Gain 16dB Output 2W with Cooling Fan
Features:
- 1M-1.2GHz (1-1200MHz) RF broadband power amp
- Gain: 21-31dB (adjustable by turning the digital encoder. 1dB step, 16dB adjustable)
- Power Supply: DC +12V (Power on through DC socket. If you need a 220V power adapter, please contact customer service)
- Current: 500mA (static). This current varies with the input frequency and power, which is what we usually call the dynamic current value less than 650mA
- Output Power: Within 1-1200MHz, the output power is greater than 30dBm (1W), and the saturation power is 2W
- Input & Output: 50 ohm impedance, SMA-K connector
- Anti-burnout Maximum Input Power: 20dBm (@attenuator control 10dB), 12dBm (@attenuator control 0dB)

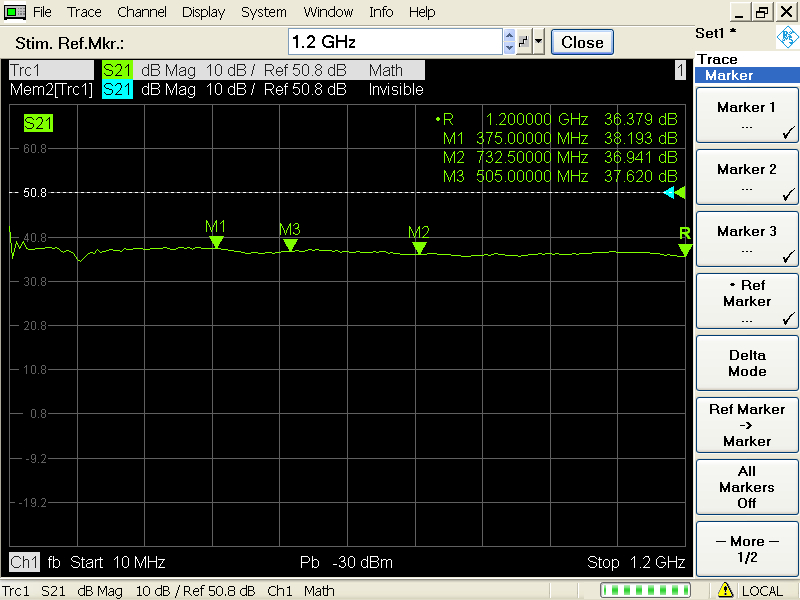

Gain Curve of Small Signal without Attenuation:
Attention:
- All of the items have passed strict tests before delivery.
- When the amplitude of input signal is below the maximum value, it is recommended that the product inputs at 0dBm.
- To avoid the damage caused by output reflection, input and output terminals must be connected to a reliable load.
- For long working hours, please add an external heat sink or let it dissipate heat through other heat conduction methods.
Package Included:
- 1 x RF Power Amplifier with Fan
