1M-1.2GHz Broadband RF Power Amplifier RF Power Amp w/ Cooling Fan Gain 16dB Adjustable & 2W Output

1M-1.2GHz Broadband RF Power Amplifier RF Power Amp w/ Cooling Fan Gain 16dB Adjustable & 2W Output

Features:
* 1-1200MHz broadband RF amplifier
* Gain: 21-31dB (adjustable by turning digital encoder, 1dB steps, 16dB adjustable)
* Power supply: DC+12V (power on through DC socket. If you need a 220V power adapter, you can contact customer service)
* Current: 500mA (quiescent). This current varies with the input frequency and power, which is what we usually call a dynamic current value of less than 650mA
* Output power: The output power is greater than 30dBm (1 watt) within 1-1200MHz, and the saturation power is 2W
* Input and output form: 50-ohm impedance and SMA-K connector
* Anti-burnout maximum input power: 20dBm (attenuator control 10dB) and 12dBm (attenuator control 0dB)

Package Included:
* 1 x RF Power Amplifier

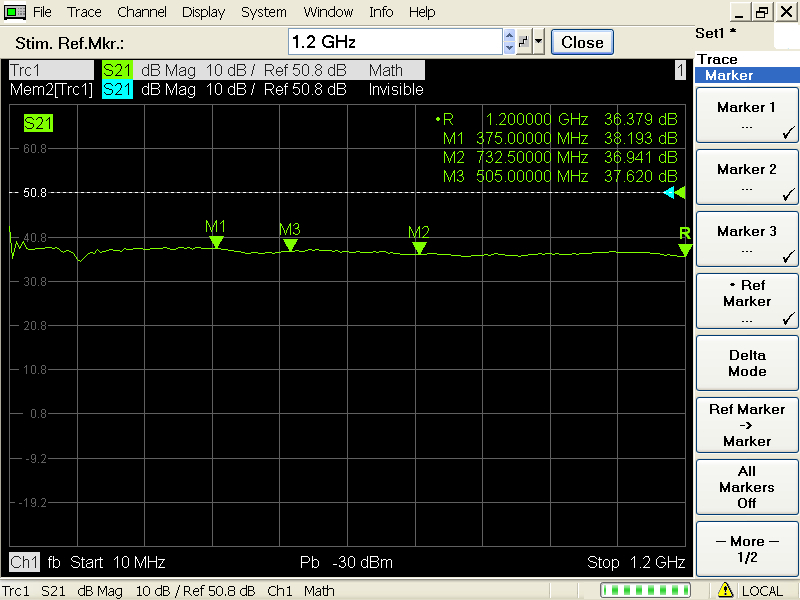

Gain curve of a small signal without attenuation:


Read before purchasing:
Before shipping, we test the product and do our best to pack it so that it is delivered in perfect condition.

Based on the characteristics of the amplifier, we make the following recommendations:
1. The amplitude of the input signal is below the maximum value. As a product provider, we hope that it can input at 0dBm as the best;
2. The input and output must be connected to loads, and the reliable connection must be ensured, because the most feared thing about the power amplifier is the damage caused by the output reflection, even if the time is so short that it is only the moment of switching power;
3. If you need it to work for a long time, it is recommended that you add an external heat sink or let it dissipate heat through other heat conduction methods.

Packaging Details:
* Weight: 0.23kg
