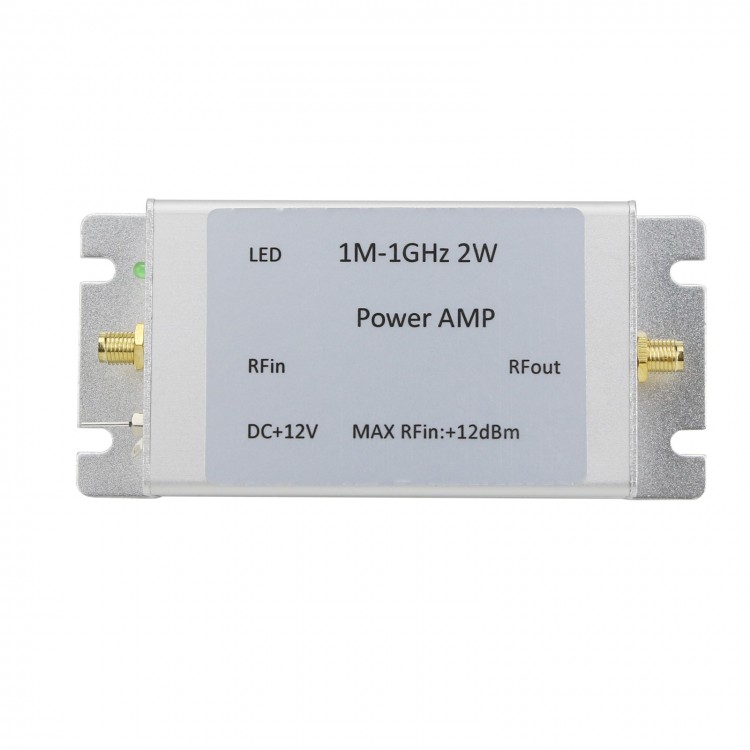

1M-1GHz Broadband RF Power Amplifier Module 2W HF FM VHF UHF FM RF Power Amp

1M-1GHz Broadband RF Power Amplifier Module 2W HF FM VHF UHF FM RF Power Amp

Description:
RVPA11000-1 broadband RF power amplifier is a broadband power amplifier with P-channel LMOS tube as the final amplifier. It can achieve a small signal linear gain of up to 37 dB over the bandwidth. The saturation output power reaches 2W, when the 15V power supply, the output power is greater.

Performance Features:
- Frequency range: 1-1000MHz (1M-1GHz)
- Gain: 37dB
- Saturated output power: 35dBm
- +12V@400mA (static)

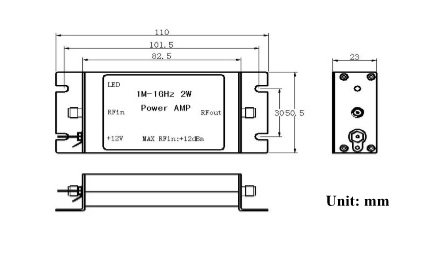

- Dimensions: 110 x 50.5 x 23 mm

Electrical Parameters (TA=+25℃@=15V):
- Saturated output power: typical value 33 dBm
- P1dB: typical value 31 dBm
- Linear gain: 38.5 dB maximum; 37 dB typical; 36.5 dB minimum
- Linear gain flatness: maximum value -1dB; minimum value 1dB
- Static working current: typical value 440 mA
- Dynamic working current: maximum 600mA
- Input & output impedance: typical value 50Ω

Use Limit Parameters:
- Power supply voltage: +15V
- input power: 12dBm
- Operating temperature: -20℃ to 50℃

Precautions:
1) The product needs to be stored in a dry environment;
2) Before the product is powered on, ensure that the input and output are reliably connected to a 50 ohm load;
3) External heat dissipation part is needed for long-term operation.

Package Included:
- 1 x RF Power Amplifier

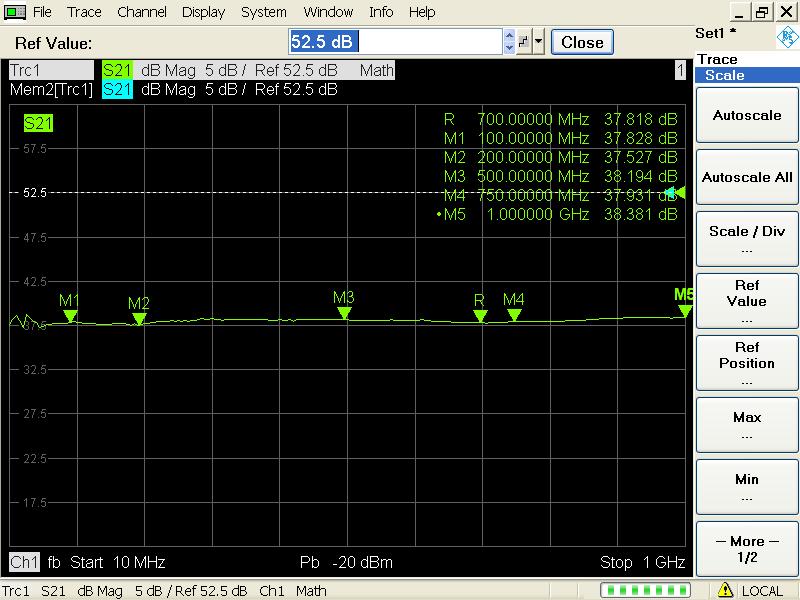

The picture above shows that when the small signal gain, the gain is basically about 37 dB.

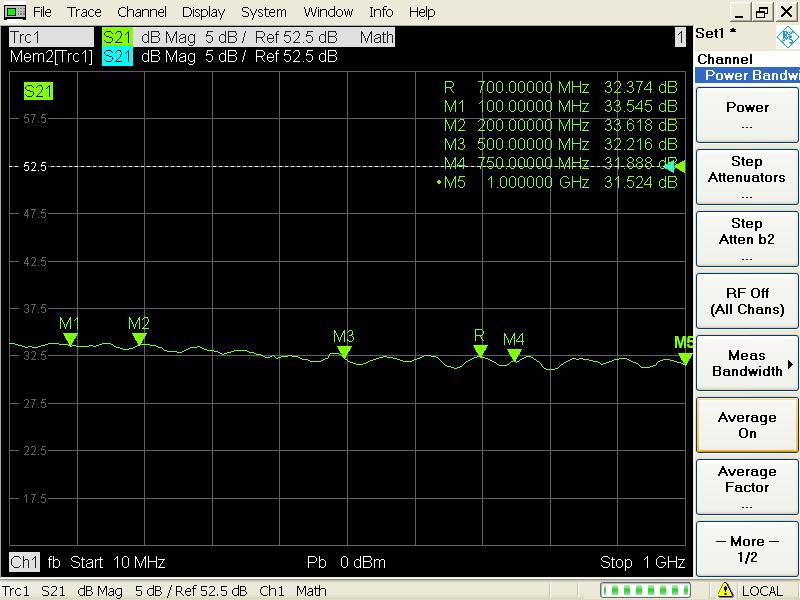

The figure below is 12V, input 0 dBm saturation power output, the output power of the whole frequency band is greater than 30dBm.


The following figure is 15V, input 0 dBm saturation power output, the output power of the whole frequency band is greater than 32 dBm.

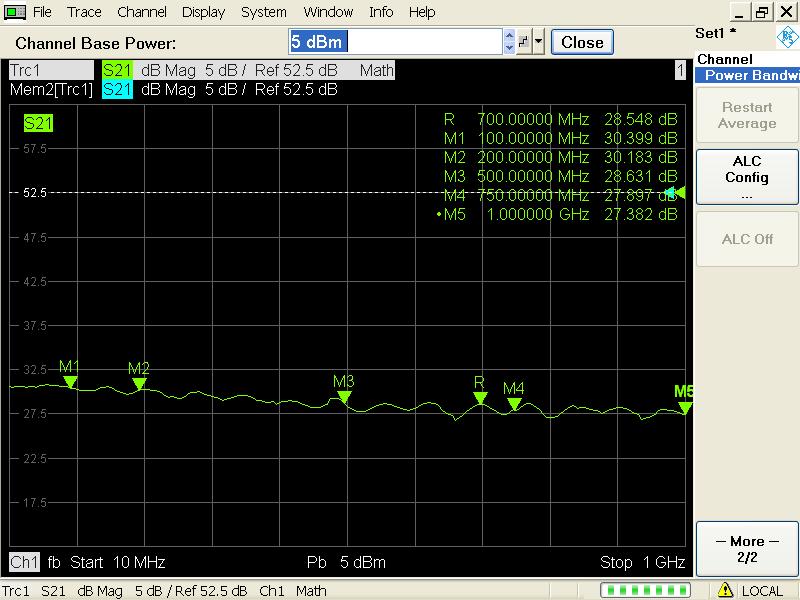

The figure below is 15V, input 5 dBm saturated power output, the output power of the whole frequency band is greater than 32 dBm, and greater than 33 dBm (2W) below 700MHz.


Attention:
- Items have been tested before delivery. Because there are screw fixing parts inside the product and places where high-temperature wire flying leads are connected, in order to ensure the reliability of everyone's use, each fixing point is coated with 705 silicone rubber. Therefore, some products may have a certain sour taste after opening the bag or some sour taste when the temperature is very high during use. This is the taste of 705 rubber. It is non-toxic and harmless, and everyone can use it with confidence.
- The amplitude of input signal is below the maximum value. It is recommended to input at 0dBm;
- Input and output must be connected to a load, and it must be a reliable connection to avoid damage caused by output reflection;
- If you need it to work for a long time, please add an external heat sink or allow it to dissipate heat by other means of heat conduction.
