1MHz-1200MHz RF Reflection Bridge Directional VSWR SWR Bridge Antenna Analyzer

Tags: Antenna Analyzer

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.90
  • Price in reward points: 209 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.48 $20.06 $19.44 $18.60 Contact US
Quantity:

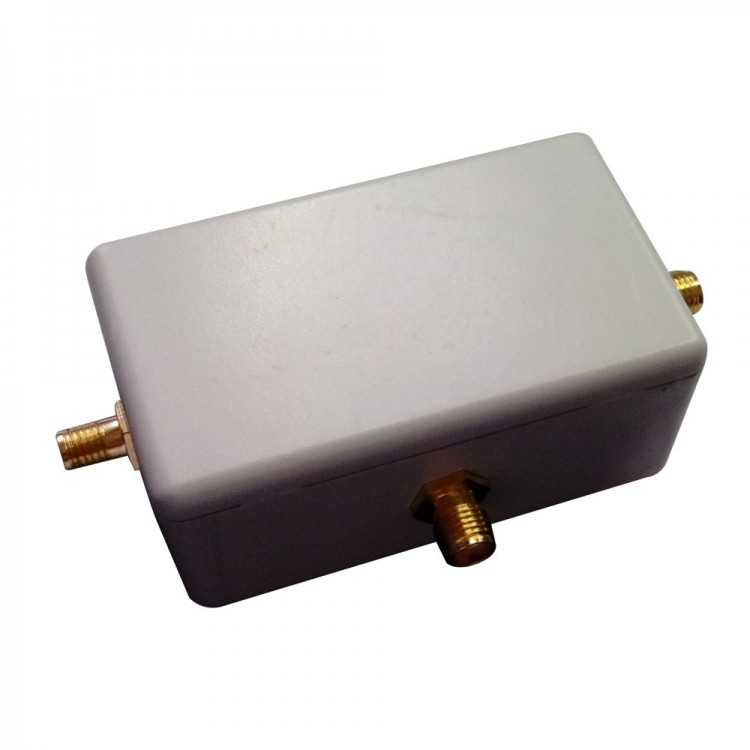

1MHz-1200MHz RF Reflection Bridge Directional VSWR SWR Bridge Antenna Analyzer





Features:

1.Widely used in the antenna measurement debug,debug and test RF matching circuits.Device swept return loss measurements.
2.Microstrip circuit design, to meet the requirements of high frequency RF operating frequency range: 3MHz~1200MHz.
3.High directivity.Typical directional 30dB and 500MHz,27dB and 1GHz,26dBa and 1.2GHz.
4.To test the circuit 1GHZ frequency is greater than in the reference load circuit design using an external way,the external load,see pictures of them bridge.The load can work well in 4GHZ less,thus fully meet the requirements of this test 1.2GHZ frequency bridge.
5.Under the bridge and then the matching of the input and output VSWR <1.1

Specification:

- Working frequency range:1MHz~1200MHz
- High directivity:1-30MHz  28dB;30-1000MHz  33dB;1000-1200MHz  27dB
- Insert loss:13dB
- RF interface:SMA female 3 pcs interface,gernal external male thread,inner hole SMA female.

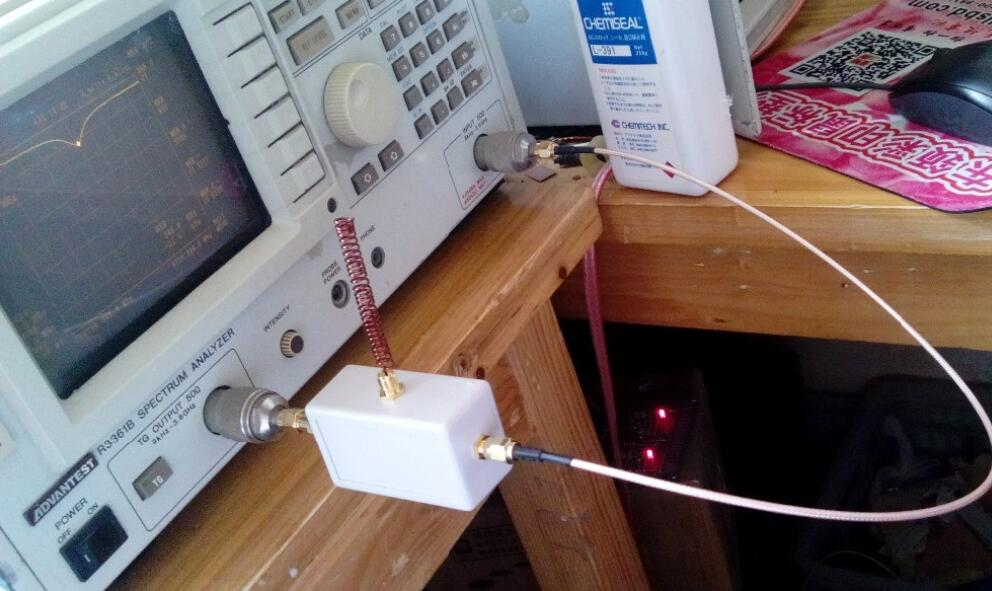

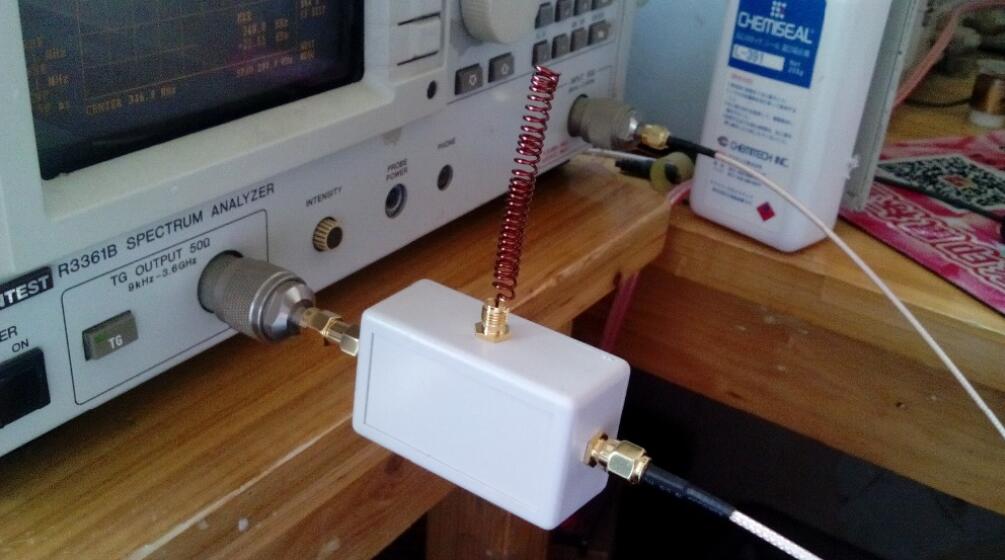

Use and connection method: The bridge has 3 ports:as the picture shows,the left is RF input terminal connects spectrum analyzer tracking source (TG);the middle interface connects tested antenna;the right interface connects spectrum analyzer signal input terminal.

Package List:
- 1 x Antenna Analyzer
