1MHz-6GHz HackRF One Software Defined Radio SDR & Antennas Bundle Acrylic Housing Kit

Availability: Out Of Stock

  • Price:$138.85
  • Price in reward points: 1389 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $136.07 $133.30 $129.13 $123.58 Contact US
Quantity:

1MHz-6GHz HackRF One Software Defined Radio SDR & Antennas Bundle Acrylic Housing Kit

Description:

HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies. HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One is test equipment for RF systems. It has not been tested for compliance with regulations governing transmission of radio signals. You are responsible for using your HackRF One legally.

HackRF One, a fully open source SDR device, fits for WINDOWS, LINUX, Mac, Android and other systems, the frequency of support is 1MHz-6GHz.

HackRF One supports for software: including HDSDR, GNUradio, SDR#, gqrx, SDRRADIO and GPS-SDR-SIM.

Technical Parameters:
Basic Parameter
- Working Frequency: 1MHz-6GHz
- Duplex Mode: Half-Duplex Transceiver
- RF Bandwidth: 20MHz
- Sampling Rate ADC/DAC: 2Msps-20Msps
- Sampling Accuracy ADC/DAC: 8-Bit
- Power Supply/Data Port: USB2.0
- Open Source: Software & Hardware Open Source

Radio Frequency Indicator
- Max Transmission Power: 10dBm
- Max Receiving Power: -5dBm (Please use it within the range)
- 64QAM Transmitting EVM: 1.5%
- Complex Sampling Bandwidth: 20MHz

Main Hardware
- RFFC5072: The mixer provides a local oscillator signal from 80MHz to 4200MHz
- MAX2837: 2.3GHz-2.7GHz Wireless Broadband RF Transceiver
- MAX5864: ADC/DAC, 20MHz with 8-bit Sampling Accuracy
- LPC4320/4330: ARM Cortex M4 Processor, Dominant Frequency 204MHz
- Si5351B: I2C Programmable CMOS Clock Generator
- MGA-8153: 0.1-6GHz 3V 14dBm Amplifier
- SKY13317: 20MHz-6GHz RF Switch
- SKY13350: 0.01-6GHz RF Switch

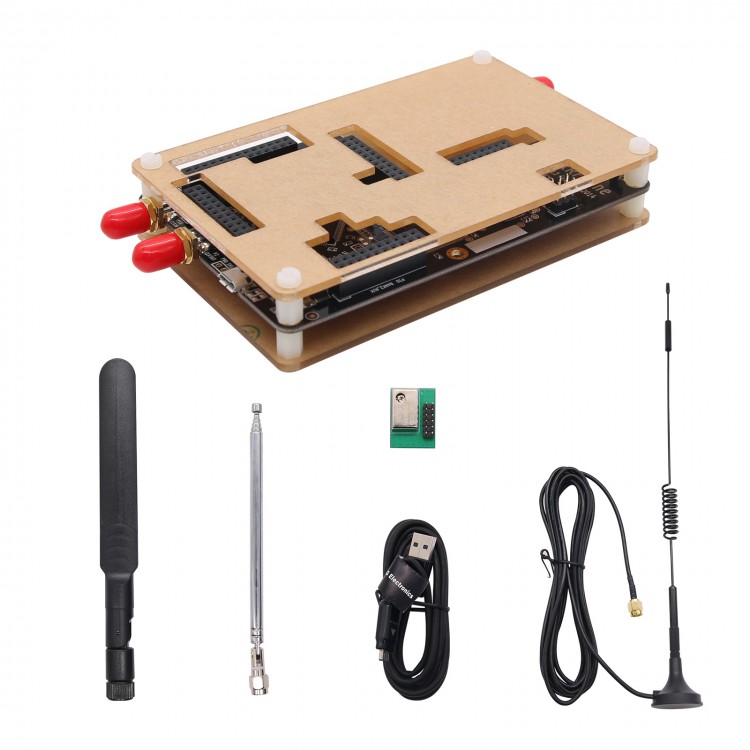

Package Included:
- 1 x HackRF + Shield + Acrylic Shell
- 1 x 2.4G/5/5.8GHz Antenna
- 1 x 40MHz-6GHz Antenna
- 1 x LG USB Data Cable
- 1 x External TCXO Clock Module
- 1 x 700MHz-2700MHz Antenna
