1pc Electric Skateboard Controller 6S 24V Longboard Remote ESC Subsitute +1pc Brusheless Motor 170KV

1pc Electric Skateboard Controller 6S 24V Longboard Remote ESC Subsitute +1pc Brusheless Motor 170KV

Main Features:
- A sine wave scheme makes it work more stable than the ESC and it is not easy to burn out
- Low speed but with high torque
- Two-way Communication: You can check the power of the skateboard through the remote control
- Multiple Protections: It features low-voltage alarm function, under-voltage and power-failure protections
- Max. Load Capacity: 120kg
- Application: for Electric Skateboard, Longboard, One-wheel scooter and Balance Scooter
- Fit Hub Motor RC Motors: 5055 5065 6354 6364 6374 6384

How to Match the Remote Control with the Controller Board:
1. Connect the control board to power source.
2. Turn the control board power on, wait for 2 seconds. Then press and hold the switch for about 6 seconds till the power indication light flickers.
3. Turn on the remote control and use a small screwdriver to press the code synchronize switch in the lower left corner of the remote control.
4. Turn off the remote for 2 seconds and then turn it on. Wait for the remote control signal light and the switch signal light to flash at the same time, which means that the match is finished.

Specifications:
Skateboard Longboard ControllerKit:
- Name: Four-Wheel Skateboard Longboard Controller Set
- Voltage: 24V, 6S
- Current: 12A
- Speed: 4200 RPM
- Max. Power: 290W (24V)
- Drive Mode: Dual System Drive
- Max. Speed: 35KM/H
- Protections: Over-voltage, Under-voltage, Over-temperature, Stall, CW/CCW, Adjustable Speed
- Sensing Way: Hall
- Power Connector: XT60 Male Plug
- Motor Plug: 4mm Banana Plug
- Max. Load Capacity: 120kg
- Remote Distance: up to 20 meters

Brushless Motor:
- Model: C6374
- KV: 170
- Power: 2900kw
- Voltage: 18-29V
- Shaft: 10mm
- Install holes: 30/44mm
- Diameter: 63mm
- Length: 70mm
- Connectors: 4mm bullet male plug
- Sensor/sensor-less: sensor-less

Note: No Installation Guides Are Included, Professional usage is strongly recommended. We strongly suggest you to ask professor to help you to install this motherboard.

Package Included:

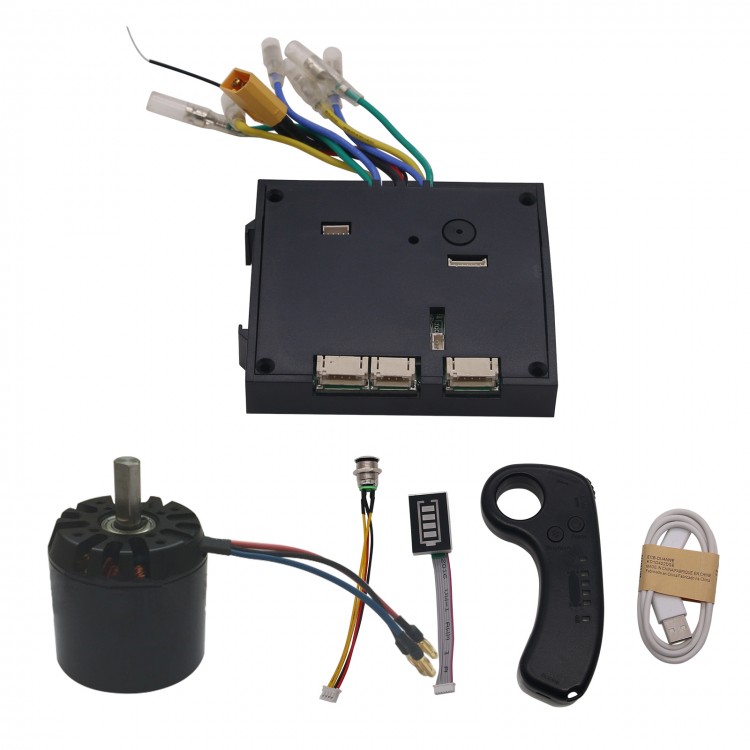

- 1 x Skateboard Longboard Controller Kit
- 1 x Brushless Motor 170KV C6374




More Details:

How to Change the Input Voltage:
6S 24V: Connect Point 1, Disconnect Point 2
7S 29.4V: Connect Point 2, Disconnect Point 1
10S 36V: Disconnect Point 1, Disconnect Point 2
