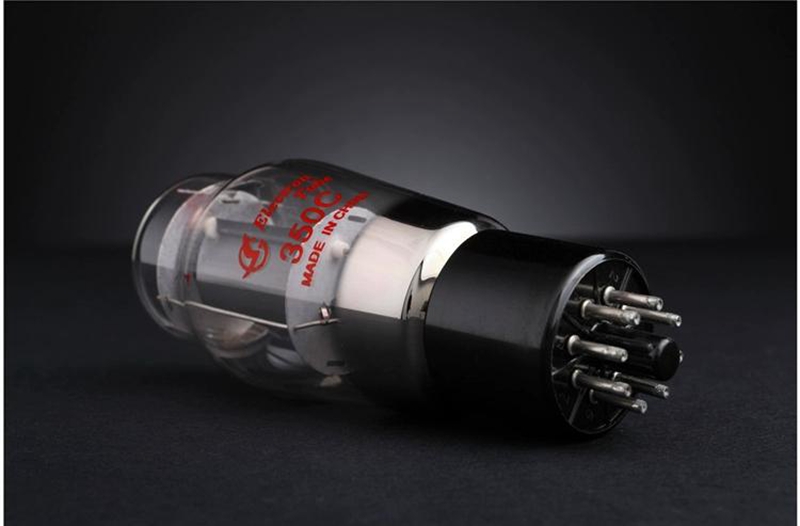

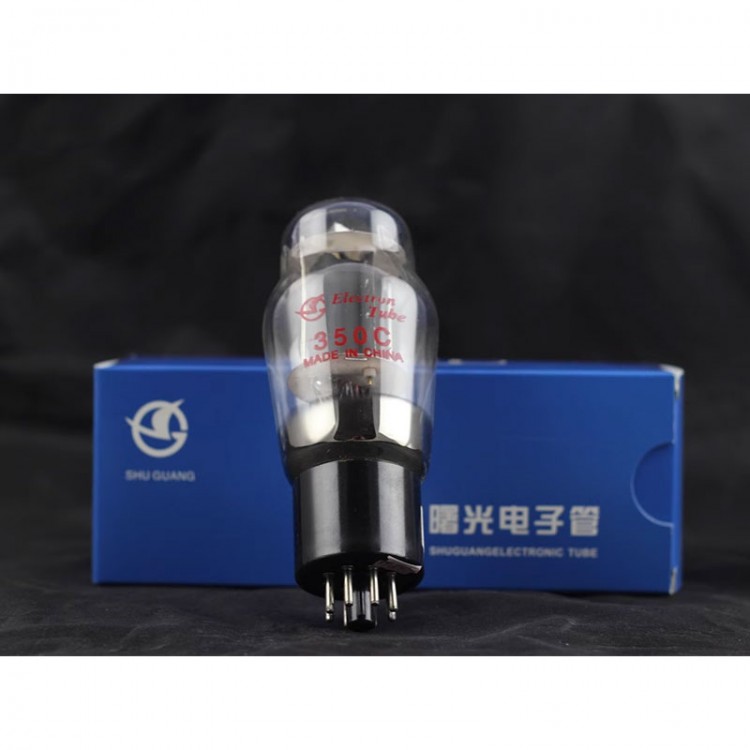

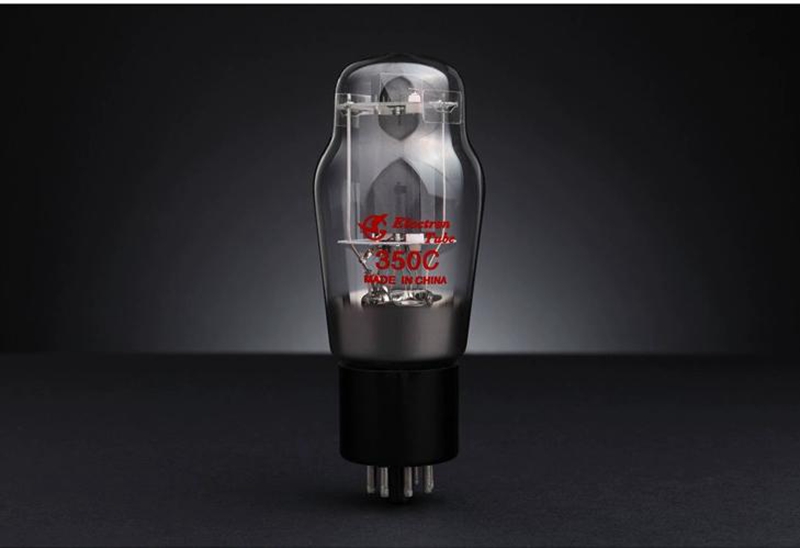

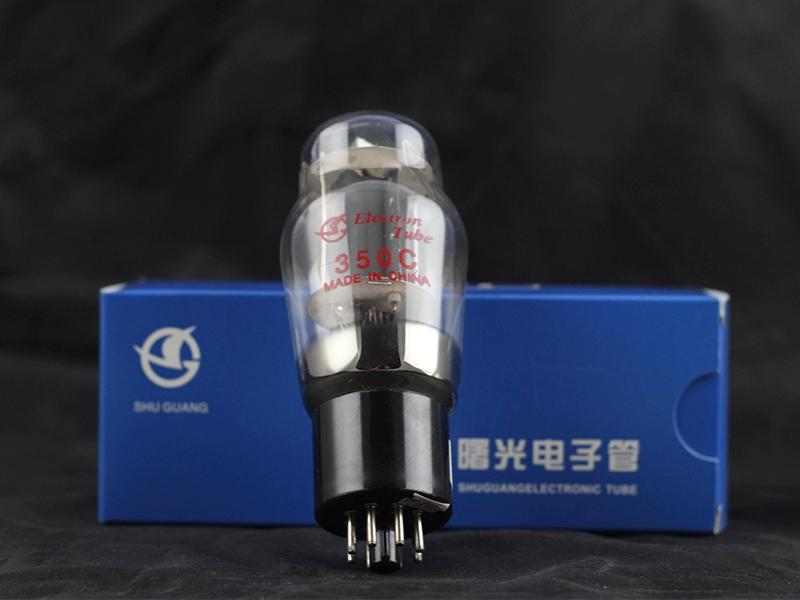

1PCS 350C Audio Electronic Tube 30W High Quality Vacuum Tube Replacement for KT66 5881A 6P3P 6L6WGC
Limit Rated Value:
- Anode voltage: 400V
- Second gate voltage: 300V
- Anode dissipated power: 30W
- Second gate dissipated power: 4W
- Voltage between heater cathodes: ±150V
- First gate resistance: 0.1Mohm for fixed bias; 0.5Mohm for self bias
Inter-electrode capacitance:
- Input capacitance: 16pF
- Output capacitance: 8pF
- Transfer capacitance: 0.5pF
Static Parameter:
- Ua: 250V
- Ug2: 250V
- -Ug1: 14V
- Ia: 93mA
- Ig2: 6mA
- Gm: 8.3mA/V
- ri: 37.5Kohm
Package Included:
- 1 x Electronic Tube
