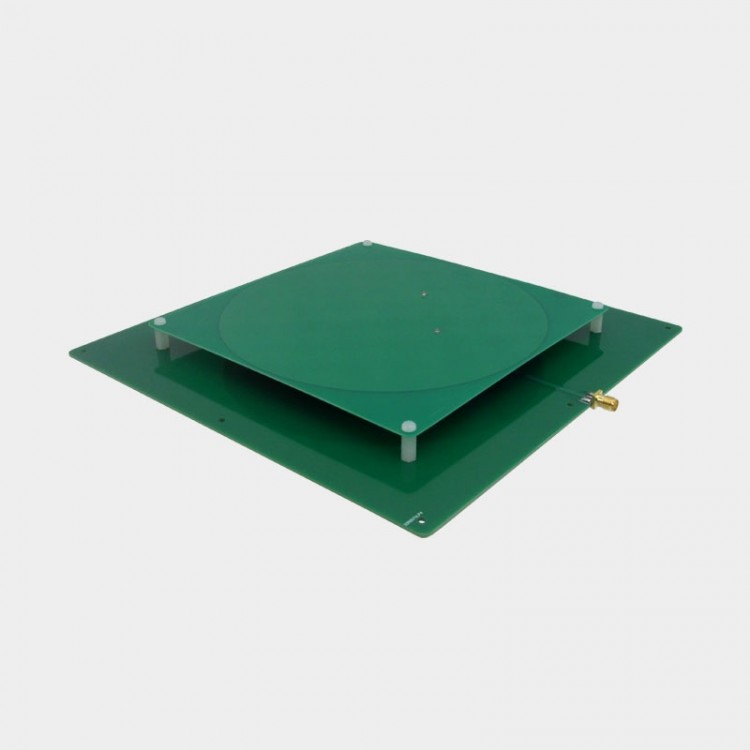

1PCS T0217 UHF RFID Antenna 915MHz 50ohms 8dBi Circular Polarized RF Antenna with SMA Female Connector
Specification:

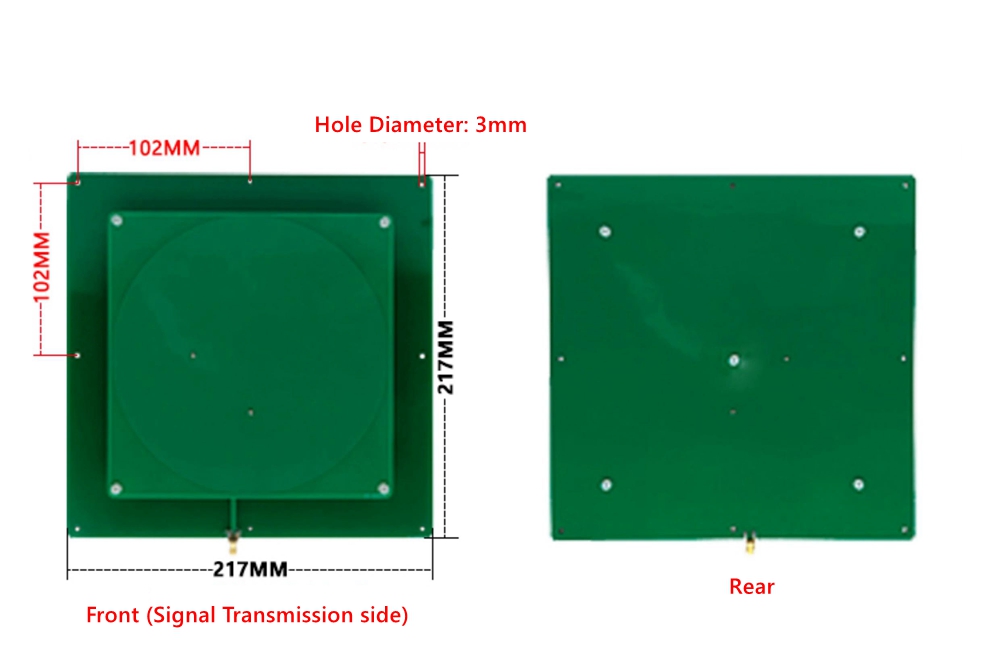

- Product size: 217 x 217 x 15mm
- Net weight: 205g
- Material: PCB
- Color: deep green
- Frequency range: 902MHz - 928MHz
- Polarization method: circular polarization
- Gain: >= 8dBi
- Axial ratio: <3dB
- H side HPBW: 68°
- E side HPBW: 68°
- Impedance: 50 ohms
- VSWR: <= 1.3:1
- Connector type: SMA female connector
- Installation method: 8 x M3 installation fixing holes
- Working temperature: -40°C ~ 85°C
Package Included:
- 1 x UHF RFID Antenna
