1W Large Power Wireless Transmitting Receiving TX RX Module |SPI|CC1101+PA| Telemetry Data Collection 433M 3KM

1W Large Power Wireless Transmitting Receiving TX RX Module |SPI|CC1101+PA| Telemetry Data Collection 433M 3KM

Description:

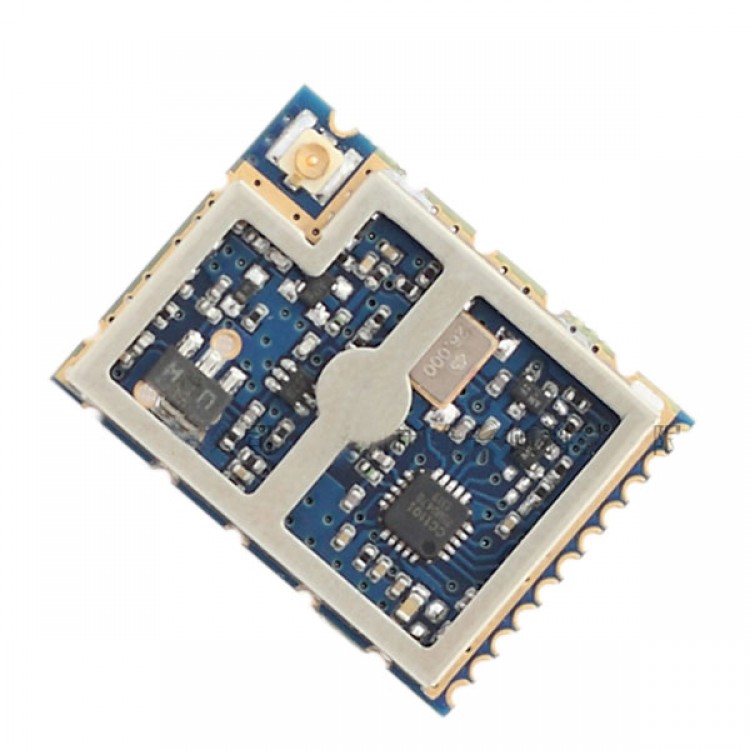

- The HPD8102 module for bidirectional power module, small SPI interface, half duplex communication. By FSK/GFSK/MSK modulation and demodulation, 27dBm 0.5W) emission power and good receiving sensitivity, communication distance is the farthest 3km, the module by Texas Instruments cc1101 high performance RF chip, and a dedicated RF power amplifier chip, stable performance, and support the function of frequency hopping design, compact module for the development of space layout has strict requirements of product module dormancy current is very low, with radio frequency wake-up function with low power CPU can significantly prolong the working time of the battery.

Parameters:
Working voltage: RF_IC 1.8V ~ 3.6V PA_VCC 3.3V ~ 12V
Working current: receiving the current 16mA, the emission current of 30mA (power 10dBm)
Working temperature: -25 to +75 DEG C
Working frequency: 430 MHz ~ 438MHz, the other frequency can be customized
Transmission power: +27dBm
Receiving sensitivity: -116dBm (data 0.6Kbps)
Data rate: 0 ~ 500Kbps
Frequency deviation: less than 10KHz
FIFO space: 64 bytes
The synchronous signal detection, configurable data packet structure
RSSI (received signal strength indicator wireless) function
Free channel assessment, link quality indication, RF wake-up function,
Support the function of frequency hopping
Automatic antenna, transceiver and switch control
Sleep function, support a variety of sleep mode
Sleep current: 200nA
Package: SMD
