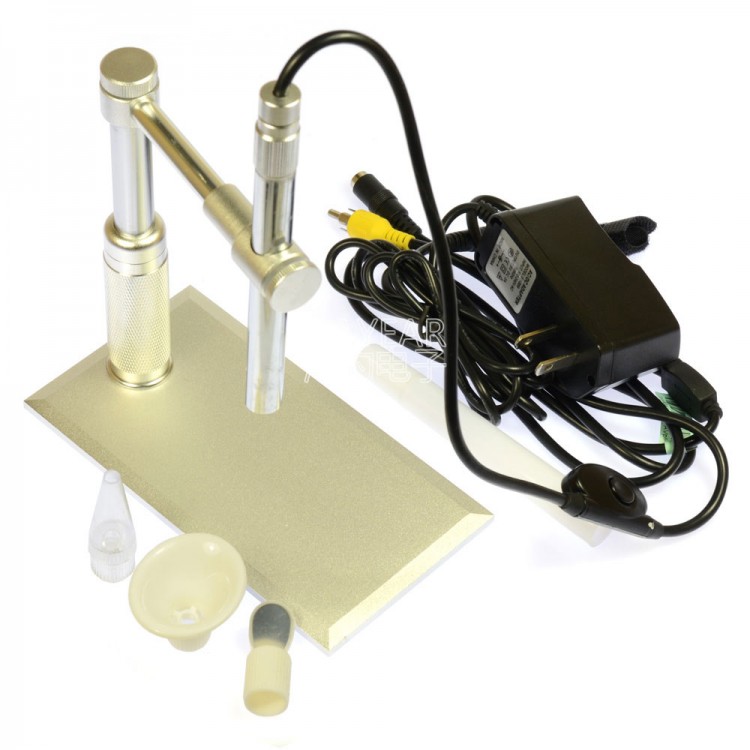

2.0MP 1-500X USB Digital Microscope Magnifier Endoscope with Stand for Circuit Board Repair
Feature:
The USB PEN MICROSCOPE is a new electronic product. It is a tubular imaging system consisting of an optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit connected to a computer. You can display the images collected by the USB PEN MICROSCOPE on the computer screen, store them on the computer, print them, or send them over the Internet.
As an USB microscope, it can magnify stamps, coins, antiques, insects, electric circuits, machines, fabrics, food, decorations, etc. and can also help visually impaired patients magnify small text for reading. Also it can be used as a PC camera.
SPECIFICATION:
- Magnification:1-500X
- Resolution:2.0MP
- Focus:Manual focus
- Focussing distance: 5mm - infinity
- Light source:8 LED,Adjustable brightness
- DSP: High power Digital Image Monarch Processor.
- Sensor: high-quality CMOS sensor
- Still Image
- Image format:JPEG
- Resolution: 1600*1200, 1280*960, 640*480, 480*320, 320*240, can adjustable per the monitor size
Video
- Format: AVI
- Resolution: 640 X 480 (High resolution)
- Colors: true color 24bit (RGB)
- Interface: USB1.0/USB2.0/USB3.0
- Frame rate: 20 frames/sec
- Power: USB (5V DC)
- Working platforms:Xp/Vista/Windows7/Windows8/Mac OS/Linux
- Lens size: 12mm(Dia)×120mm(L)
- Table size: 150mm(L) x 80mm(W) x 123mm(H)
Package incluede:
- 1 x USB PEN MICROSCOPE
- 1 x User manual
- 1 set of components
