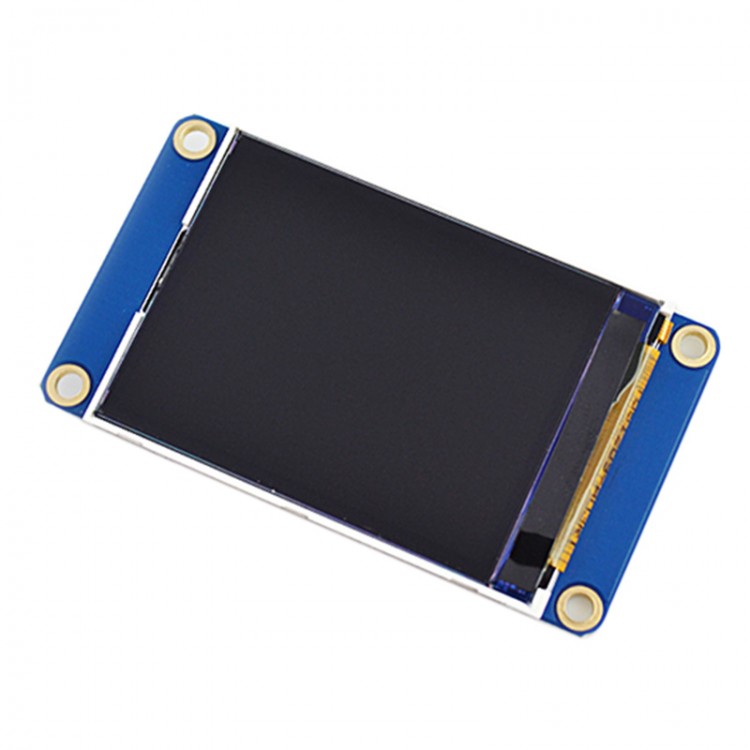

2.2 inch 16-Bit Screen Integrated Serial USART HMI Smart GPU TFT LCD Module 240x320 TJC3224T022-011N

2.2 inch 16-Bit Screen Integrated Serial USART HMI Smart GPU TFT LCD Module 240x320 TJC3224T022-011N

Description:
1. Serial port command control. The software completes the interface. While the MCU develops the efficiency through the interaction command between the serial port and device.
2. A variety of debugging way. It supports the serial port download and SD card download. It supports PC simulation debugging, as well as the synchronous debugging between the simulation and device
3. Automatic upgrading online.

Features:
- 16-bit true color RGB display
- Support multiple configuration control: Button control, progress bar control, text control, cursor control.
 - With character: You can customize any Windows font.
 - Support basic GUI command (draw point, draw lines, rectangles, etc.).
 - Support picture formats BMP, JPG, JPEG, PNG.
 - PC software supports automatic upgrade the device firmware upgrade automatically.
 - 100 grade backlight dimming, there is hibernation, sleep current 20mA, touch-wake function.

Parameters:
- Item Model: TJC3224T022-011N
- No Touch
- Resolution: 320 x 240
- Size: 2.2inch
- Communication: USART Serial interface
- Interface level: 3.3V CMOS (compatible with 5V)
- Operating voltage: 4.75V-7V
- Operating temperature: -20-70degree celsius
- FLASH space: 4MB
- Bam: 2048 BYTE

Package included:
- 1 x  2.2 inch 16-Bit Screen Integrated Serial USART HMI Smart GPU TFT LCD Module
