2-24S 4A Battery Balancer Active Balancer BMS Battery Equalizer Supports Bluetooth Connection APP
Description:

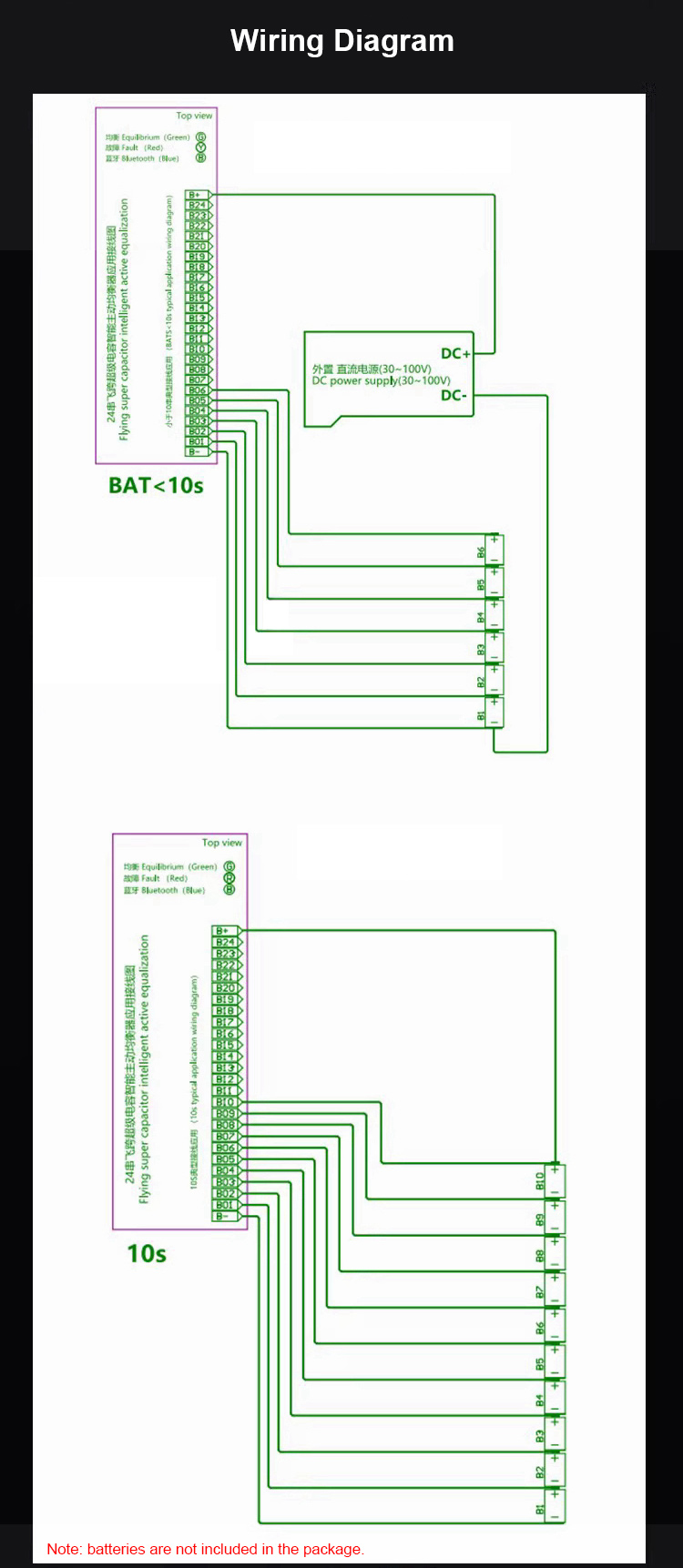

The battery balancer uses an energy transfer method, that is, a cell with a high voltage charges a cell with a low voltage. When the total voltage of the equalizer is lower than 30V, you need to connect it to an external power supply. It is recommended to use a 36V 1A DC power supply, please contact customer service for wiring details. After downloading the APP, remember to turn on the location function and location information and allow the APP to use the location information. If you do not turn on positioning, you will not be able to search for the equalizer. The balancing current is 4A.
Attention:
- Professional knowledge is highly recommended.
- The current is sometimes negative. When negative current is displayed, the battery is charging the capacitor. When positive current is displayed, the capacitor is charging the low-voltage battery cell.
Functions:
- Each channel enables 4A high-current active balancing
- It supports ternary, lithium iron and lithium titanate batteries
- It supports Bluetooth communication to connect to the mobile phone APP to view the situation, balancing status and balancing current of each cell. Users can see the voltage of each cell and whether the internal resistance of the equalizer line is normal
- There is a wrong wire protection board function, battery cell detection function, and fault alarm function
Application:
The battery balancer supports 10-24s and allows 1.8V-4.5V, i.e. it is suitable for ternary, lithium iron and lithium titanate batteries.
Specifications:
- Item name: Smart active balancer
- Balancing current: 4A maximum
- Suitable for: 2-24S
- Size: 140 x 128 x 22.5mm/5.5 x 5 x 0.9" (LxWxH)
Package Included:
- 1 x Set of Battery Balancer
Note:
- Batteries are not included in the package.
Three Indicator Lights:
- Blue: Bluetooth status indicator light. The indicator will stays on to indicate that the Bluetooth connection is successful; A flashing indicator indicates that Bluetooth is disconnected.
- Red: Fault status indicator light. The indicator will stay on to indicate an internal fault; A blinking indicator indicates that the battery test failed.
- Green: Working status indicator light. The indicator will stay on to indicate that balancing is complete; A flashing indicator indicates that the equalizer is working.
