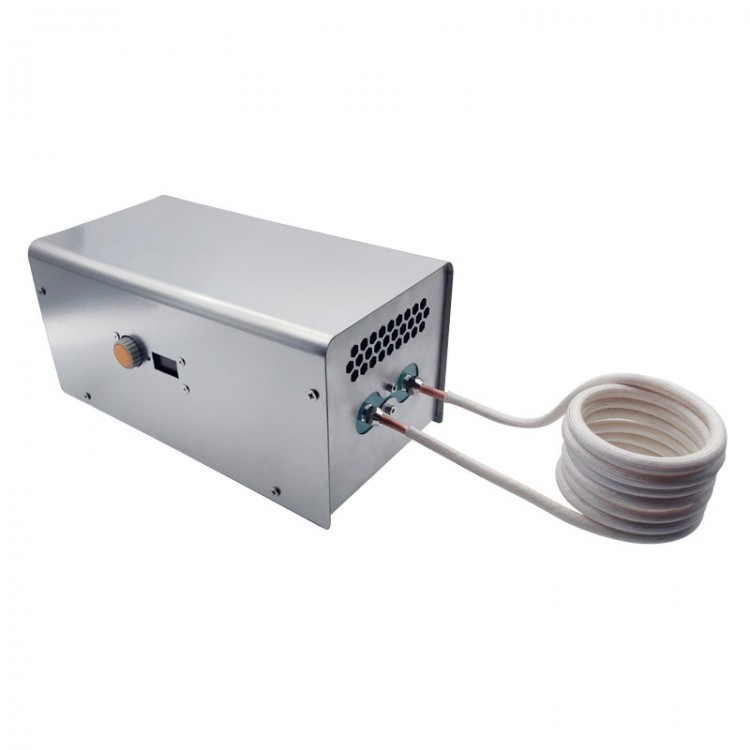

2.2KW ZVS Induction Heater Digital Induction Heater Tool Medium-High Frequency For 220V Input

2.2KW ZVS Induction Heater Digital Induction Heater Tool Medium-High Frequency For 220V Input

Description:
ZVS Induction heater enables fast, efficient, accurate, and repeatable method for non-contact heating of metals or other conductive materials.

Features:
- 220V power cord
- Stepless power adjustment in the range of 0.4-2.2KW. Monitor power via the display on the side plate
- Coil short-circuit protection, over-voltage and over-current protections ensure stable and reliable operation of the whole system
- Digital control helps you to monitor operating status
- Water cooling and wind cooling dramatically reduce the heat generated by internal heat sink and coil, making 24-hour operation possible

Package Included:
- 1 x Main Unit with Coil
- 1 x Power Cord
- 1 x Instructions
-1 x Graphite Container
-1 x Graphite Crucible
-1 x Quartz Crucible
-1 x Crucible Tongs
- 1 x Water Pump

Note:
- Please note that it only supports 220V input.
- If coil in other sizes are needed, please contact us for details and prices.

FAQ:
Q1: What is the maximum temperature?
A1: With the included 70ML graphite crucible (holds 1kg gold), it will reach to 1100℃ after heating for 5 minutes. After 10 minutes, it will be 1500℃. After 15-minute heating, it will be around 1600℃. Used with our coil specially designed for quenching, it can finish quenching process at 800℃ in one second to two or three minutes, which depends on the sizes of your processed parts.

Q2: What metals can it melt?
A2：With our 70ML graphite crucible, it can melt about 1000g gold, 500g silver, 500g copper, 300g aluminum, 200g iron separately (Not recommended for iron for it accelerate oxidation of the graphite crucible). Most metals can be melted in ten minutes. But melting time might vary due to different melting point and weights. Thank you for your understanding!

Melting Points:
- Iron: 1535℃
- Copper: 1083℃
- Gold: 1064℃
- Silver: 962℃
- Aluminum: 660℃

Q3: Can we adjust temperature?
A3: Yes. We can change temperature by the knob on the main unit. Please note that the actual temperature might be affected by materials, sizes, heating positions, heating times of processed parts.

Q4: Can it be used to weld copper pipes for air conditioners? Can it be used to weld a turning tool?
A4: Yes. Please tell us the size of your copper tube and turning tool. We can provide coils of appropriate size. Contact us for details and prices.
