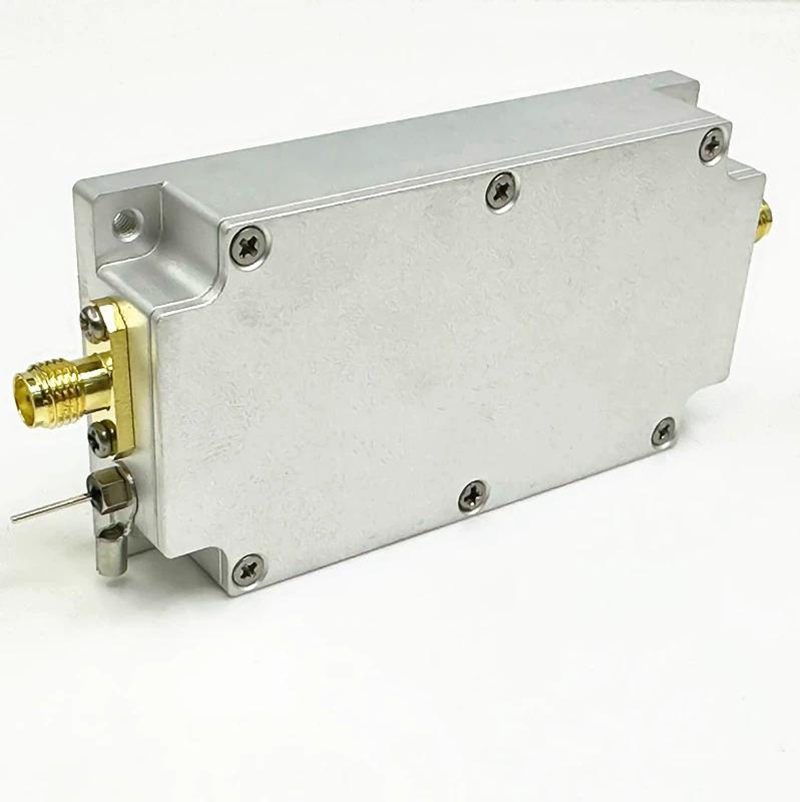

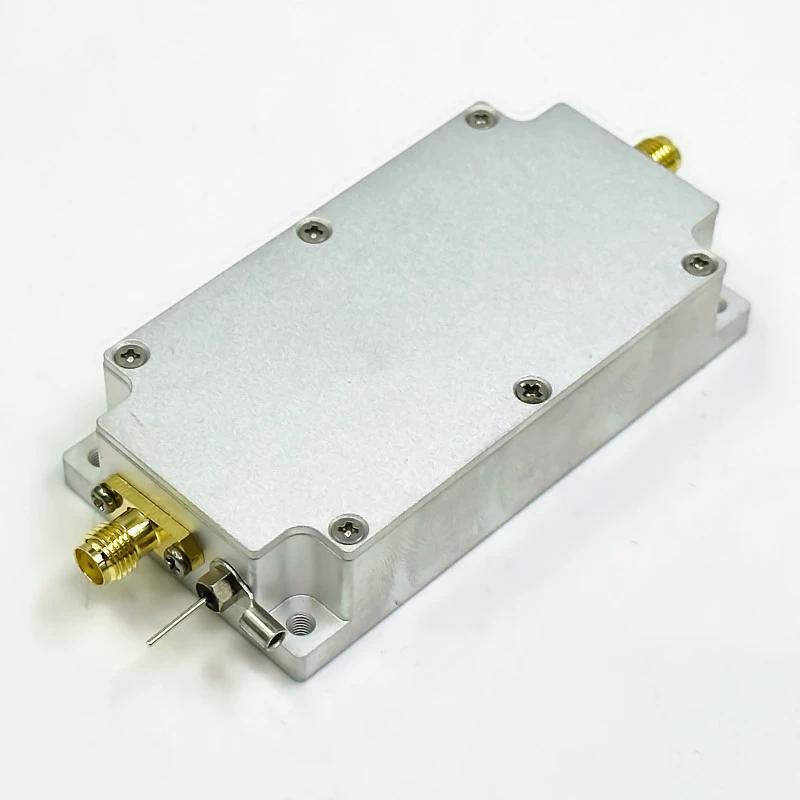

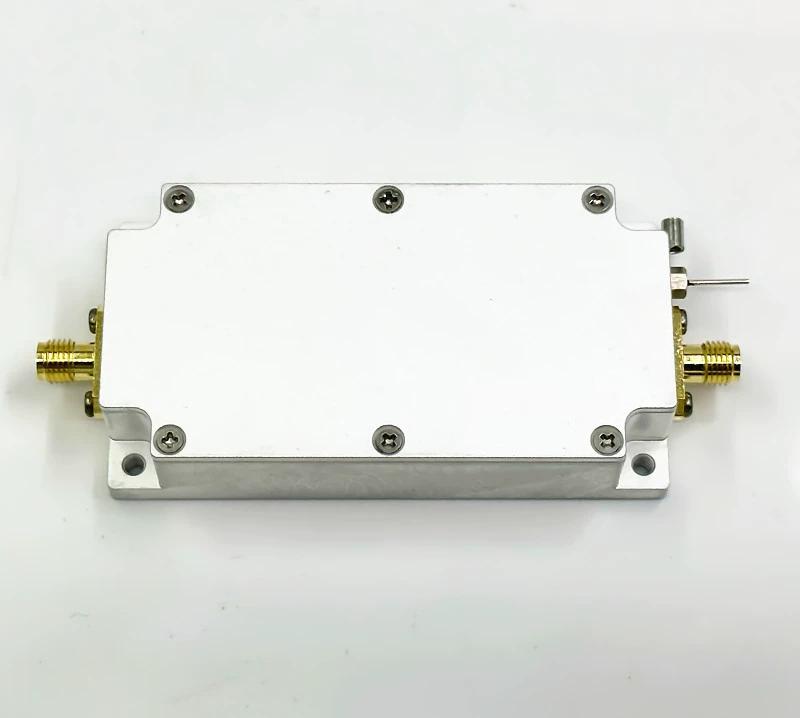

2.3-2.6GHz 8W 24V RF Power Amplifier Module with SMA Female Connector High Quality RF Accessory
Specification:
- Working frequency: 2300 - 2600MHz
- Working voltage: 24 - 26V
- Working current: 1 - 1.5A
- Amplification gain: 20dB
- Output power:
2.3G: input 17dBm (50mW), output 39.5dBm (9W typ.)
2.4G: input 17dBm (50mW), output 39.5dBm (9W typ.)
2.5G: input 17dBm (50mW), output 39.0dBm (8W typ.)
2.6G: input 17dBm (50mW), output 39.0dBm (8W typ.)
- Working status: CW continuous wave
- Connector type: SMA standard female connector
- Product size: 40 x 76 x 17mm (excluding the connector length)
- Net weight: 95g

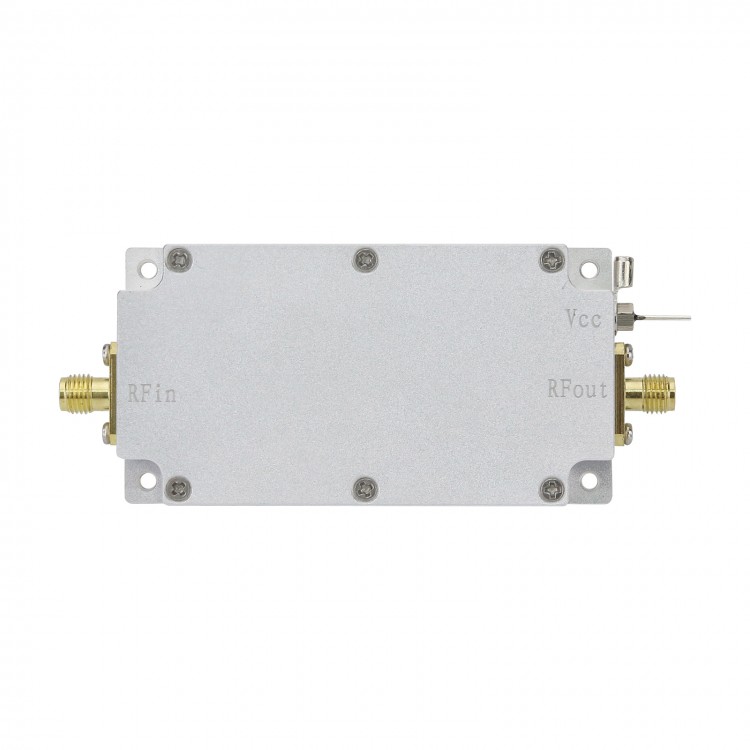

Connection Method:
- RFin: signal input
- RFout: signal output
- VCC: positive power supply
- Note: During installation, use close contact between the shell and other metals to assist in heat dissipation.
Package Included:
- 1 x Power Amplifier Module
Precaution:
- It is recommended to use linear power supply.
