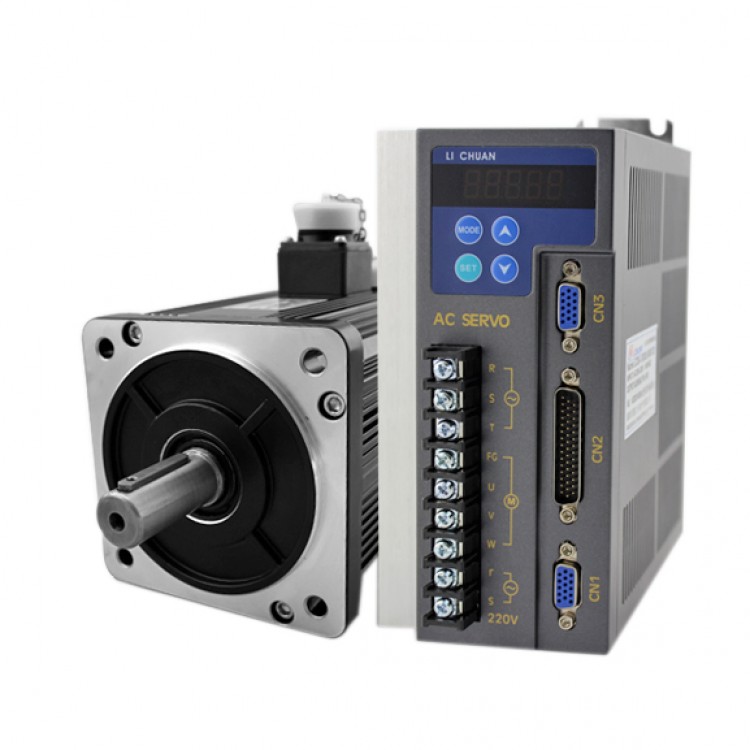

2.3KW Servo Motor Set 130mm Flange 15NM 1500rolls for Numerical Control System

2.3KW Servo Motor Set 130mm Flange 15NM 1500rolls for Numerical Control System

Specifications:
- Flange  size: 130x130(mm)
- Motor length: 241mm
- Shaft diameter: 22mm
- Driving voltage: 3phase 220V
- Rated torque: 15 N.M
- Rated speed: 1500 rolls
- Positioning accuracy: a wirre (0.01mm)
- Edcoder: Tamagawa 2500ppr
- Weight: 14.4g
- Matched driver: LC 2.3KW Servo driver

LC Servo motor naming rules:
LCMT - 02 L 02 Z C - 60 M006 30 B
LCMT--- product information
 02-------- 200W ( 04---400W /  07---700W /  10---1KW )
 L---------- motor inertia ( L---low / M---middle )
 02-------- sensing form ( 01---line saving encoder 2500     02---15 type encoder 2500 )
 Z---------- with brake ( N---without brake )
  C--------- oil seal and keyway ( A---only oil seal no keyway  B---only keyway no oil seal )
 60-------- seat NO.
 M006---  torque
 30-------- speed
 B---------  B series ( A--- A series / C--- C series )

LC servo driver naming rules:
LCDA - 02 30 02 - L B 6 22
LCDA--- product information
 02-------- motor power  ( 02---200W 04---400W /  07---700W /  10---1KW ... )
 30-------- peak current ( 20---20A / 30---30A / 50---50A / 75---75A )
 02-------- encoder information ( 01---line saving encoder      02---15 type encoder )
 L---------- motor inertia ( L---low / M---middle )
  B--------- driver series ( A---A series / B---B series / C---C series )
  6--------- seat NO. ( including 6  /  8  /  9  /  110 etc. )
 22-------- voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v )

Servo Driver Features:
1. Power Range: 0.2kw ~15kw
2. Input Voltage: AC 200V ~ 230V , one phase / 3 phases
3. Position / Speed control mode
4. With MODBUS communication performance(RS-485 / RS-422 / RS-232),ASCII and RTU communication protocol
5. Encoder: 2500ppr
6. Articles made to order: drag ,oil seal
7. Axis: Circular shaft / keyway

Package Included:
- 1 x 2.3KW Servo Motor
- 1 x 2.3KW Servo Motor Driver(LCDA235002-MB1332)
- 1 x Servo power line (3m)
- 1 x Servo encoder line (3m)
- 1 x Servo instruction book
