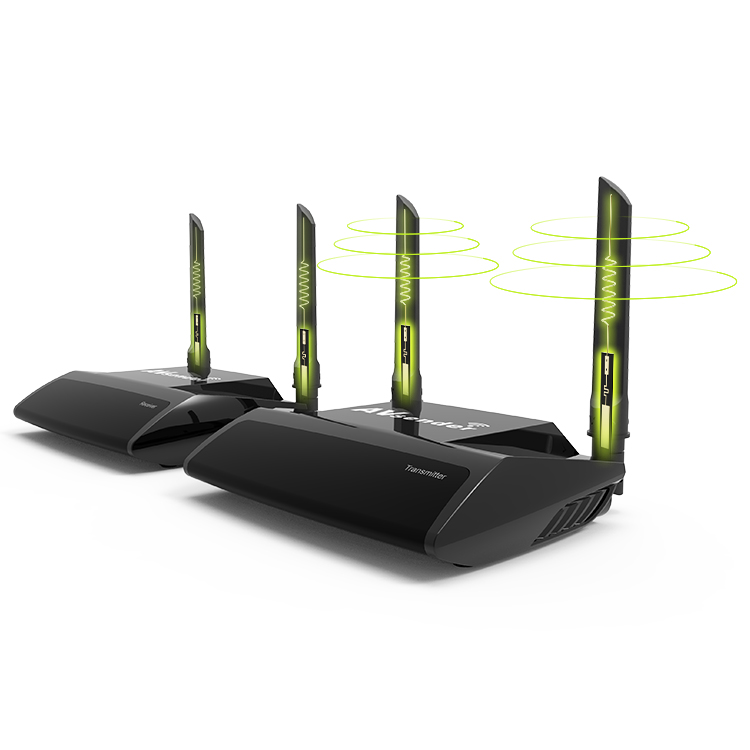

2.4/5GHz HD Wireless TV Transmitter & Receiver Audio Video Digital Sharing HDMI 1080P
Description:
The HD Wireless Video Transmitter PAT-590 is an electronic product that enables home video entertainment and wireless sharing. The product consists of Transmitter and Receiver. It adopts an intelligent 2.4/5GHz dual-band WIFI wireless real-time transmission scheme, which has the characteristics of long transmission distance, no splash screen, no snowflake, anti-interference and strong mobility. Audio and video signals such as DVDs, DVRs, IPTV, surveillance cameras, satellite receivers, digital TV set-top boxes, etc. can be transmitted wirelessly and received at the receiving end and input to the television for display. At the same time it supports the remote control and remote operation. Allows you to easily achieve high-definition audio and video home wireless sharing, enjoy free hifi audio-visual effects!
Features:
- The product consists of a transmitter and a receiver. It can transmit HDMI high-definition signals wirelessly from the transmitter to the receiver.
- The transmitter supports one HDMI signal input, and one HDMI signal output enables the signal terminal to watch simultaneously.
- HDMI resolution supports 720P ~ 1080P @ 50/60Hz, SVGA ~ WUXGA a variety of commonly used computer resolution.
- Adopt international common 2.4G/5G wireless dual-band transmission signal, faster transmission speed, stronger anti-interference ability.
- Adopting an external dual-gain antenna for ultra-long-distance transmission, the transmission distance can be up to 50-100 meters (it may be affected by the using environment).
- Support remote expansion of infrared remote control, which can control the signal source equipment at the receiving end.
- Pure hardware mode so it can be connected to your computer and no need to install drive. Support WEB configuration interface, simple and easy to use.
- Supports DVD, DVR, IPTV, surveillance cameras, satellite receivers, digital TV set-top boxes and other audio and video output devices, for remote control of DVD, DVR, IPTV, digital set-top boxes and other equipment.
- Compact appearance, exquisite fashion, product size: 158x128x37mm.
- The wireless module has passed the FCC certification of the United States and CE certification of the European Union.
Specifications:
- Model: PAT-590
- Material: Plastic
- HDMI Input /Output Port Standard: HDMI1.4/HDCP1.4
- Support resolution 720/1080P@50/60Hz
- HDMI audio format 1080P top quality
- HDMI maximum transmission rate 6.75Gbps
- Wireless transmission standard: IEEE 802.11a/b/g/n
- Operating Frequency: 2.4GHz, 5GHz ISM Band
- Max. Wireless Transmission Rate: 2.4G 150M, 5G 300M
- Wireless Transmitter Power (IPEX): 16±2dBm
- Max. Wireless Transmission Distance: 50-100m (open and close)
- Remote Control Frequency: 38KHz
- Input Power: AC 100V-240V 50/60Hz
- Output Power: DC 5V/2A
- Working Temperature: -10~+50°C
- Operating Humidity: 10-80%RH (non-condensing)
- Product size 158x128x37mm
- G.W: 0.9 kg
Package Included:
- 1 x Transmitter
- 1 x Receiver
- 2 x Adapters
- 2 x HDMI Cables
- 1 x User Manual
