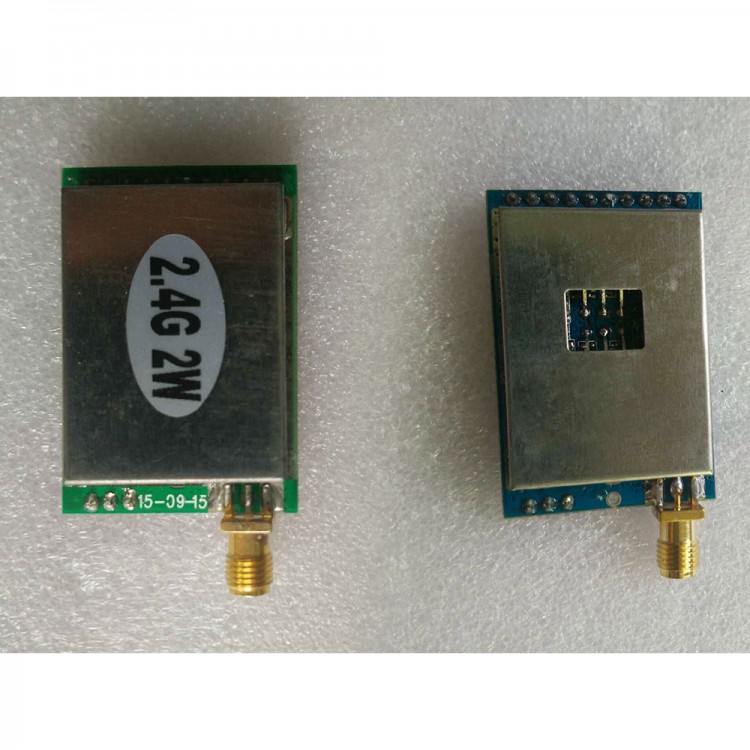

2.4G 2W Wireless Audio Video Transmitter and Receiver Module Set with Long Distance Transmission
Transmitter Module:
- Model: TX6733
- Unit: piece
- Working frequency: 2.4GHz
- 2 groups of frequencies with 8 channels to choose from, easily avoiding interference frequencies: CH1 2414/2490MHz, CH2 2432/2510MHz, CH3 2450/2390MHz and CH4 2468/2370MHz
- Modulation mode: Broadband FM
- Power: 2W
- Working voltage: 5V
- Current consumption: 600-800mA
- Dimensions: 45mm x 28mm x 10mm/1.8" x 1.1" x 0.4"
- Communication distance: 2000-3000 meters in open space
Receiver Module:
- Model: RX6788
- Unit: Piece
- Working frequency: 2.4GHZ
- 2 groups of frequencies with 8 channels to choose from, easily avoid interference frequencies: CH1 2414/2490MHz, CH2 2432/2510MHz, CH3 2450/2390MHz and CH4 2468/2370MHz
- Modulation mode: Broadband FM
- Working sensitivity: -93dBm
- Working voltage: 5V
- Current consumption: about 150mA
- Dimensions: 45mm x 30mm x 4.8mm/1.8" x 1.2" x 0.2"
- Built-in frequency phase-locked loop with high stability
- Low clutter leakage. It meets the US FCC and European CE (R&TTE) wireless certification standards
- Directly output audio and video signals
- Patch installation makes it convenient to use
Package Included:
- 1 x Transmitter module
- 1 x Receiver module
Packaging Details:
- Weight: 0.2kg
