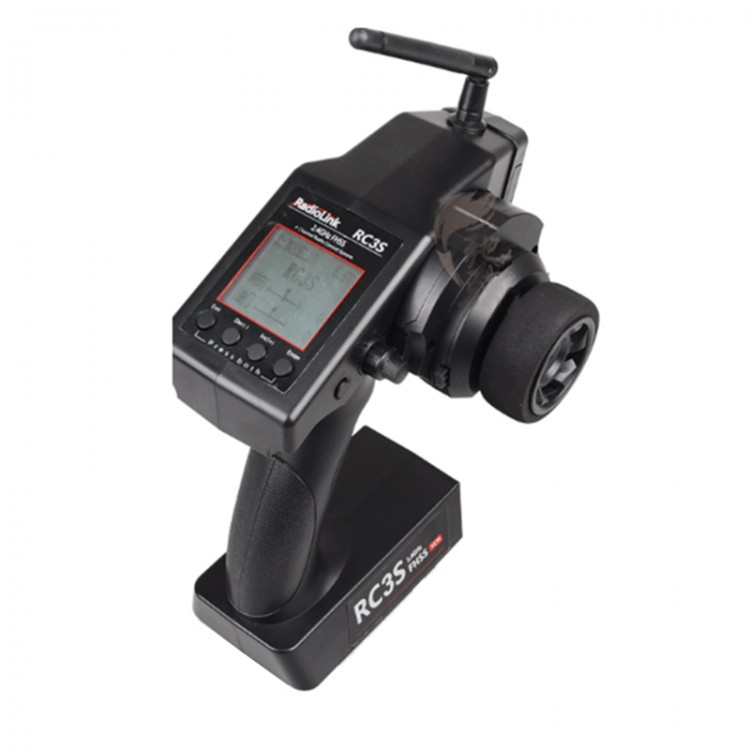

2.4G 4CH RC3S Remote Controller with R4EH-H Gyroscope Receiver V1.1 for RC Car Boat

2.4G 4CH RC3S Remote Controller with R4EH-H Gyroscope Receiver V1.1 for RC Car Boat

Features:
- 4 channel.
- RF range: 260m.
- Receiver support higher voltage, reach to 10.0V.
- Programmable mixed control, mixing control function: programmable any of the two channel mixing control. EPA is adjustable for the master channel.
- Steering operation curve adjustment (STEXP) and Throttle curve adjustment (THEXP) -adjustment shows in diagram simultaneously.
- Operate voltage: 4.6V-18V, use 2S~4S Lipo battery is fine! can set warning voltage yourself to protect Li battery over discharge!
- 2.4GHz FHSS system.
- Bilingual menu (English & Chinese).
- A.B.S (Anti-lock Braking System): adjustable braking start point, delay and cycle of the trigger, braking intensity also can be controlled.
- Graph view servo curve.
- View the servo curve graph when adjust the rate. It is very clear for customer to see the change.
- Three throttle curve: five point throttle curve. One point throttle curve and expo curve, all curve have graph view. Real-time display precise location of rocker.
- Fail-safe: when the receiver can't get the signal from the transmitter within 1 second, the receiver will start the Fail-safe function, the throttle will turned to zero, and the servo will keep the last instruction status.
- 10 model memory storage.
- Suitable for car, boat, tank, but not aircraft.

Specifications:
- Color: Black
- Antenna length: 106mm / 4.2in
- Channel: 4
- LCD screen: 128 * 64 resolution, LCD backlight
- Power supply: 6V-18V DC (4 * 1.5AAA or 2S-4S LiPo battery; batteries are not included)
- RF power: Under 10dbm
- Warning voltage: 4.6V
- Frequency: 2.4GHz
- Item size: 213 * 117 * 115.5mm / 8.4 * 4.6 * 4.5in
- Item weight: 420g

Frequency method
1. Be off the gun control and ESC
2. First plug the servo of remote control to the first channel of the receiver, plug ESC to the second channel
3. Use the needle to press button holes at the bottom of the receiver about two seconds, until the green light of the receiver flashes
4. Then keep the remote control on for a while, so that the receiver will automatically find the signal, when the signal is available, the receiver lights
5. Remote control to see the car wheels have left or right moved, then it is OK
6. If not successful, repeat step 1
On the frequency,the distance should not be too close, the frequency of the receiver has been set up to the out of control protection.

Package List:
- 1 * RC3S with R4EH-H/R4EH-G Gyroscope Receiver
- 1 * User Manual
