2.4G 5W Wireless Monitoring Wireless Audio Video Transmission Wireless Video Transceiver Transmitter Sender FPV ReceiverTX RX

2.4G 5W Wireless Monitoring Wireless Audio Video Transmission Wireless Video Transceiver Transmitter Sender FPV ReceiverTX RX

Product Description:

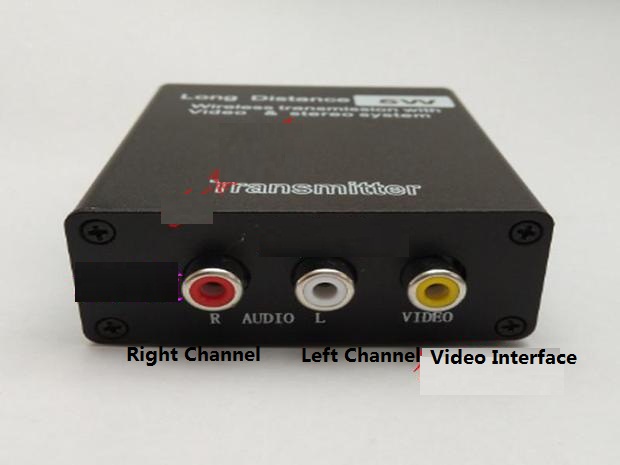

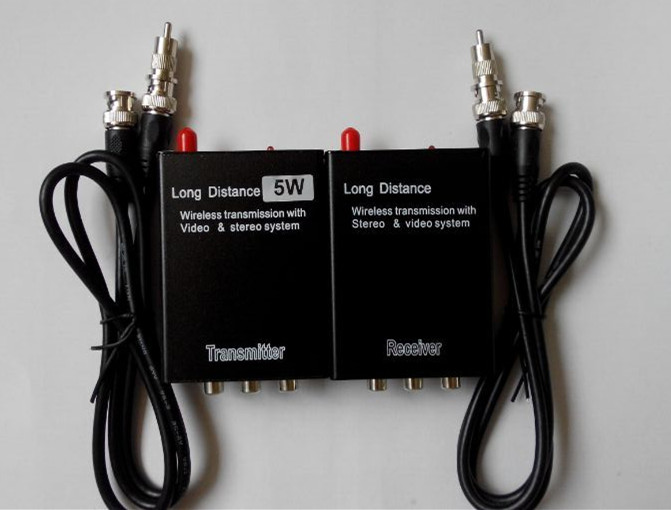

- BNCQ9 transform AV Video cable
- standard monitor interface
- Large power 5w enhanced edition.
- If you choose the 5w on or above the 26th floor lift install,it is cost-effective and the result will be good.

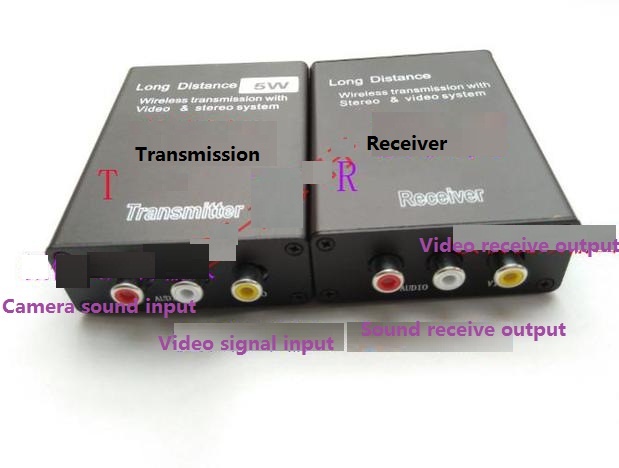

- It is a transceiver that can wireless transmit sound video signal simultaneously (It also can transmit separately). It is compatible for AV and HDCVI format.
- It can achieve wireless transmission the monitor camera,DVD,Set top box and other devices that output AV and HDCVI formate signal.
- It has eight channels to choose. modulation mode:FM /FSK,wireless video transmission frequency range:CH 1= 2414MHZ   CH 2= 2432MHZ    CH 3= 2450MHZ   CH 4= 2468MHZ,insuring clear reception of sound and image.It uses 2.4GHZ universal frequency and RF CMOS highly integrated IC,highly integrated power amplifier (PA),voltage controlled oscillator (VCO) and dual channel audio video in one modulation.
- Back stage power amplifier uses SIEMENS GaAs chip as power amplifier,excellent high power emission,long distance,stable image.Sound frequency is the biggest characteristic.If it is used in barrier free environment, wireless transmission distance is more than 1.5 kilometers and can receive clear and stable images.

Product Specification:
- Technical parameter input (1 way) Dual track sound input (2 way) ( 6.0MHZ NTSC  6.5MHZ PAL ) Transmitting power:32.5dBM Maximum consumption current:1600mA
- input voltage:12V     Receiver frequency :CH 1=2414MHZ  CH 2=2432MHZ   CH 3=2450MHZ  CH4=2468MHZ      Receiving sensitivity:-90dBm
- Maximum consumption current for transmitter receiver:160mA    input voltage：12V video output (1 way)
- Dual track sound output:(2 way) (6.0MHZ NTSC   6.5MHZ PAL )  2.4GHZ      Wireless video transmitter receiver  working tempureture：-10-120 degree
- RF radiation distance :barrier free environment,more than 1500meter
- Small size: 102x60x30mm
- good performance,good price,easy installation

Usage:
- Long distance monitor.long distance monitor,convenient wiring,low-cost,good appearance.
- Video sharing.The same video can be seen in different rooms and different floors even though there is a Set top box or DVD player.
It can be used in hospital,school,shopping malls, companies, warehouses, communities, families and other places

The advantages for wireless monitor device:
- Low cost :only one-time investment, without trenching buried pipe, especially suitable for outdoor distance and good decorated occasions
- In many cases, users are often limited by the geographical environment and work content, such as mountain, port and open the special geographical environment.These brings great inconvenience to cable transmission cable network wiring project. It is a long cable construction period  and even impossible to achieve. At this time, the use of wireless monitoring can get rid of the cable shackles.
- It has many advantages:short installation cycle, easy maintenance, capacity expansion, the rapid recovery of the cost.

Package included:
- 1x2.4G 5W Wireless Monitoring Wireless Audio Video Transmission Receiver
