2.4G CORONA DSSS 14-Ch RF Module RX System Futaba Transmitter T14MZ/T12FGH/T12Z

2.4G CORONA DSSS 14-Ch RF Module RX System Futaba Transmitter T14MZ/T12FGH/T12Z

Description:

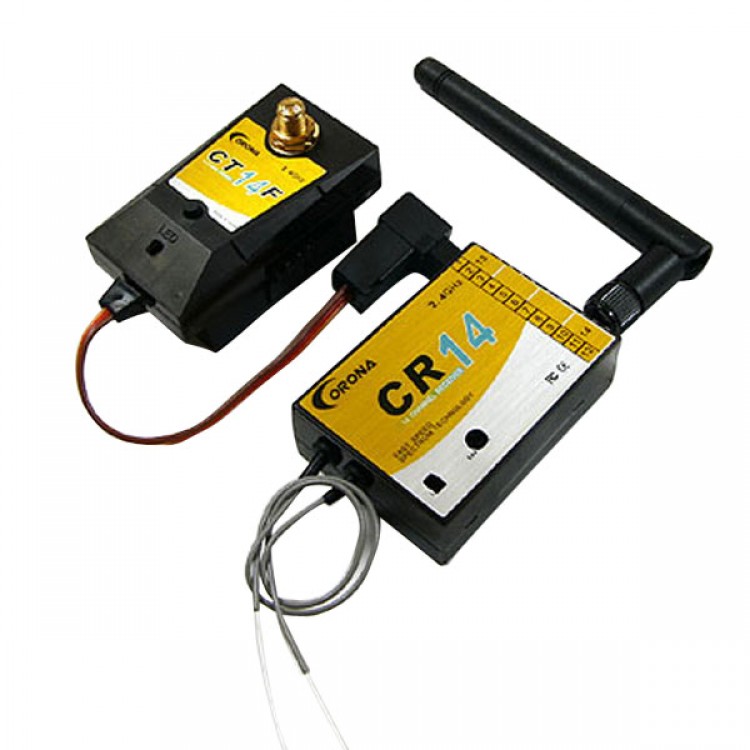

- 2.4G CORONA DSSS 14-Ch RF Module RX System Futaba Transmitter/CT14F+CR14
- The new lightweight, advanced technology unit has the following features:
- Extended operating range 1.5 km range, which has been tested in a real flying environment.
-  A 3dbi gain transmitting antenna ensures the wave lengths are evenly distributed throughout the transmitting horizon ensuring the stable signal.
- One-key user friendly setup mode.
- Perfect receiver antennas guarantee the plane receives the signal regardless of the maneuver or attitude.
- The unique receiver design makes the Corona module easy to install and ensures reliability.
- Corona's advanced needle design ensures the lightest possible receiver

- RF Module Specs:
- Type: CT14F DSSS
- Size: 54X30X25MM
- Weight: 27g
- Operating voltage: 5V (Futaba)
- Operating current: 150mA
- Output Power: <100MW
- Compatible with: FUTABA:T14MZ/T12FGH/T12Z

- Receiver Specs:
- Type: CR14 DSSS
- Size: 37.5X52.5X16MM
- Weight: 21g
- Range: >1500M
- Sensitivity: -100dbm
- Number of Channel: 14
- Operating voltage: 4.8V-6V
- Operating current: 40mA
- Compatible with: CT14F

Package Includes:
- 1 x RF module 2.4G CT14F
- 1 x antenna
- 1 x 2.4Ghz 14CH Receiver CR14

Binding procedure (please follow the sequence exactly as below, the sequence is very critical for a success binding):
-  Connect the Corona 2.4G module to the trainer port of the transmitter.
-  Switch on the transmitter while holding down the binding button of the module.
-  Power on the receiver while holding down the binding button of the receiver, LED will blink twice.
- Switch off the receiver and transmitter.
- Repower on the receiver.
- Repower on the transmitter. (The receiver MUST be powered on before the transmitter)
