2.4G Micro Flysky Compatible Receiver AFHDS 2A IBUS PPM
Specification:
‐Item Name: FS82 Micro 2.4G receiver
‐Channels: PPM 8CH / IBUS 10CH
‐Frequency range: 2.408‐2.475GHZ
‐2.4GHz system: AFHDS 2A
‐Work Mode: IBUS or PPM
-IBUS connector: 1.0 SH 3pin plug
-PPM connector: Solder pad
-Failsafe function: Support(Only IBUS Mode)
‐Transfer method: FHSS
‐Antenna length: 30mm
‐No ground interference ( Transmitting and receiving 1 m from the ground): >200m
‐Working current: 40mA
‐Size: 20*13*4.5mm

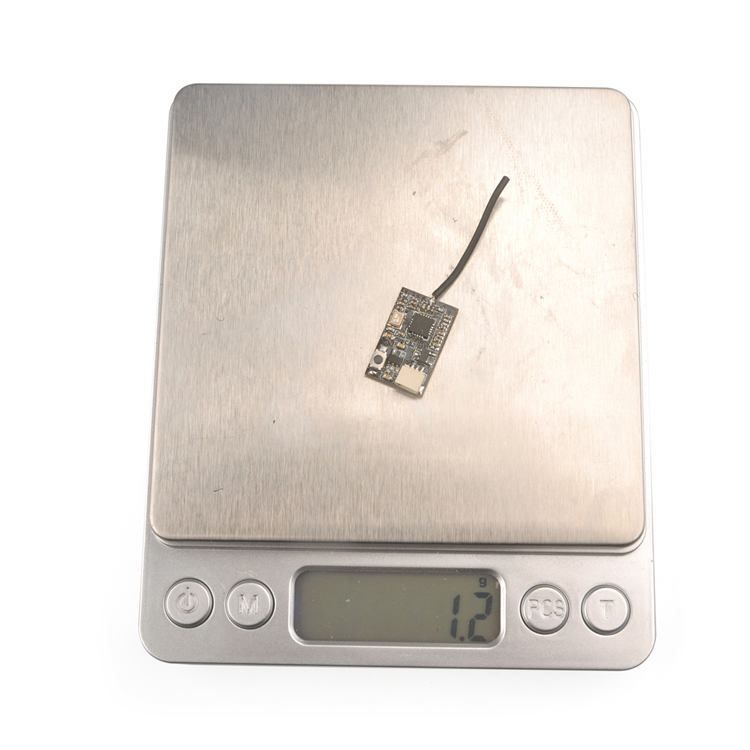

‐Weight: 1.2g
‐Compatible Transmitter: Compatible with FS‐i4, FS‐i6, FS‐i6S, FS‐i6X, FS‐i10, FS‐GT2E, FS‐GT2G, FS‐GT2F,Turnigy Evolution

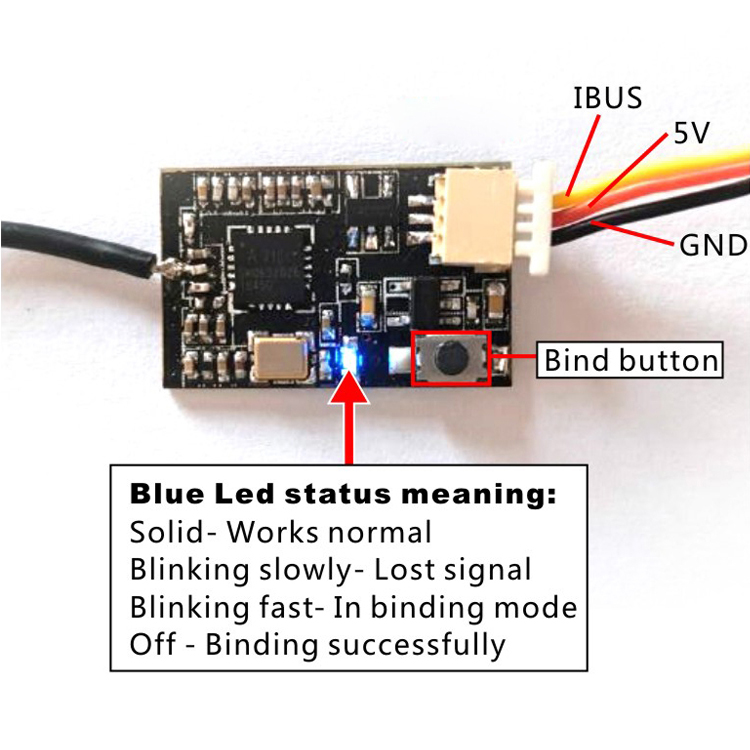

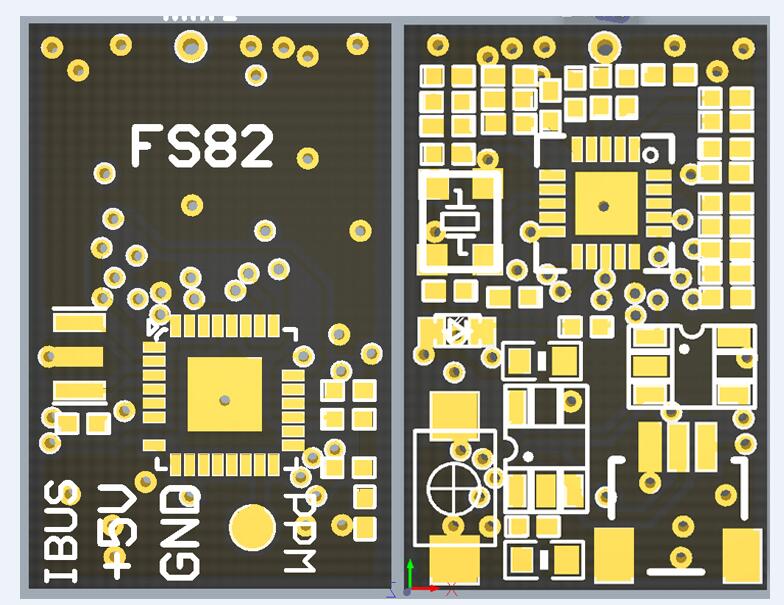

Pin-out Diagram:
Binding Procedure:
‐ Connect the battery to the receiver while holding the binding button on the board ,the Blue LED will blinking fast, this indicates the Receiver is in binding mode. Then release the binding button.
‐ Turn on your radio and Set receiver mode to AFHDS 2A, then get your radio into binding mode. The blue LED on the Receiver will turning off for a second and then starting to blinking slowly, this indicates binding successfully.
Package list:
-1 x 2.4G Micro Flysky compatible receiver AFHDS 2A IBUS PPM
