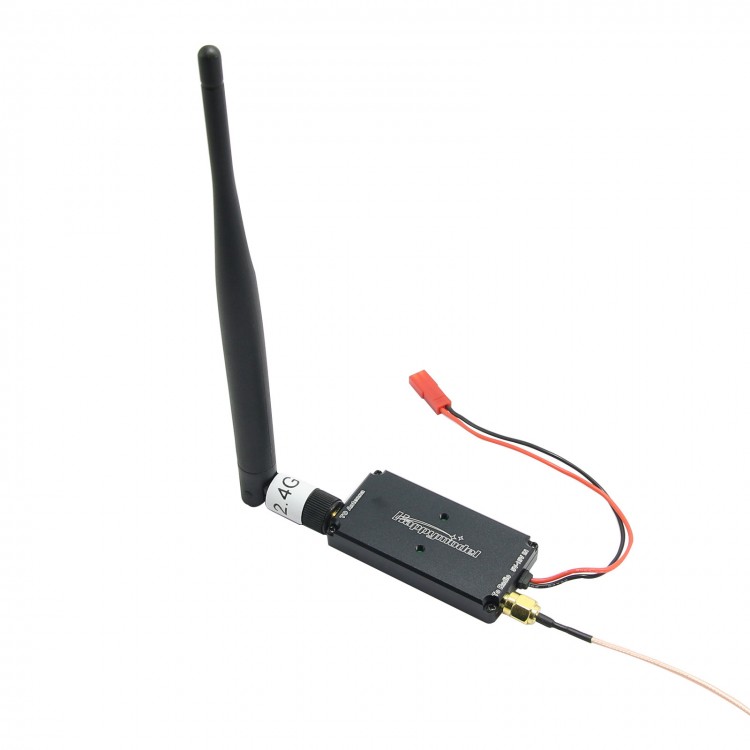

2.4G Mini Signal Amplifying Remote Control Extended Distance TX for FPV Photography
Description:
- This ampflifier is specially designed for remote control model, light weight, smallsize, good heat radiation, enough power
- Adopting wide voltage input design, 5-15V input
- Users can use both extenal power and TX power to supply power
- Adopting CNC aluminum alloly shell, have good heat radiation effect
Parameters:
- TX gaining: 11dB±1.5dB
- Noise figure: ≤3.0dB
- Input power range: 4dBm-20dBm, max TX power: 33dBm(2W)
- Dimension: 62*32*10mm
- Weght: 36g (Antenna not included)
- Working voltage: 5-15V
- Working current: ≤400ma
- Temperature: -20---40degree
- Working indicator light: blue
- Input terminal mode: external RP-SMA
- Output terminal mode: external SMA
Note: Normally, the amplifier gives out heat when working. This amplifier has protection circuit, support no antenna when power on, but please be sure put on antenna when using.
Installation description:
- If your 2.4G remote controller antenna and high frequency head is detachable, then it can be used, If not, you need to remove high frequency head or remote controller .
- Note: this amplifier is suitable for users with some basic electronic knowledge, and will need drill, welding, leading wires. If you don't know how or change the remote controller, please do not buy it
Package includes:
- TX x 1
- 2.4G 5dB Antenna x 1
- Cable x 1
