2.4G RGB Led Controller 12V RF201 for LED Strip Lamp with RF Touch Screen Reomte

2.4G RGB Led Controller 12V RF201 for LED Strip Lamp with RF Touch Screen Reomte

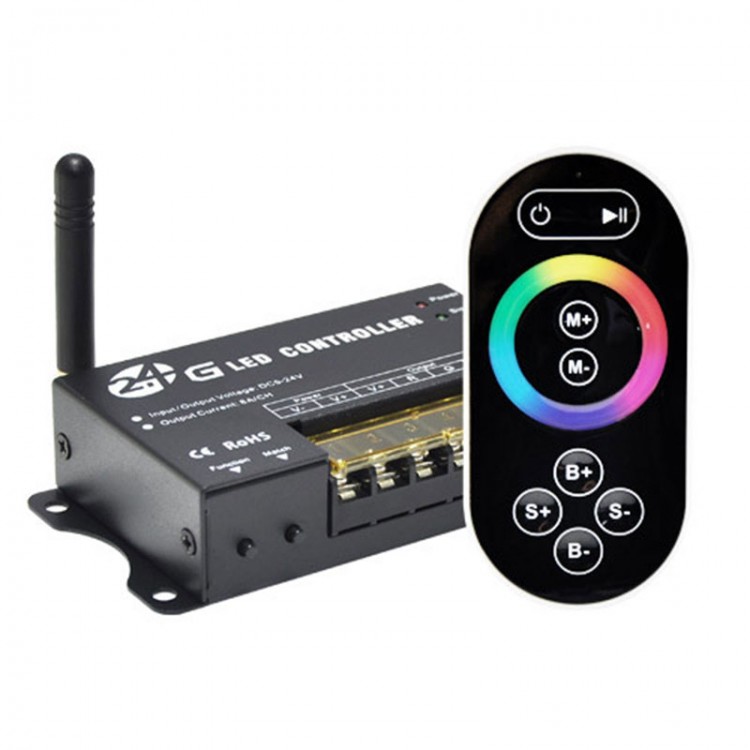

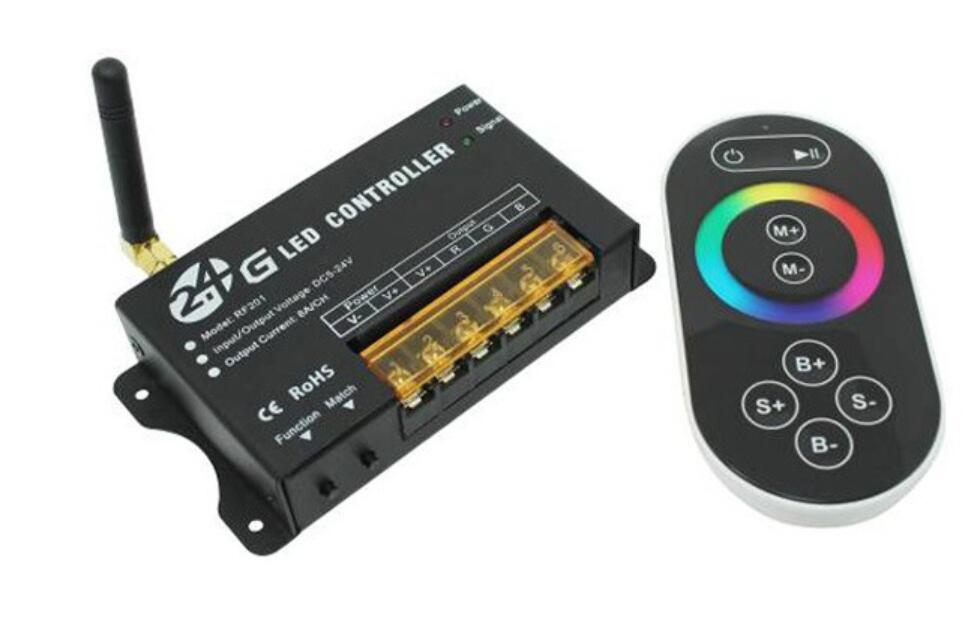

Product Description:
- 2.4G controller is newly introduced wireless high-power LED controller.It equips with touch remote control,touch remote control adopts high precision capacitance touch control technology,you can select the color you need by one button.
- It is convenient and easy.Each controller has a globally unique address code,in order to prevent confusion caused by controlling repeated address code.Each controller can be equipped with four remote controls,can achieve multiple controllers synchronization control.
- It is used for controlling a variety of lamp whose source of light is LED.For instance,point source of light,flexible light strip, wall washer lamp,glass wall light etc.It has many advantages such as convenient to connect, easy to use and others.According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.

LED Controller Parameters:
- Working temperature: -20-60C
- Supply voltage: DC5V-24V
- Output: 3 channels
- Connection mode: common anode

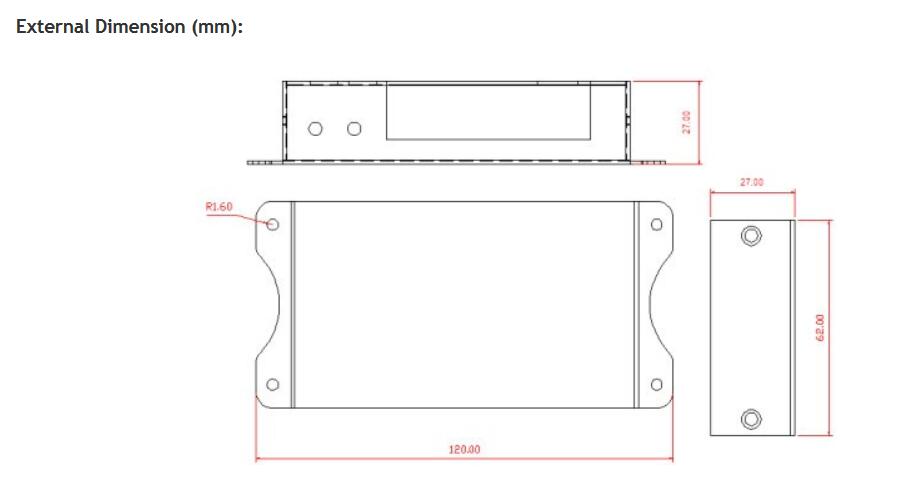

- External dimension: L120ΧW62ΧH27mm
- Packing size: L185ΧW145ΧH52 mm
- Net weight: 226g
- Gross weight: 320g
- Static power consumption: <1W
- Output current: <8A (each channel)
- Output power: 12V:<288W, 24V:<576W

Touch Remote Parameters:
- Working temperature: -20-60C
- Power supply mode: AAA * 3
- Supply voltage: 1.5V * 3
- Transmission frequency: 2.4Ghz
- Standby power consumption: 0.015mW
- Standby current: 60uA
- Working current: 200uA
- Emission current: 10mA
- Remote distance: about 30m
- Standby time: 6 months
- Remote control weight: 94g

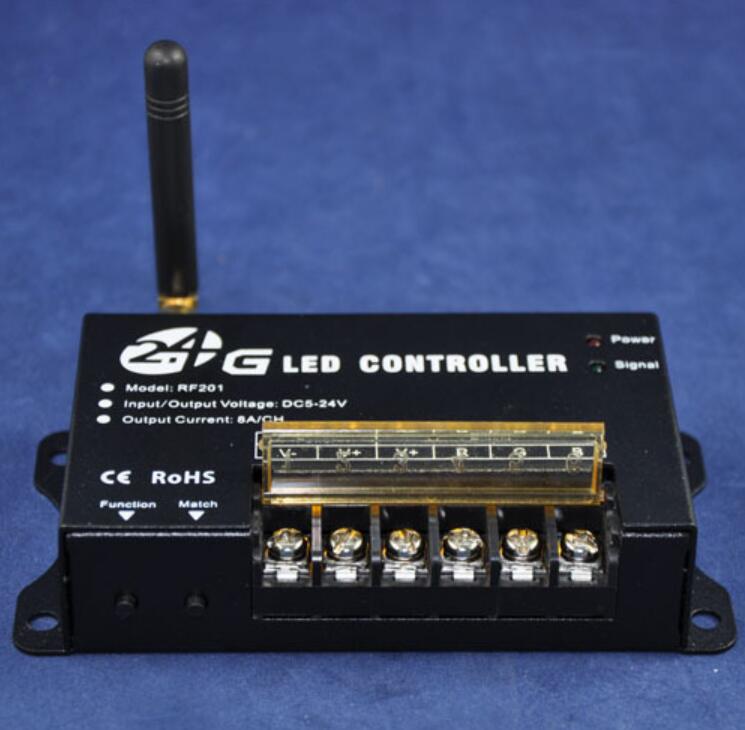

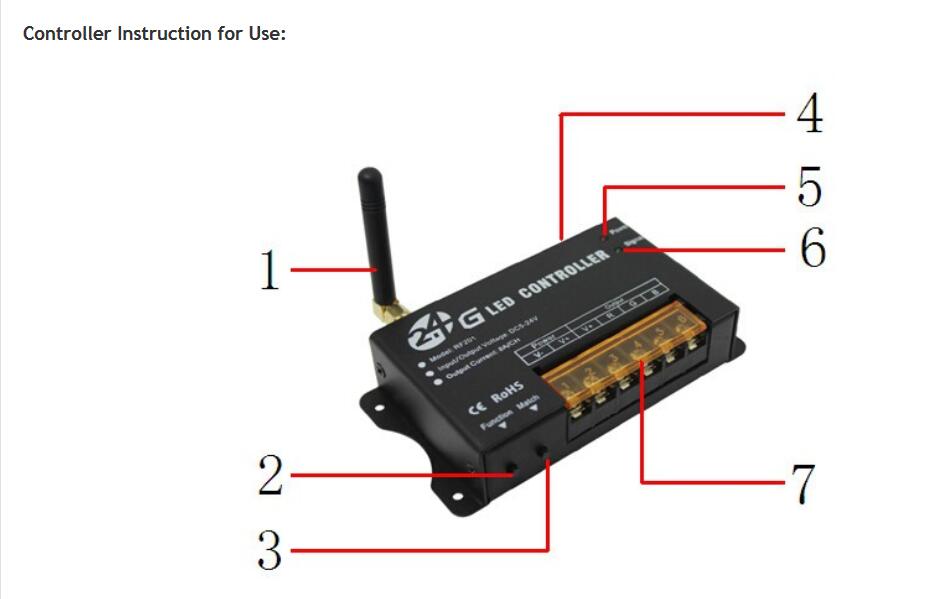

1.Antenna: 2.4G remote control signal receiving antenna;
2.Function: on/off and mode key, long press the button, you can turn on/off the output of controller, short press the button, you can switch the mode;
3.Match: match code key, refer to 4 for use methods; clear code, in the process of using controller, if you no longer want to use the remote control that already code, then you can achive it by clearing code, methods of operation: controller is powered off, press and hold "Match" key, then power on, test it with remote control, if you could not control with the remote control, indicates the operation is successful, otherwise repeat this operation.
4.DIP: It is used for matching four groups of address codes of the controller.
5.Power: power indicator, it lights when connected with external power supply;
6.Signal: RF signal indicator, it flashes when receiving correct remote control signal;

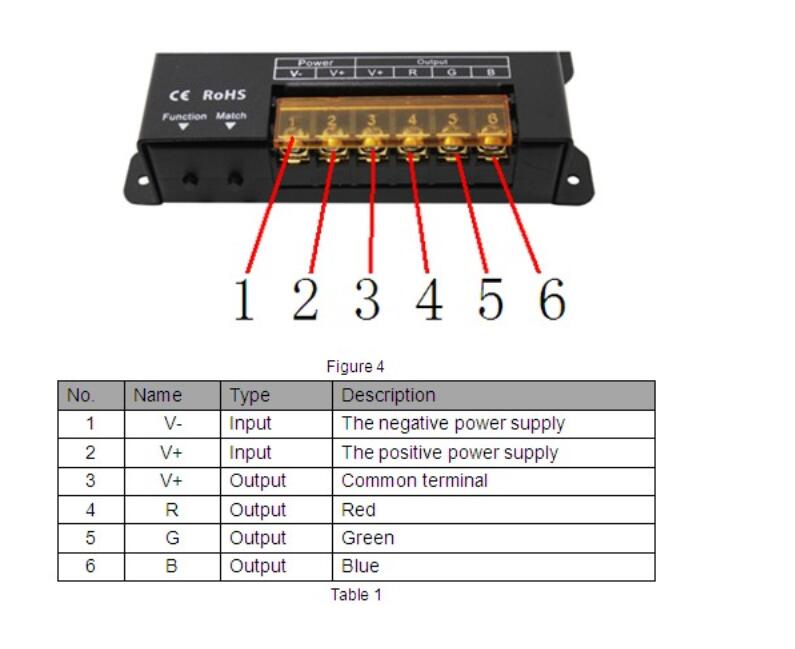

7.Input/ Output interface: the controller power supply input and load output port, please refer to Figure 4 and Table 1 for detailed description.

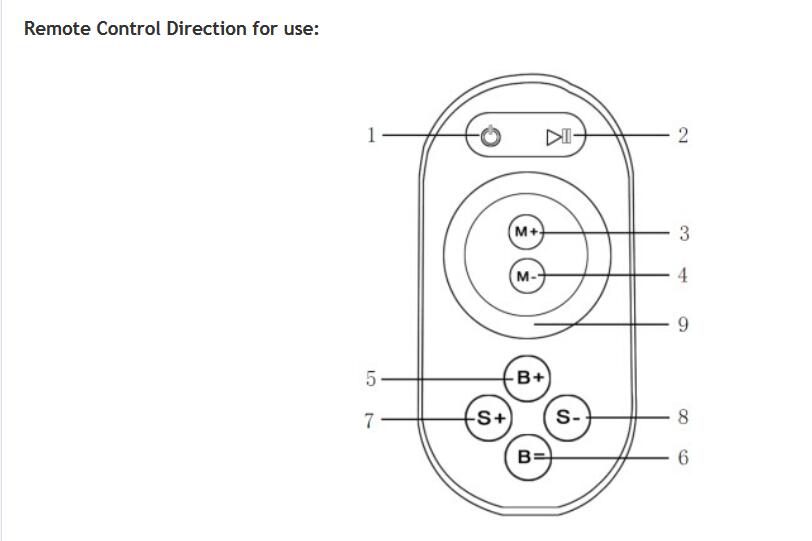

1.on/off key  2. pause key  3. mode+  4. mode-  5. brightness+  6. brightness-  7. speed+   8. speed-   9. color pulley key

Typical Application:

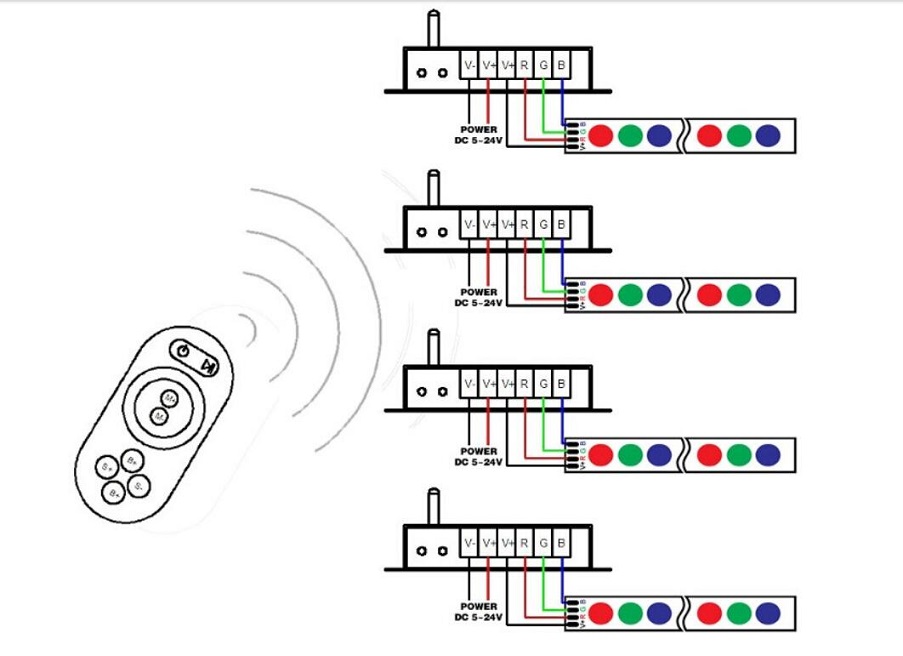

The controller can achieve synchronous control, that is one remote control can control multiple controllers at the same time, to achieve synchronous control function. The series 2.4G controllers can be equipped with four remote controls, easy for user to use. As shown in Figure 7, one remote control can control four controllers at the same time (not only can control four controllers simultaneously, as long as the controller is in the emission range of remote control, it can be controlled)

Remarks:
1.Connect the load wire at first,following by the power wire;Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.Power supply voltage range is DC5~24V,more than voltage range maybe burn out the controller.
3.When not use touch remote control for long time,we suggest you to take down the batteries.

Package List:
- 1 x LED Controller
- 1 x RF Touch Screen Reomte
- 1 x User manual
