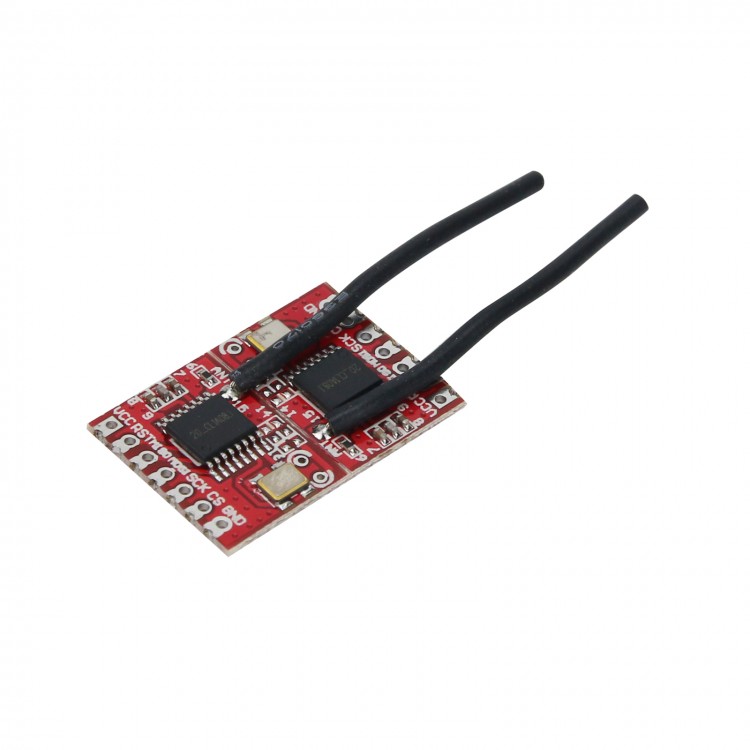

2.4GHz Wireless Transceiver Module Transmitter Receiver Anti-Interference Low Power Consumption 150M
Description:
With a remote control distance of 150m, cost-effective 2.4G wireless module is suitable for the development and application of toys and model airplanes.
Specifications:
- Model: GWB
- Transceiver Type: Transceiver integrated
- Working Voltage: 3-3.6V
- Power Consumption: normal working current 15mA, instantaneous transmitting current 42mA
- Transmission Distance: 150 meters
- Module Interface: 2mm pin spacing, 7P, supporting IIC and SPI
- Module Size: 15.4 * 11.4mm. Antenna length 33mm
- Weight (1 pair): 1.8g
Applications:
- Every module can transmit and receive, with remote control distance 150M.
- Suitable for wireless data transmission, wireless remote control of car models, ship models, airplane models and other occasions.
Development Materials:
The wireless module can be equipped with our small N76E003 system board as a DEMO board. DEMO board has reserved the position of the wireless module. We can directly weld it and burn it into the sample program to verify. Download the sample program and other information: https://pan.baidu.com/ s / 1ULuaCK8CPD1PsOhhiMmebA Password: ea3z
Package Included:
- 1 x Pair of Transceiver Modules
