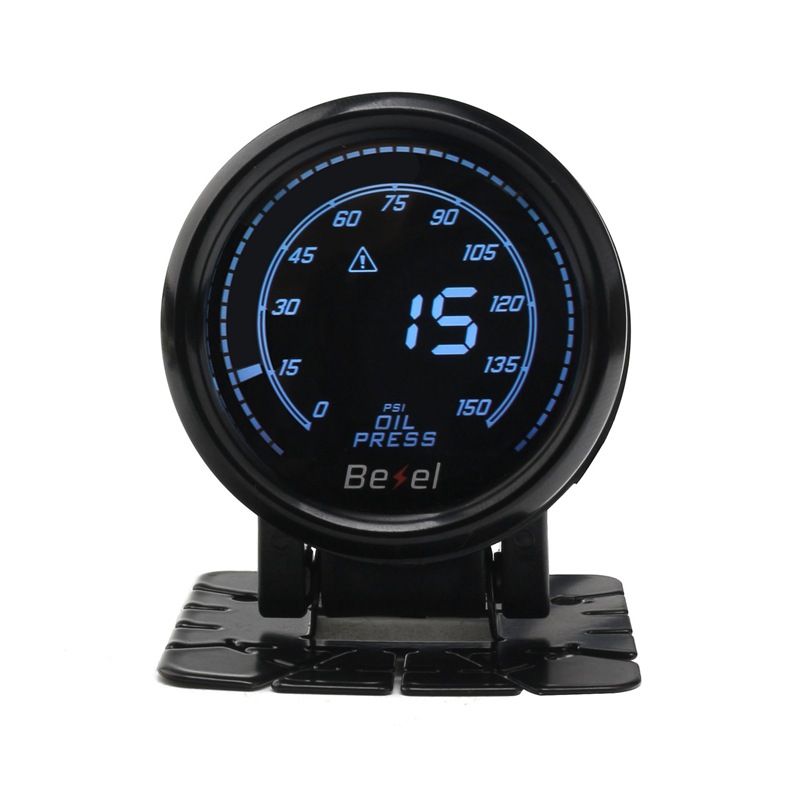

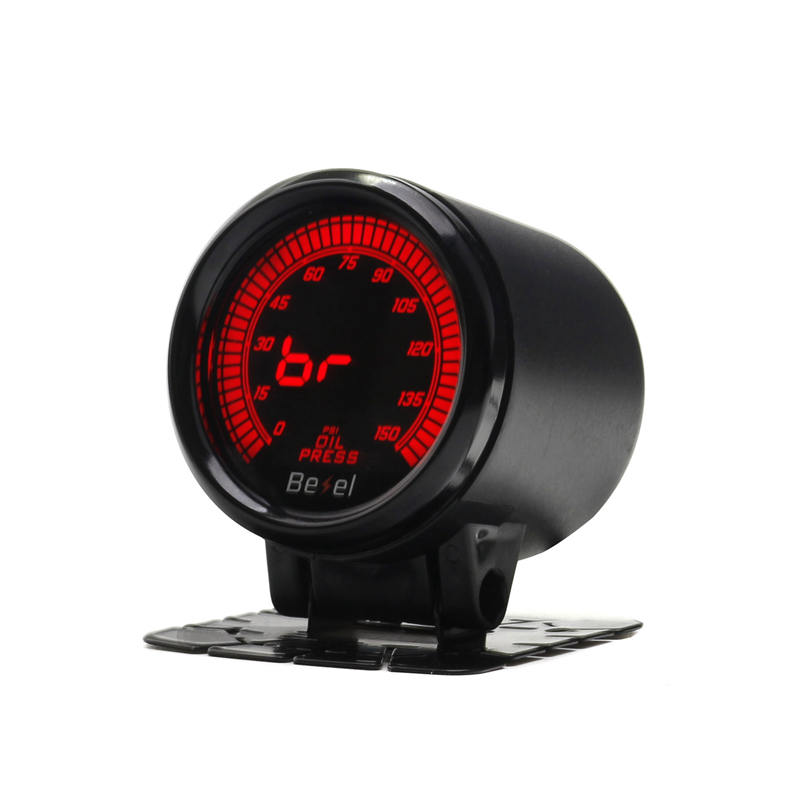

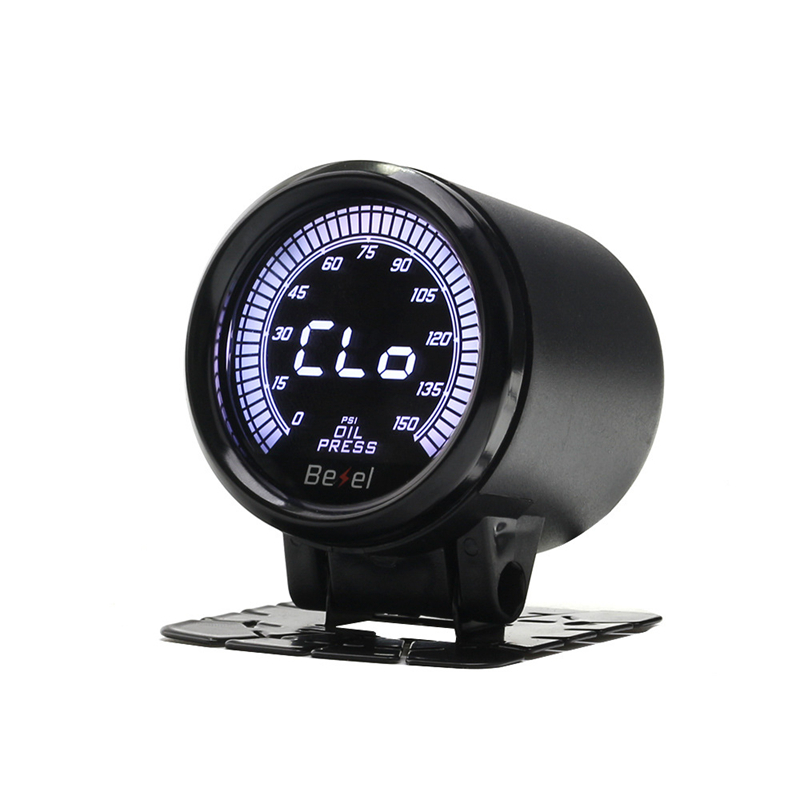

2" 52mm Fuel Pressure Gauge Universal 52mm Oil Pressure Gauge Digital Display 0-150PSI OS090 12V

2" 52mm Fuel Pressure Gauge Universal 52mm Oil Pressure Gauge Digital Display 0-150PSI OS090 12V

Specifications:
- Model No.: OS090
- Item Name: 2"/ 52mm Fuel Pressure Gauge
- Materials: Plastic + Aluminum + Iron + Copper
- Voltage: 12V
- Diameter: 2"/ 52mm

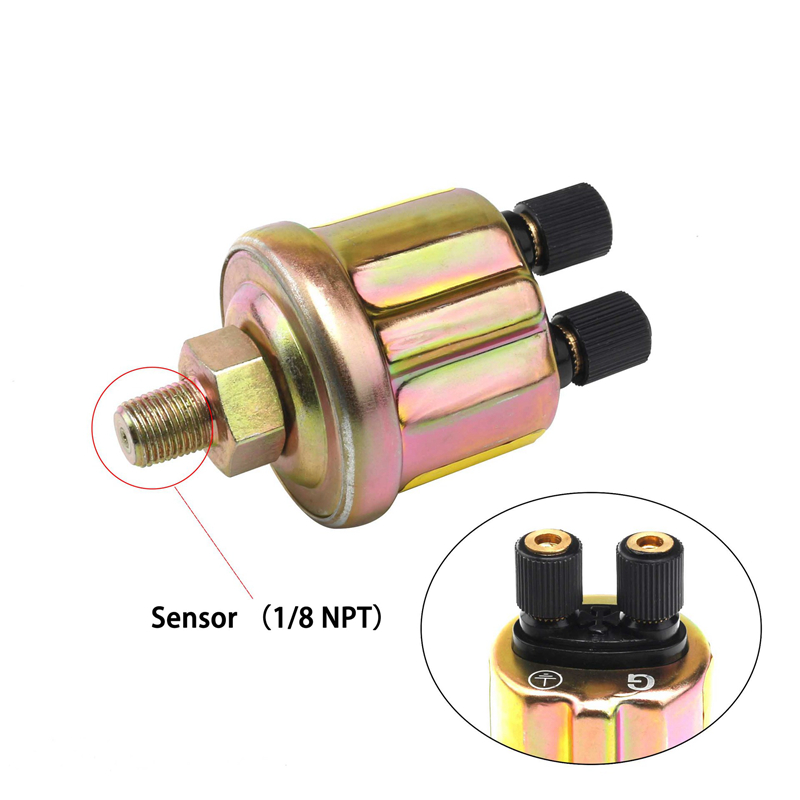

- Sensor Thread Size: 1/8" NPT
- Reading Range: 0-150PSI
- Style: Digital LED Readings

Features:
-2" (52mm) diameter gauge.
- Black dial surface when the ignition switch is off.

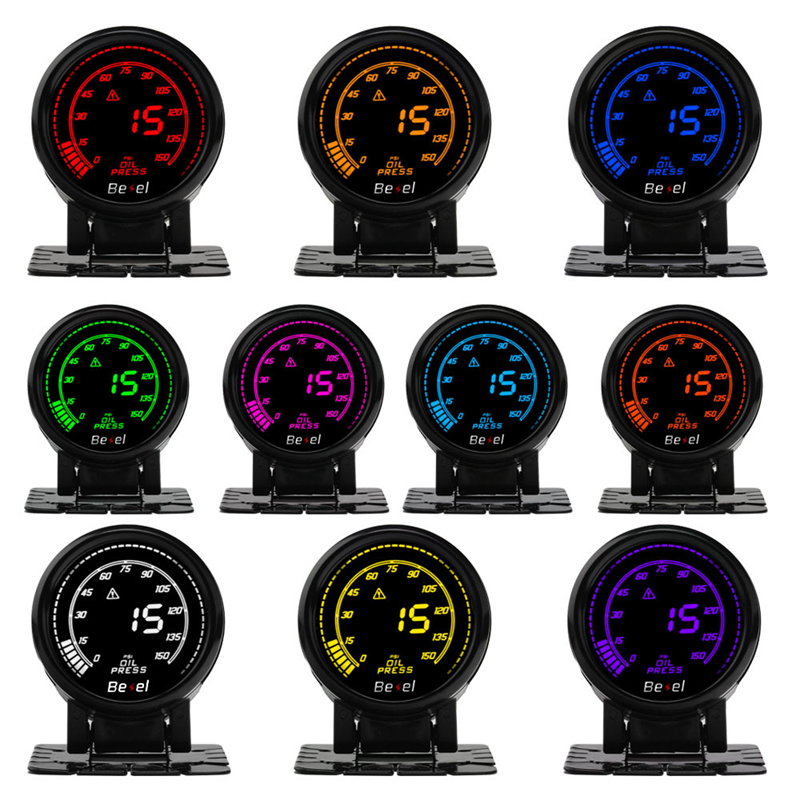

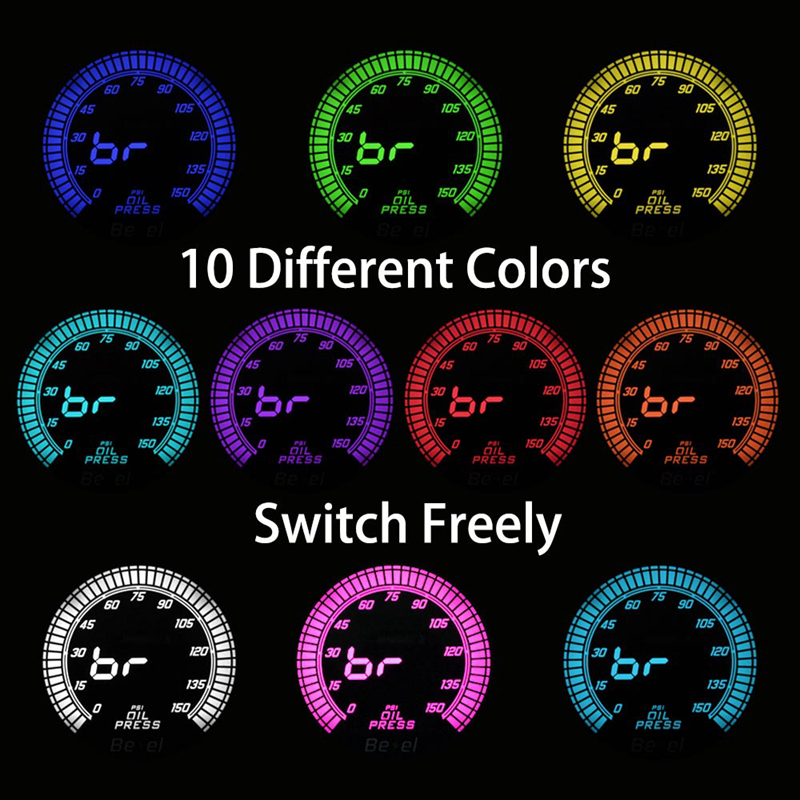

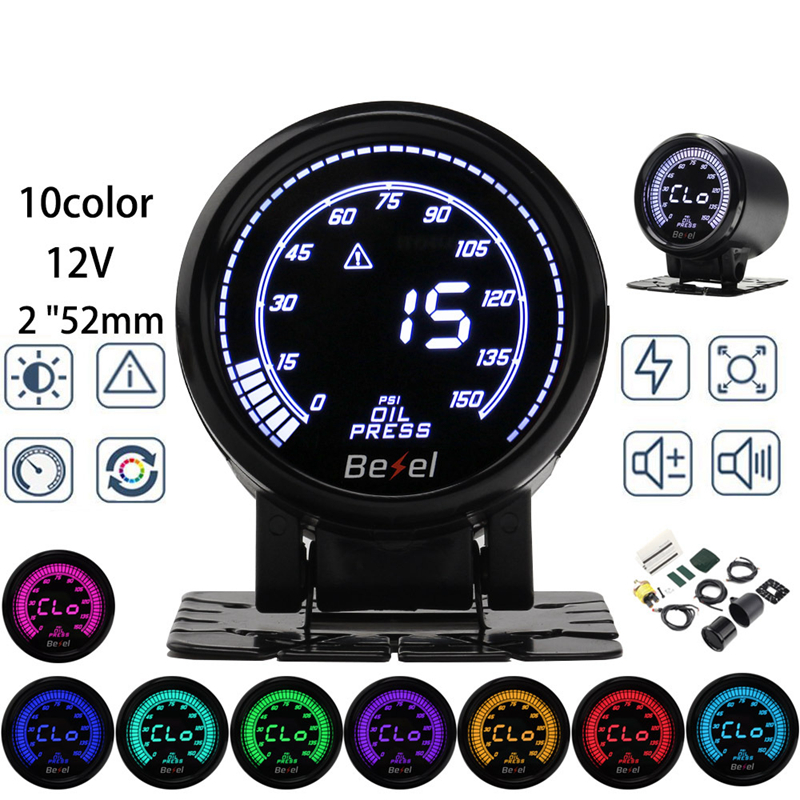

- 10-color backlight to meet your needs and settings can be memorized in day and night modes.
- 6-level brightness and settings can be memorized in day and night modes.

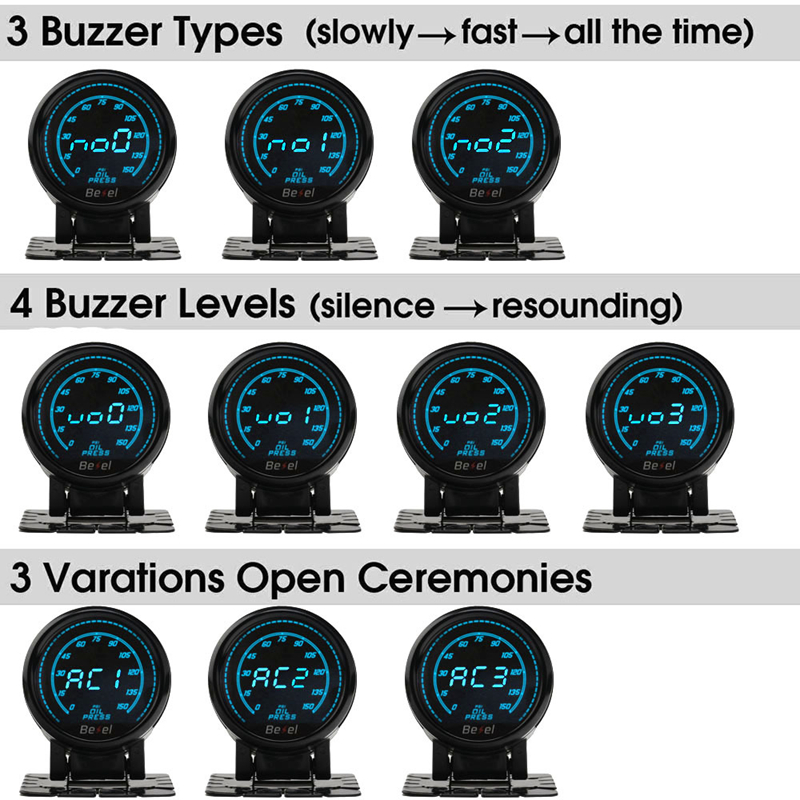

- 3 types of buzzers to meet your various needs.
- You can select 4 buzzer levels.
- You can choose from 3 different open ceremonies.

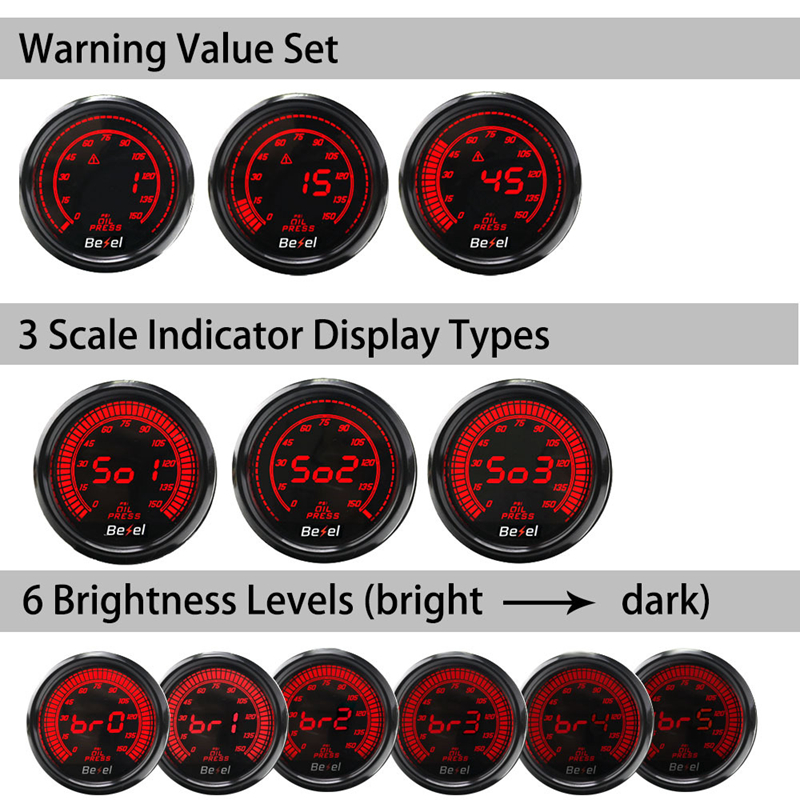

- Warning values (arbitrary) can be set, and the warning buzzer can be selected from three variations or turned off.
- 3 different types of indicator movements.
- Data (peak and warning values) obtained during driving can be stored and peak values can be viewed and cleared.

Common Button Operations:

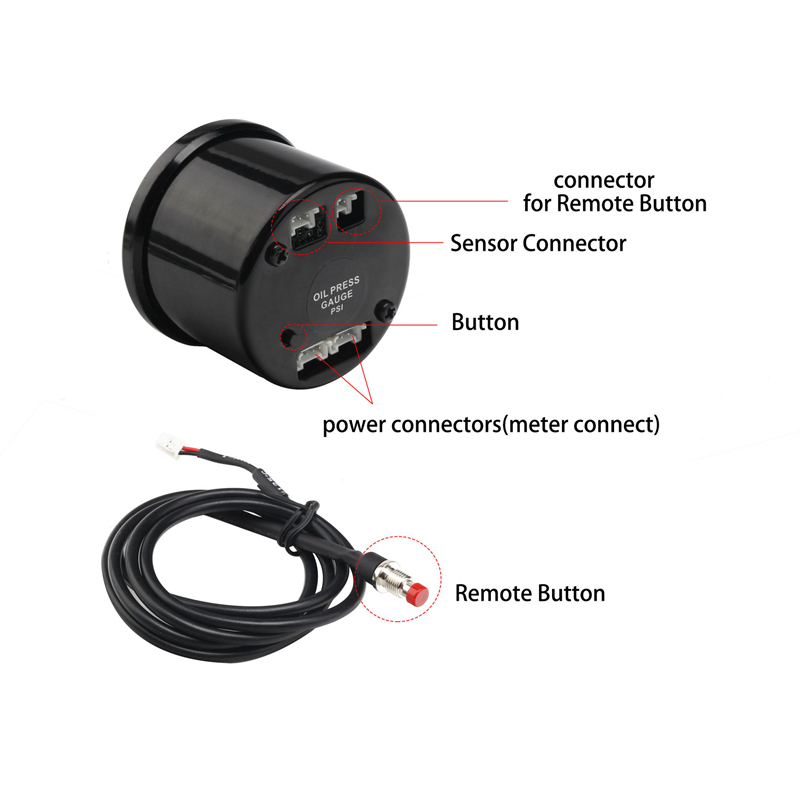

1. There is a button on the back of the meter, including the remote control button. Used IT to view and clear peak values, change colors, adjust brightness, select buzzers, set warnings, etc. The remote control button has the same function as the button in the meter.
2. Short press to switch between different function settings. Long press until the buzzer sounds, then enter the setting mode. Release the button after 5 seconds, it will return to the normal state.

Wiring:
- White Wire: 12V wire when it is igniting
- Red Wire: 12V battery wire (battery is not included)
- Yellow Wire: 12V wire when the small light is turned on
- Black Wire: GND

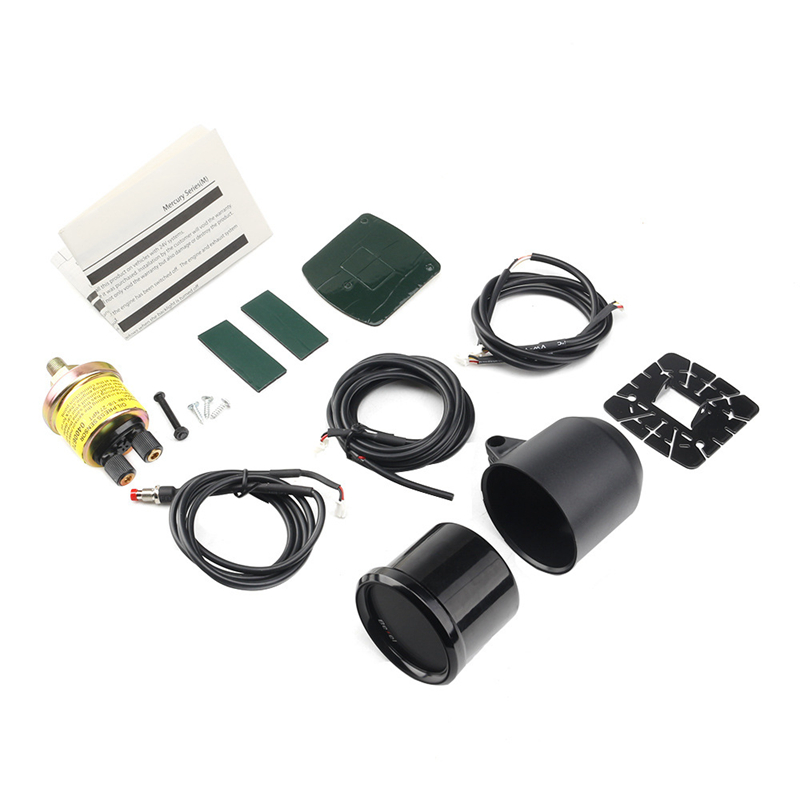

Package Included:
- 1 x Oil Pressure Gauge

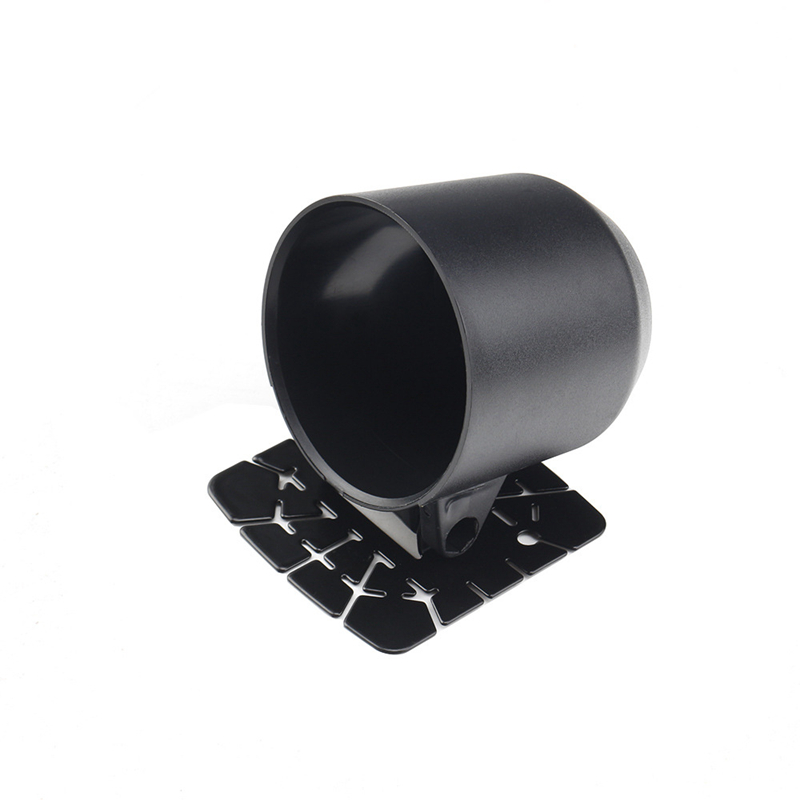

- 1 x Mounting Bracket Cup
- 1 x Sensor Connection Cable
- 1 x Power Cord
- 1 x Remote Button Cable + Remote Button
- 1 x Fuel Pressure Sensor
- 1 x Connection Cable
- 1 x Double-sided Tape
- 2 x Buffers
- 1 x English Manual
- Other Accessories

Note:
- It is designed for 12V vehicles. Please not install this product on a vehicle equipped with a 24V system.
- Please not install this product immediately after the engine is turned off, because your engine and exhaust system are very hot and can cause burns if contact.
- Due to different monitors and light effects, the actual LED colors of the item might be slightly different from the color which is showed on the pictures. Thank you for your understanding!
- Please allow 0.5-1 inch error due to manual measurement. (1 inch = 2.54 cm)
