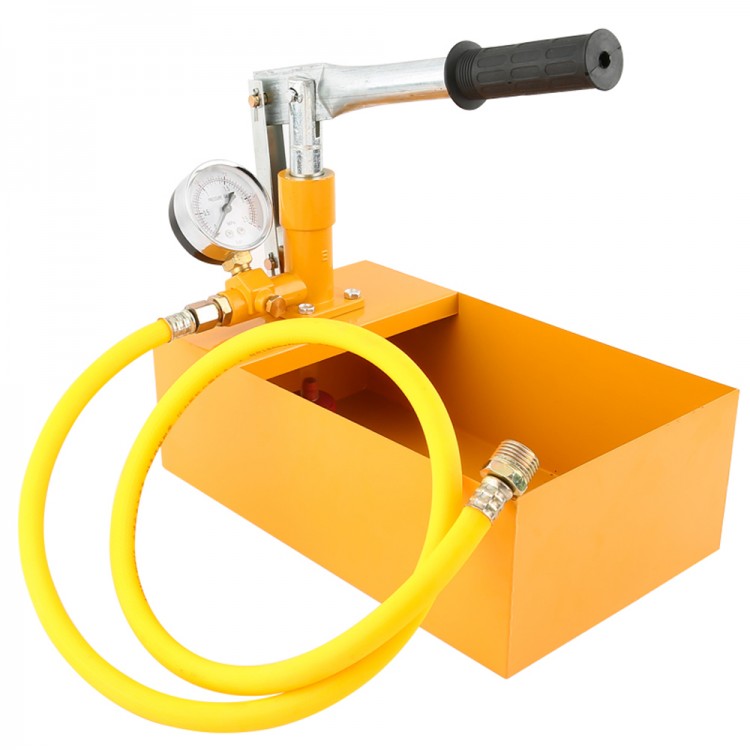

2.5Mpa Metal Manual Pressure Test Pump 25KG PPR Water Pipe Thicker Hydraulic Test Pump w/ 1/2" Hose

2.5Mpa Metal Manual Pressure Test Pump 25KG PPR Water Pipe Thicker Hydraulic Test Pump w/ 1/2" Hose

Description:
This is a kind of fine quality water pressure testing machine, perfect for water, or hydraulic oil as a medium, for a variety of pressure vessels, pipes, valves and other pressure test, but also for hydraulic energy, to provide the required pressure; for chemical, construction, plumbing, oil, coal, shipbuilding and other industries.

Features:
- Safe material, use at ease. Not easy to rust, strong and wear-resistant.
- Anti-collision, stylish pressure gauge, clear reading, simple and intuitive, accurate data display. Display professional pressure unit MPa and kilogram figures.

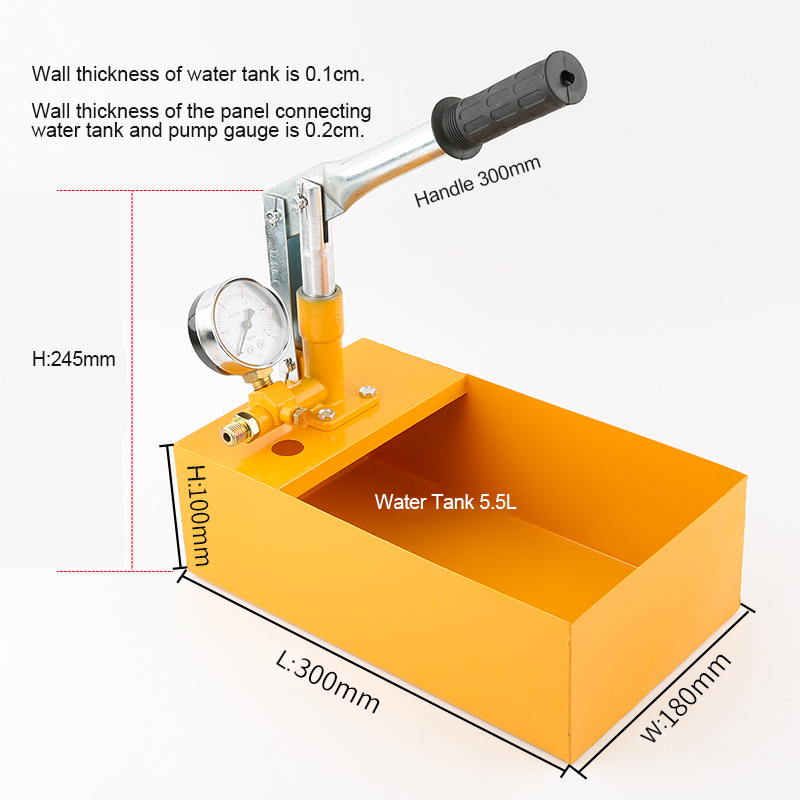

- Equipped with a 5.5L water tank.
- High-quality aluminum cylinder pump body and thickened panel.
- Precision manufacturing, safer to use.
- The box is forged with thick high-quality steel plate. The material is durable, not deformed and firmer.
- The normal water pressure of water pipe is 0.3Mpa (The water pressure of 0.1Mpa is 1kg pressure). The high-rise water pressure is 0.4Mpa, and the water pipe test pressure is generally between 0.8~1Mpa. The pressure test time of household pipelines is maintained for 2-4 hours.
- Thickened handle not easy to break. Rod length is 30cm/11.8", saving effort.
- Pressure relief valve design: When installing, pressure relief hole must be aligned with water discharge hole on the water tank to avoid water splashing on the ground or body during pressure relief.
- 1M/3.3ft explosion-proof pressure hose adopts 1/2" joint (outer diameter 20mm/0.8").

Applications:
- Electrician repair
- Home repair
- Mechanical maintenance
- Car repair
- Pipeline repair

Cause & Elimination of Troubles:
Case 1: When the handle moves up, water cannot be sucked up.
Solutions:
① Check whether the suction pipe is blocked by garbage.
② Check whether the pressure relief valve is tightened.

Case 2: Weakness when the handle moves down
Solutions:
① Check whether the pressure relief valve is tightened.
② Check whether the sealing ring of piston shaft is damaged.
③ Check whether there is any foreign matter in the one-way valve in outlet connector.

Case 3: The pressure on the pressure gauge is unstable
Solutions:
② There is leakage at the pipe or outlet joint, the sealing ring should be replaced.
③ Leakage at the connection of meter rod, replace the sealing ring.
③ The pressure gauge is damaged, repair the pressure gauge.

Using Method:
1. Install water outlet hose and connect one end to the pump body. (Attention: Be sure to seal when connecting, add a gasket. You can also wrap with PTFE tapes, otherwise it will easily leak)
2. Connect the other end of the water outlet hose to the pipe under test. (Attention: Be sure to wrap with PTFE tapes)
3. After filling the pipe under test with water and expelling the air, close pressure relief valve.
4. Fill water tank with clean water, then shake handle up and down to start pressure test and pressurization.
5. When the reading of pressure gauge rises and the pressure is needed, you can stop increasing pressure at this time. (Normal tap water pressure is 0.3Mpa, high-rise residential building is 0.4Mpa, water pipe test pressure is generally increased to 0.8-1Mpa, tap water 0.1Mpa is 1kg pressure)
6. After back pressure is stopped, if the pressure does not drop on pressure gauge, it can be proved that the pressure resistance of the pipeline is up to the standard; on the contrary, it can be proved that the tightness of the tested pipeline is not up to the standard, and there is a leak that causes the pressure to drop.

Package Included:
- 1 x Set of Pressure Tester Pump
