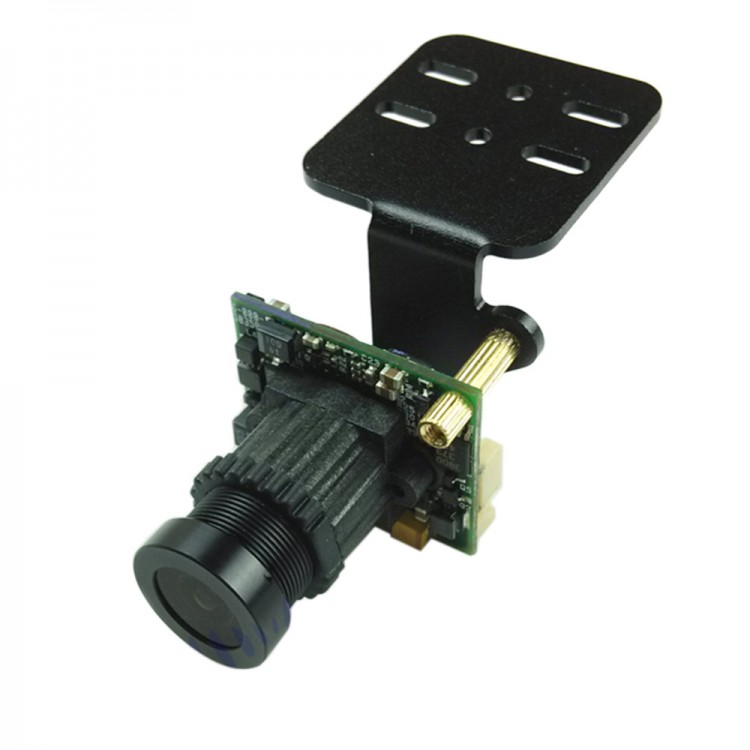

2.8mm Lens 700TVL 960H Exview HAD CCD II Camera for Airplane Multicopter FPV Drone w/Mounting Bracket
Description:
The camera is suitable for aircraft and multicopter, 12V operating voltage. The image is clear and delicate, color fidelity, ultra light with mounting seat only 19g. The camera with high quality 2.8MM lens, angle 100 degrees. This camera is equipped with a mounting bracket and a M3 mounting hole which is arranged on the mounting bracket for installation of the frame.
Note: if you find the camera shows fuzzy, loose lens fixed ring and rotate lens focus to make it clearer , then tightenfixed ring. When installing the camera and the frame, the camera should be installed firmly.
Specification:
- Lens: 2.8mm
- Working voltage: 12V (wide voltage, 7.5-13V can be normal operation).
- CCD type: 960H Exview HAD CCD II Sony
- Case size: 32mm*32mm
- Total pixels: 1020H 596V x NTSC: (61Megapixels) 1020H 508V x PAL: (52Megapixels)
- Effective pixels: 976H 582V x NTSC: (57Megapixels) 976H 494V x PAL: (48 Megapixels)
- Signal format: PAL/NTSC (default PAL system, can choose NTSC system)
- Resolution (horizontal): 700TVL
- Digital noise reduction: 2D digital noise reduction (2DNR);support 0-15 levels
Package included:
- 1 x Camera w/Mounting Bracket
