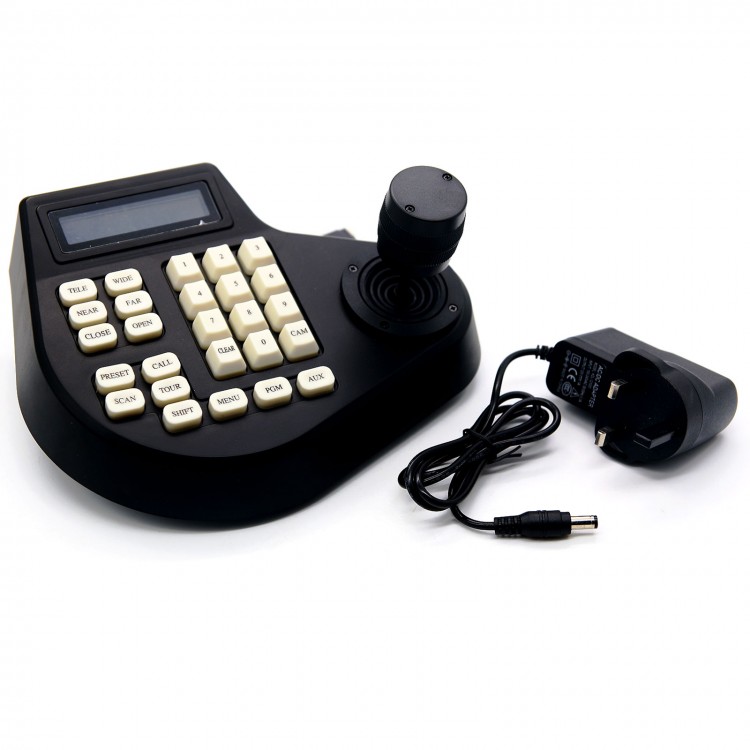

2 Axis Dimension Joystick Keyboard Controller LCD Display for PTZ CCTV Camera

Availability: In stock, usually dispatched in 1 business day

  • Price:$49.80
  • Price in reward points: 498 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $48.80 $47.81 $46.31 $44.32 Contact US
Quantity:

2 Axis Dimension Joystick Keyboard Controller LCD Display for PTZ CCTV Camera

Features:
- Photoelectric in sulated RS485 controlling mode,strong anti-jamming and long-distance trasmission
- Control up to 128 units,each unit can be set 1-255 addresses.
- Variable speed orperation can be applied to the built-in Pan/tilt of camera.
- Can control the lens zooming,focus and iris.
- Easy to set and run the preset positions and tour group.
- Easy to set the left and right limiting positions and run the scan between them.
- Home(default) position can be set up,activated and closed by the controller.

Specifications:

Power supply DC9V - 12V 500mA
Power adapter provided AC110V or 220V(±10%) switch to DC9V 500mA
Communication connection mode RS-485 bus mode for controlling units
In-built multi-protocol Pelco-D, Pelco-P, Pelco-D1, Pelco-P1, New
Baud rate of communication 2400/4800/9600/19200 BIT/S
Max controllable Cameras 128 units PTZ cameras or Decoders etc terminal decvices
Range of communication 1.5KM (4900ft) with twisted-pair
The range for camera address 1-255
Dimension 202(Lï¼‰× 168(Wï¼‰× 48(H)mm
Temperature Operation -10 to 60°C
Relative Humidity <=90%RH


Package included:
- 1x  2 Axis Dimession ptz keyboard controller
- 1x User Manual
