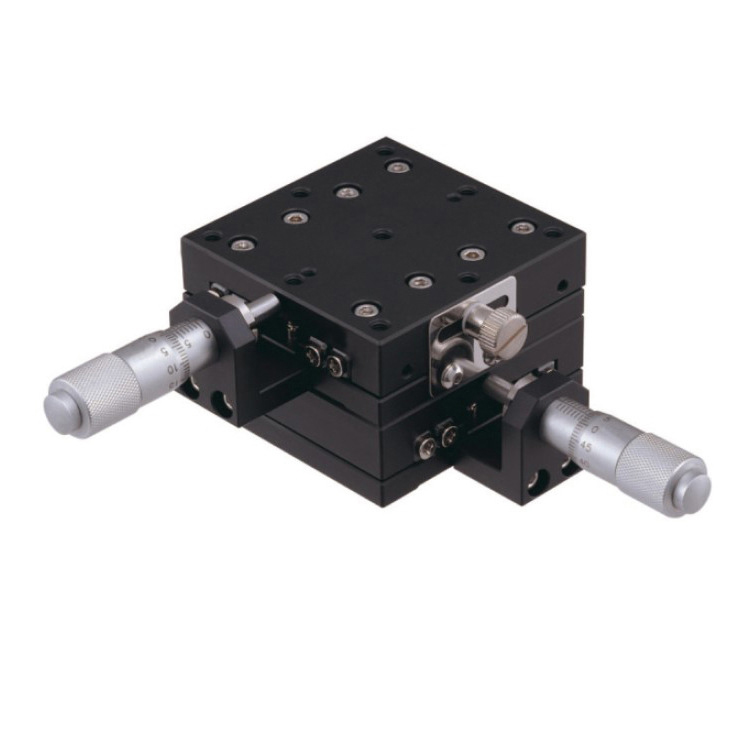

2-Axis XY Micrometer Linear Stage Manual Linear Stage 80x80mm w/Crossed-Roller Bearing SEMY80-AC
Features:
- 100% brand new and high quality
- Accuracy: 2Axis linear stage w/ micrometer head for accurate position
- Durability: Made of aluminium alloy material with black anodized surface
- Precision: Adopting cross roller guide for higher precision and smooth movement
- Application: Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement, etc.
Specifications:
- Model: SEMY80-AC
- Micrometer Accuracy: 0.01mm
- Table Size: 80x80mm
- Type of Guide Rail: Crossed-Roller Bearing
- Axis: XY Axis
- Load Capacity: 93.1N
- Material: Aluminium Alloy (Black Anodized Surface)
- Length of Travel: ±12.5mm
- Parallelism: 50μm
- Mobile Parallelism: 20μm
- Straightness: 3μm
- Vertical Run-out: 25''
- Horizontal Run-out: 15''
- Weight: 0.91kg
Package Included:
- 1 x 2-Axis Micrometer Linear Stage
