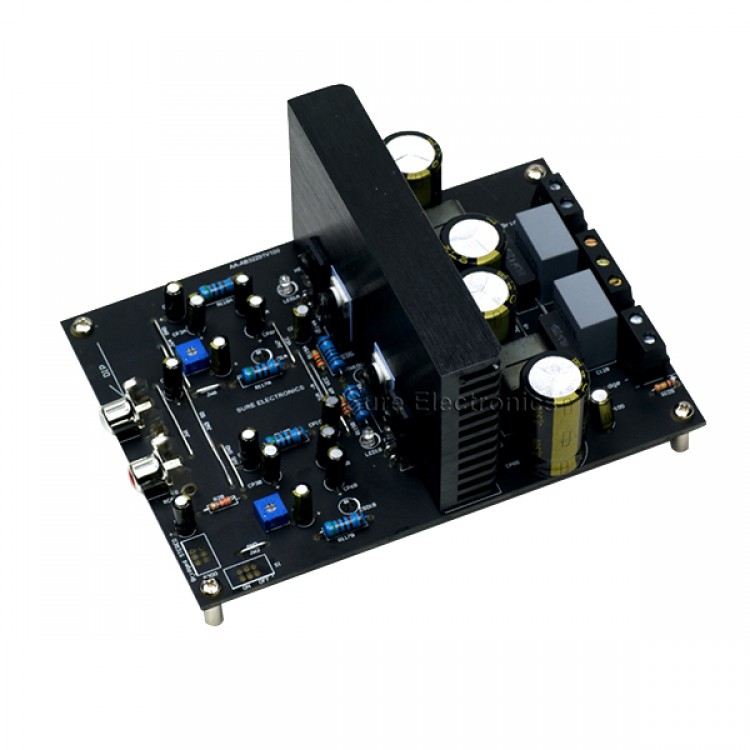

2 Channel 250Watt Class D Audio Amplifier Board - IRS2092 250W Stereo Power Amp
Description
Brief Introduction:
- This 2 X 250Watt Class D Audio Amplifier Board - IRS2092 is a state-of-the-art dual channel Class-D audio amplifier which integrates IRS2092 Class D audio driver IC, along with IR’s digital audio dual MOSFETs. This amplifier is capable of delivering dual-channel amplification with each channel up to 250W. High quality and high performance components are used making this amplifier high-quality amplifier. Powered by ± 55V to ± 65V supply, it can be used in many ampplications like Background Music Systems. It also features thermal protection, Over-current protection, Over-voltage protection, Under-voltage protection and DC-protection. In addition, on-board heat sink ensures excellent heat dissipation.
- This is an exceptionally well designed amplifier, with low distortion, good S/N ratio, low consumption and full protection. Having all these almost ideal characteristics this amplifier is likely to become the basic building block of your future high fidelity system, or it can also become the element that will upgrade your existing system.
- Please pay attention:This amplifier board needs dual power supplies and it doesn't support BTL mode.
- Net weigt:330g /11.64oz
Feature:
- Size:145 mm (L) x 100 mm (W) x 35 mm(H)
- Output Power:Each channel is rated at 250W
- Efficiency:90% @ 250W,8Ω, Class D stage
- Multiple Protection Features: Over-current protection (OCP), high side and low side MOSFET
- Over-voltage protection (OVP)
- Under-voltage protection (UVP), high side and low side MOSFET
- DC-protection (DCP)
- Over-temperature protection (OTP)
- PWM topology: Self-oscillating PWM and half-bridge.
Electrical Data:
|
Typical
|
Notes / Conditions
|
|
| IR Devices Used |
IRS2092, Protected digital IRFI4020H-
117P Digital audio MOSFETs |
|
| PWM Modulator | Self-oscillating, second order sigma-delta modulation, analog input | |
| Power Supply Range | ± 55V to ± 65V | |
| Supply Voltage Gain | 40v/v | |
| Rated Load Impedance |
8-4Ω
|
Resistive load |
| Standby Supply Current | +50 mA/-80 mA | No input signal |
| Total Idle Power Consumption | 7W | No input signal |
| Channel Efficiency | 90 % | Single-channel driven, 250W |
Audio Performance:
|
Before Demodulator
|
Class D Output
|
Notes / Conditions
|
|
| THD+N, 1W | 0.01 % | 0.02 % | 1kHz, Single-channel driven |
| THD+N, 10W | 0.005 % | 0.007 % | |
| THD+N, 60W | 0.005 % | 0.007 % | |
| THD+N, 100W | 0.007 % | 0.008 % | |
| Dynamic Range | 101 dB | 101 dB | A-weighted, AES-17 filter,Single-channel operation |
| Residual Noise | 200 μV | 200 μV | 22 Hz – 20kHz, AES17 filter Self-oscillating frequency 400kHz |
| Damping Factor | 2000 | 120 | 1kHz, relative to 4Ω load |
| Channel Separation | 95 dB | 90 dB | 100Hz |
| 85 dB | 80 dB | 1kHz | |
| 75 dB | 65 dB | 10kHz | |
| Frequency Response：20HZ-20KHZ | 20 Hz-35kHz | ±3 dB | 1W, 4Ω – 8Ω Load |
Specifications:
- Power Supply Voltages:±60V
- Load Impedance:8Ω
