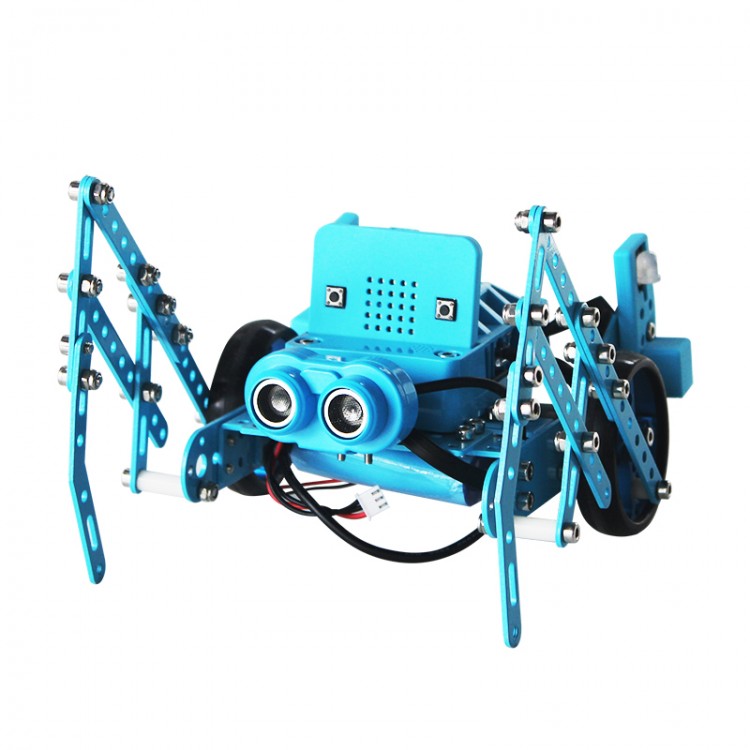

2-In-1 Bionic Robot Spider Robot Kit Mantis Robot Car Unassembled For Micro:bit with Main Board

2-In-1 Bionic Robot Spider Robot Kit Mantis Robot Car Unassembled For Micro:bit with Main Board

Version Introduction:
This version comes with main board for Micro:bit.

What we can do with this robot kit?
1. Develop hands-on skills
2. Study the transmission knowledge of mechanical structure
3. Learning programming control knowledge
4. Learning the power source of robot, namely the control of motor
5. Learning the control of RGB lights
6. Automatic obstacle avoidance function. Explore the world of AI intelligence and let ultrasound work for you
7. Cultivate DIY creativity

Features:
- Two-in-one bionic crawling robot kit.
- Flexible assembly of parts and components. You can assemble two forms of bionic mantis or bionic spider according to your own preferences.
- Two programming environments are optional. Graphical programming for Micro:bit & graphical programming for Scratch 3.0. Self-developed offline programming software Hello Maker Bit is based on that for Micro:bit and programming software Hello Maker Code is based on that for Scratch 3.0.
- Mobile APP wireless remote control for Android system. Mobile phone for Android, tablet PC wireless Bluetooth remote control.
- Various fun games. Automatic obstacle avoidance function: the obstacle information is fed back through ultrasonic ranging sensor, so as to realize the automatic obstacle avoidance function. Bionic robot battle. Colorful RGB lights: Through the programming program, multiple colors of lights can be set to display circularly. Robot mobile phone interaction: Bionic robot can complete various actions through APP control.
- Mobile phone APP wireless programming control for Android system. After the Bluetooth connection, online programming can be set in the APP, DIY programming program anytime, anywhere, open up your creative thinking.
- Fun operation. Through APP control, it can move back and forth, left and right, finish automatic tracking, automatic obstacle avoidance and other actions. You can also customize the mobile mode of programming, more interesting operation waiting for you to discover.

Specifications:
- Controller: Hello Maker H1 main control board (version for Scratch) /Hello Maker main expansion board (version for Micro: bit)
- Motor: GM25GA-310TA DC geared motor; speed ratio: 1:34
- Sensors: multiple sensors can be expanded
- Power supply: 7.4V lithium battery (battery is not included)
- Size after assembling: about 22 x 15 x 13.5cm (LxWxH)

Package Included:
- 1 x Main Expansion Board
- 1 x Board for Micro:bit
- 2 x RGB Sensors
- 1 x Ultrasonic Sensor
- 2 x 3080 Boards
- 6 x 10110 Strips
- 2 x Side Boards
- 2 x 120 Bending Bars
- 4 x 2020L Brackets
- 8 x 1070 Strips
- 2 x M4*4 Nylon Columns
- 2 x M4*20 Nylon Columns
- 6 x M4*25 Nylon Column
- 2 x Couplings
- 2 x Metal Gears
- 2 x Rubber Wheel Sleeves For Metal Gear
- 2 x 6V 13 RPM Motors
- 1 x Bag of Parts (Includes screws, connection cable, USB data cable, hexagon wrench, etc.)

Note:
- Assembling is needed. Assembly instructions is provided. Please follow the teaching materials to learn programming and development.
- Battery is not included.
- It is an education product for AI robot programming for primary and middle school students.
- It comes with control kit.
- We have versions for Scratch and for Micro:bit. Except for the type of control board and programming software, their functions and functions are basically the same.
- This product is suitable for 8+ years old users. Beginner children use it when accompanied by a parent.


Main Expansion Board - Graphical Programming Controller:
- Support web-based graphical programming provided by the official for Micro:bit;
- Support the officially provided Hello Maker Bit graphical programming (development based on that for Make Code);
- Support programming for Python and secondary development.
- Source code is provided for the above programming methods.



Parameters of Main Expansion Board:
* 1 - Input port: Support I2C interface, digital interface, analog interface, serial communication sensors (all sensors), support secondary development, can expand a variety of sensors.
* 2 - Output ports: Four-way servo interface (compatible with PWM servo) (working voltage 5V, current below 1A, with over-current protection); four-way DC motor drive, the drive current does not exceed 2A;
* 3 - Buzzer: Integrated buzzer.
* 4 - Indicator: Integrated power supply indicator.
* 8*16 dot matrix display (version for Scratch only).
* Communication methods: Bluetooth communication, serial port communication, I2C communication (reserved for various communications to facilitate secondary development).
* Control mode: Bluetooth communication and APP control for Android.
* Power supply: working voltage 7-13V, 8.4V and 11.1V lithium batteries (current 4A and above) are recommended (battery is not included);
* Size: 92MM*58MM
* Weight: 43g
