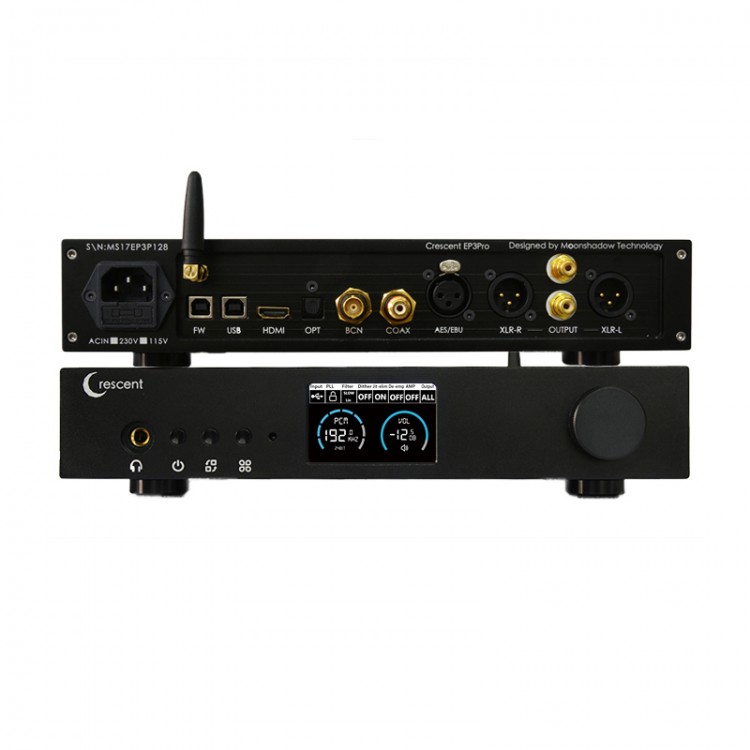

2 In 1 ES9038Pro DAC HiFi Headphone DAC Amp Amplifier Decoder 32 Bit 384K DSD 256 EP3Pro

2 In 1 ES9038Pro DAC HiFi Headphone DAC Amp Amplifier Decoder 32 Bit 384K DSD 256 EP3Pro

Description:
EP3Pro is a cost-effective decoder. It uses FPGA advanced audio algorithm, a unique human-computer interaction interface, and the decoding status setting information of the machine is directly presented to us, with rich functions and strong playability. With reference to the official design circuit, after a long time of debugging, the potential of the ES9038Pro is perfectly released.

Features:
- ES9038 core voltage adopts three-stage filtering, ensuring pure and noise-free sound from the source. The analog part adopts full-symmetric Class A voltage regulator structure. The 8-channel ultra-low noise LDO makes the intermediate frequency thick and accurate, high-frequency transparent, elegant, and deep. Wide sound field and excellent analysis, low frequency and texture.
- New user interface, intuitive and simple, advanced settings bring more gameplay, 11 filter settings, 5 levels of volume stepping, debounce switch, de-emphasis switch, etc.
- Firmware upgrade interface, regularly update firmware according to community feedback, together make this decoding better.
- Low jitter thermostat crystal
- 2.8-inch 240*400 full-view TFT LCD screen, all settings at a glance
- Power-down memory, save the last setting (normal switching machine)
- Add 3 independent shortcut keys
- New infrared remote control function is more convenient
- ALPS imported digital volume potentiometer, step accuracy can be set to 0.5dB / step
- USB adopts HU308 XMOS chip U208 core third generation chip, the transmission is more stable and the performance is stronger.
- FPGA built-in digital signal reforming technology, clock management and multi-level digital shaping technology
- BNC supports external high precision 10Mhz clock input
- The full interface supports DSD hard solutions:
- USB support sampling rate: PCM32bit 384K DSD DSD64, DSD128, DSD256
- Coaxial support sampling rate: PCM 32bit 384K DSD Dop64, Dop128
- BNC supports sampling rate: PCM 32bit 384K DSD Dop64, Dop128
- AES supports sampling rate: PCM 32bit 384K DSD Dop64, Dop128
- Fiber Supported Sample Rate: PCM 32bit 192K DSD Dop64
- I2S/DSD input supports PCM 32bit 384K DSD64~DSD512 (current UI display limit)
- Dynamic range >123dB
- Distortion <0.001%
- Stereo resolution >112dB
- Machine size: width 300* deep 200* height 52MM (excluding protruding parts);
- Packing size: length 470* width 360* height 175MM;
- Package weight: 3KG;
- Voltage: AC230V or AC115;
- Frequency response: 20Hz-20kHz
- Line output: RCA output level single-ended 2.0 Vrms @0dBFS, balanced 6.0 Vrms @0dBF

Optional Types:
- Type A: EP3Pro Silver AC115V
- Type B: EP3Pro Silver AC230V
- Type C: EP3Pro Black AC115V
- Type D: EP3Pro Black AC230V

Note: Please tell us the type you want when purchasing. Thank you!

Package Included:
- 1 x Full Balance Decoder ES9038PRO XMOS DSD HiFi DAC Decoder
