2-In-1 Fiber Optical Light Source Optical Power Meter NK301

2-In-1 Fiber Optical Light Source Optical Power Meter NK301

Features:
- Advanced two-color integrated mold process for extra durability; Top dustproof over protects the fiber output connector
- Multiple Optical Wavelength Outputs: Single port with two wavelengths; Dual port with 4 wavelengths (two single modes, two multi-modes)
- Modulation Function in 270Hz, 1KHz, and 2KHz
- Adjustable Output Optical Power: adjustment range is 6dB, stepping 1dB
- Universal Micro-USB Interface: Support multiple power supplies such as charger adapter, power bank, and PC tablet, featuring long working hours
- Smart Switchable Power Supplies: Priority to using power adapter, followed by built-in rechargeable batteries, and then dry batteries (Batteries are not included). When the electricity of rechargeable batteries is too low, it will switch to the mode powered by dry batteries. When the former one is recovered, then it will switch back again. There is no need the turn the meter off, working as normal.
- Automatic shutdown function to save power
- Support various removable optical output connectors

Technical Parameters:
Optional Module No.: 001
- Central Length: 1310/1550nm±20nm
- For Optical Fibers: 9/125μm

Optional Module No.: 002
- Central Length: 850/1300nm±20nm
- For Optical Fibers: 62.5/125μm

Optional Module No.: 003
- Central Length:
  850/1300nm±20nm;
  1310/1550nm±20nm
- For Optical Fibers:
  9/125μm (850/1300nm);
  62.5/125μm (1310/1550nm)

- Spectral Width: ≤5nm
- Output Optical Power: ≥-5dBm
- Short-Term Stability: ±0.05dB/15min
- Long-Tern Stability: ±0.15dB/8h
- Operating Way: CW/270Hz/1kHz/2kHz
- Optional Optical Output Connectors: FC/UPC (Default), LC/UPC, SC/UPC, and ST/UPC
- Optional External Connector: Micro-USB
- Optional Power Adapter: Input 100-240V DC, 50Hz; Output DC 5V, ≥1A
- Maximum Power Consumption: 0.5W
- Size: 100 x 186 x 50mm
- N.W.: 240g
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 95%, no condensation

Package Included:

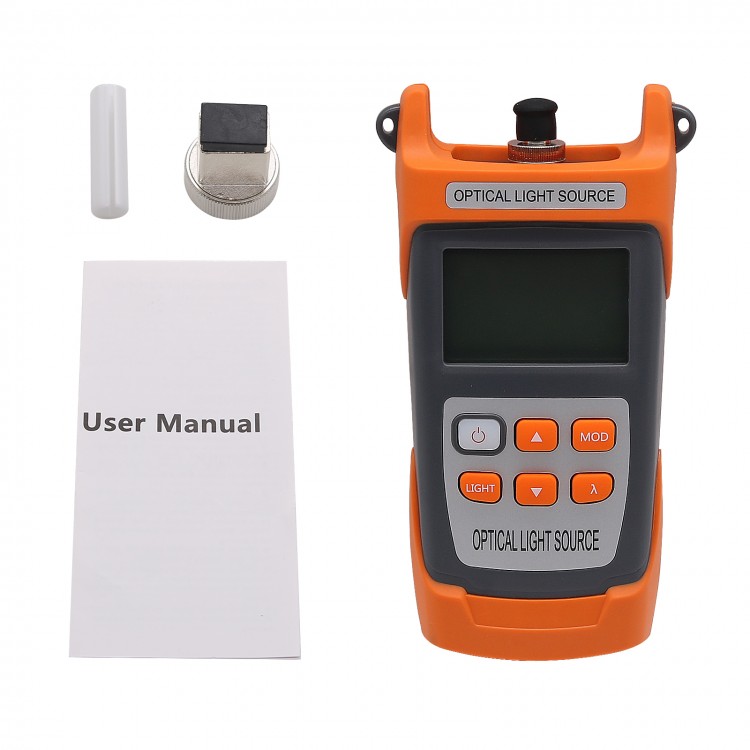

- 1 x Optical Light Source Optical Power Meter

Note:
- Please tell us the Module No. you want when purchasing.
- Any optional accessories are needed, please contact us. Thank you!
