2-In-1 HiFi Audio Player USB Decoder w/ 8" Full Screen For Android 7.1 MX-2A

2-In-1 HiFi Audio Player USB Decoder w/ 8" Full Screen For Android 7.1 MX-2A

Description:
Based on MX-Pro player, MX-2A is designed with all functional ports of MX-Pro. It is a player with XMOS+CS43198*2 decoding. With independent USB input port, it can be used as a HiFi player and an USB decoder. It is a cost-effective HiFi player.

CS43198 DAC is designed with unique non-oversampling simulation mode. Users can enjoy more natural sound. CS43198 outperforms AK4497 and ES9038 Pro in instant performance. And it can remove jitter caused by system clock in audio path.

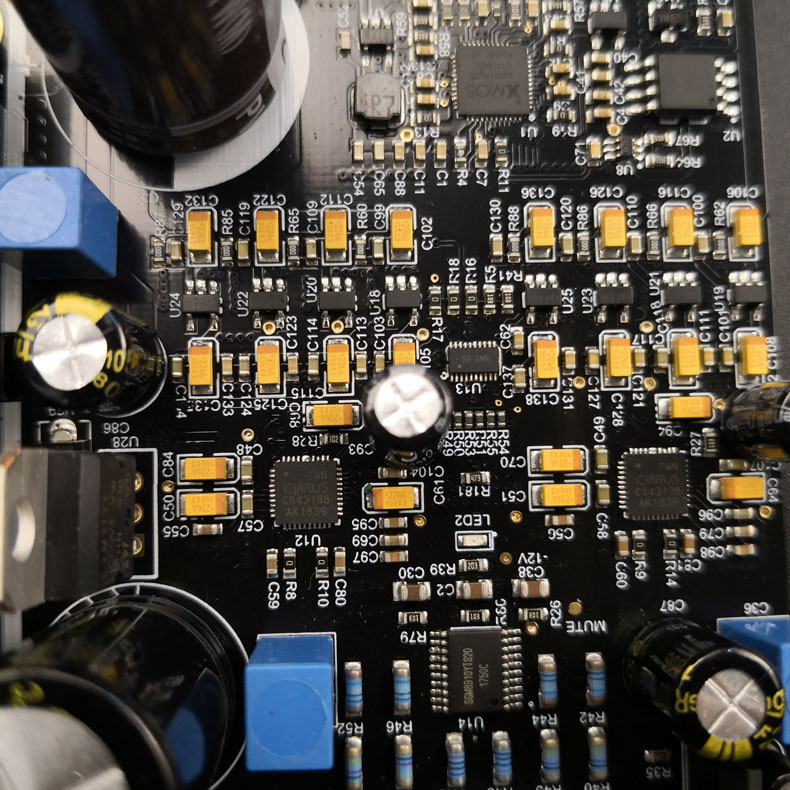

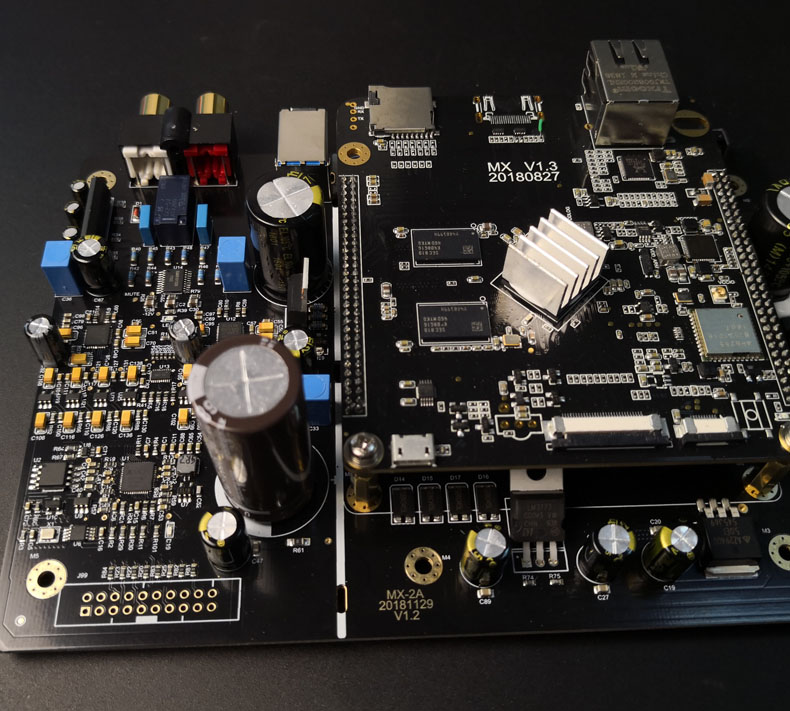

MX-2A's core board is made of 6-layer PCB with black gold-plated process. And its base board is made of 4-layer PCB black gold-plated process. Its digital part adopts ta capacitors. Each level of power supply is powered by precision LDO-ADP151 (power supply ripple noise reaches uV level). There are over 10pcs LDO-ADP151 regulated power supplies.

MX-2A is better tahn MX-Pro + MX-DAC in sound quality. Its sound features ES9038's sound field, more exquisite sound.




Specifications:
- OS: For Android 7.1 + User-Defined Audio Framework
- CPU: 4-Core 1.3G
- RAM: DDR3 2G
- ROM: eMMC 64G
- Screen: 8" Full Screen
- USB Port: USB OTG, supporting 8TB hard disk
- TF Card: Support 256G
- Wireless: Dual Wifi, AC+BT4.2
- Wired: 100M/1000M
- Upgrading Ways: Online upgrading, upgrading via TF card and USB port
- Protocols: DLNA, Airplay, Samba
- Audio Formats:
  DSD64/128/256/512 (dsf, dff, dst) "iso"
  DST coding supports 2-channel and multi-channel to 2-channel output
  WAV: 64bit/768KHz, DXD: 24bit/384K
  APE Fast/High/Normal: 384KHz/24bit
  AIFF (For Apple Lossless): 384KHz/24bit
  MP3, FLAC, WMA, AAC
- USB Output Port: 32bit/384KHz, DSD256 Native & Dop128
- Coaxial Output Port: 24bit/192KHz & Dop64
- D/A Conversion Analog Output:
   USB Input (For XMOS): 32bit/384KHz, DSD256 Native Dop128
   Output Level: 2.2Vrms
   Frequency Response: 10Hz-40KHz (±1dB)
   THD+N: ≤ 0.00035%
   SNR: > 125dB
   Dynamic Range: > 127db

Package Included:
- 1 x Set of MX-2A Decoder

Note: Please choose the color you want when purchasing. Thank you!
