2-in-1 N-type RF Power Meter V11 & 6GHz Spectrum Analyzer (Main Unit + Type-C Cable) for EMC Testing

Availability: In stock, usually dispatched in 1 business day

  • Price:$130.44
  • Price in reward points: 1304 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $127.83 $125.22 $121.31 $116.09 Contact US
Quantity:

2-in-1 N-type RF Power Meter V11 & 6GHz Spectrum Analyzer (Main Unit + Type-C Cable) for EMC Testing

Description:

RF-Power-Meter-V11 series is a high-performance, low-cost, portable RF power meter. It has a spectrum display. Its type-c port can provide 5V power supply and can be used for high-speed data communication. It is easy to use. Compact size makes it easy to carry. It offers stable performance, high accuracy, preset bias, wide dynamic range, and fast measurement speed. The software that comes with the power meter allows users to configure the power meter on a PC, making it easy to record and share data.

Features:
- Supports a variety of high-speed dynamic acquisition and spectrum display. Accurate measurement of RF power at a single frequency
- Supports RF signal acquisition up to 4GHz
- Built-in digital programmable attenuator (0-31.75DB). When used with a CNC attenuator, it measures a maximum input power of 30dBm (1W). The dynamic range is +30dBm to -65dBm
- With a 1.3" TFT LCD and a built-in Li battery, V11 can run offline (in spectrum mode)
- The host computer has 2 MARK cursors, which is convenient for measuring the modulation pulse width. The upper computer can automatically calculate the maximum and minimum values
- RF input interface: Type N male connector
- Boot process: Please check whether the battery switch needs to be in the ON position, and then press the middle button of the panel
- Shutdown process: long press the middle button to turn it off

Applications:
1. Calibration of radio frequency instruments;
2. Detection and maintenance of RF equipment;
3. Measurement of SWR of RF circuit (with feedback bridge);
4. Measurement of return loss of RF circuit;
5. Interference detection between wireless communication equipment;
6. RSSI (received signal strength indication) and transmitted power level detection;
7. Performance evaluation of step attenuator;
8. Measurement of the gain of the amplifier and the attenuation of the network;
9. Measurement of forward power and reflected power in directional coupler;
10. Power measurement of GSM signal modulated by GMSK.

Specifications:
- Measured power range: -70 to +30dBm (It has good linearity in the range of -40dBm to 0dBm. When the input signal is greater than 0 to +30dbm, users must set the internal digital programmable attenuator with ATT=30DB and OFFSET=+30DB. It can display the measured power value after the measurement)
- Measured power resolution: ±0.1 dBm
- Measured frequency range: 25M~6GHz
- Input impedance: 50Ω
- Dynamic range: 100dB
- Operating voltage: 5VDC (powered via a type-c cable)
- Charging current: 400mA
- Product size: 66mm x 36mm x 24mm/2.6" x 1.4" x 0.9" (without protruding N-heads)
- Housing: CNC machined aluminum alloy shell
- Weight: less than 100g/0.2lb

Package Included:

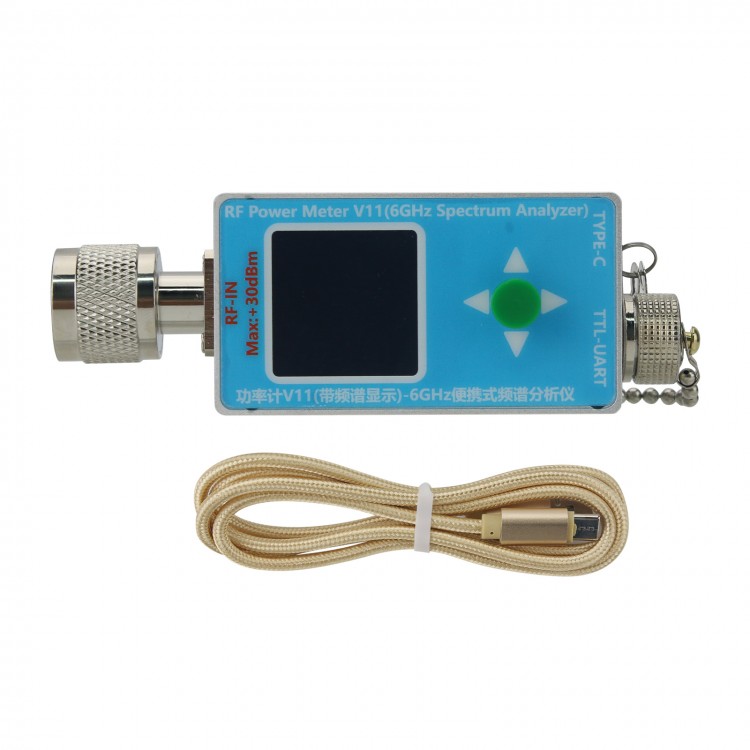

- 1 x RF power meter & spectrum analyzer (with aluminum alloy case)
- 1 x Type-c cable

Packaging Details:
- Weight: 0.3kg



Upper Computer Diagrams:



TFT Spectrum Display:
