2 In 1 Out Audio Source Signal Selector Switcher Output Volume Adjustment RCA Interface B201
Specification:
Power supply: no power supply required, plug and play
Material: all metal case design
Input and output impedance: 10 KΩ-50 KΩ
Frequency response: 20-20 kHz
Distortion: < 0.002%
Insertion loss: <0.01dB
Signal gain: 0dB
SNR S/N: >98dB
Input interface: standard RCA interface
Output interface: standard RCA interface
Input channels: 2 channel stereo input
Output channels: 1 channel stereo output with
Control switch: 2 gears manual switch
Net weight: 0.14kg
Gross weight after packaging: 0.16kg

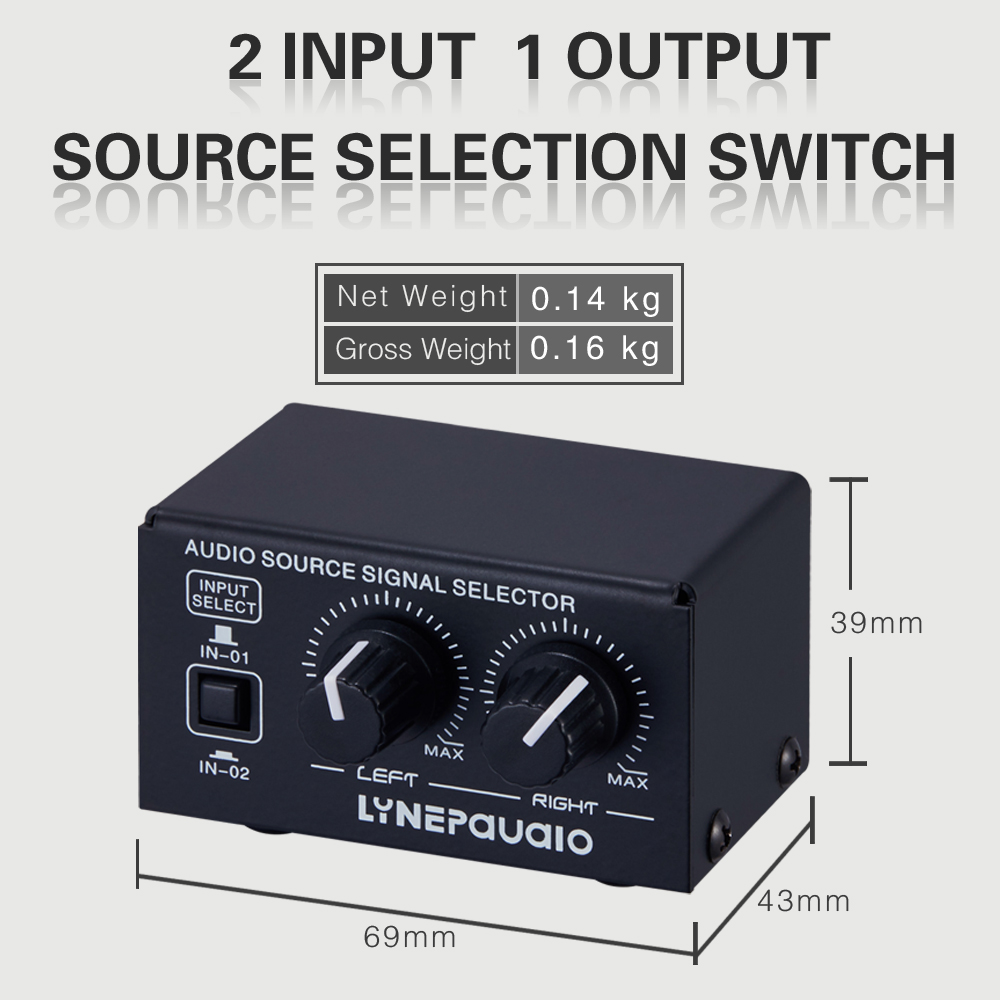

Product size: length 69*width 43*height 39mm
Package size: length 83*width 73*height 51mm

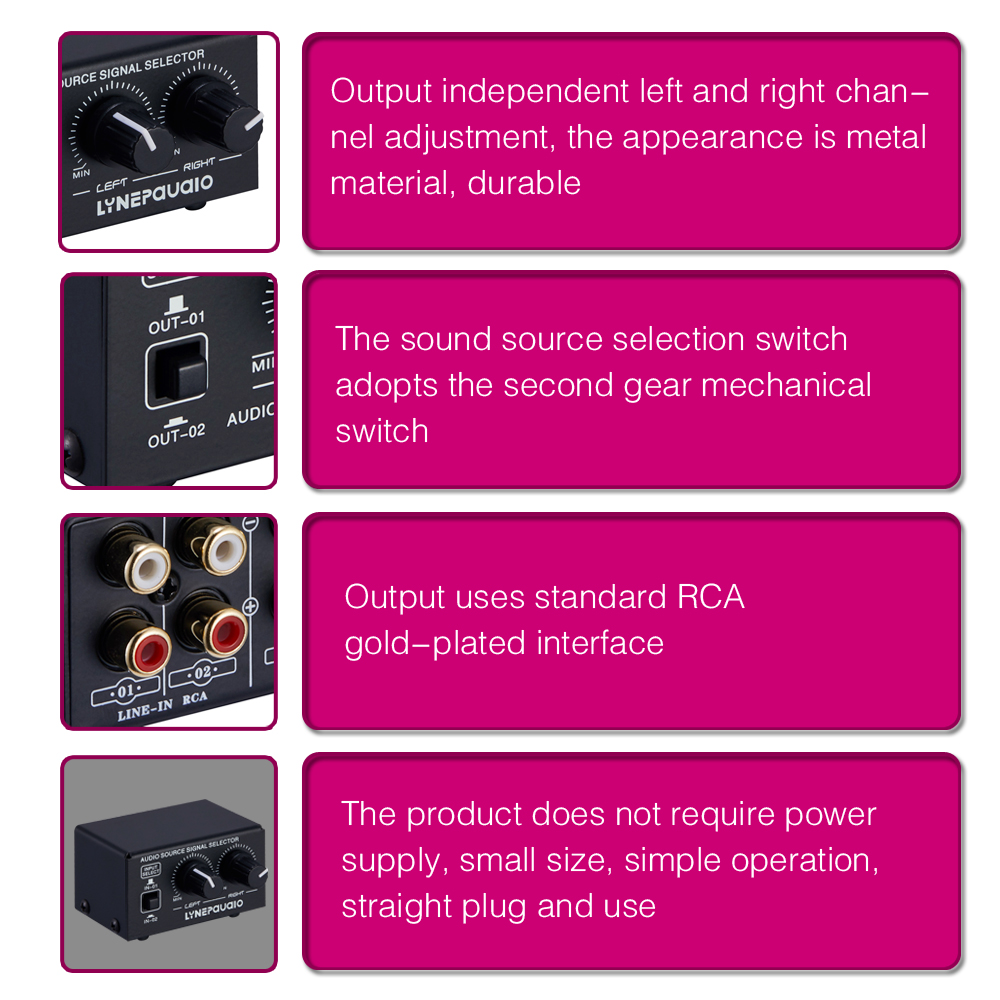

Features:

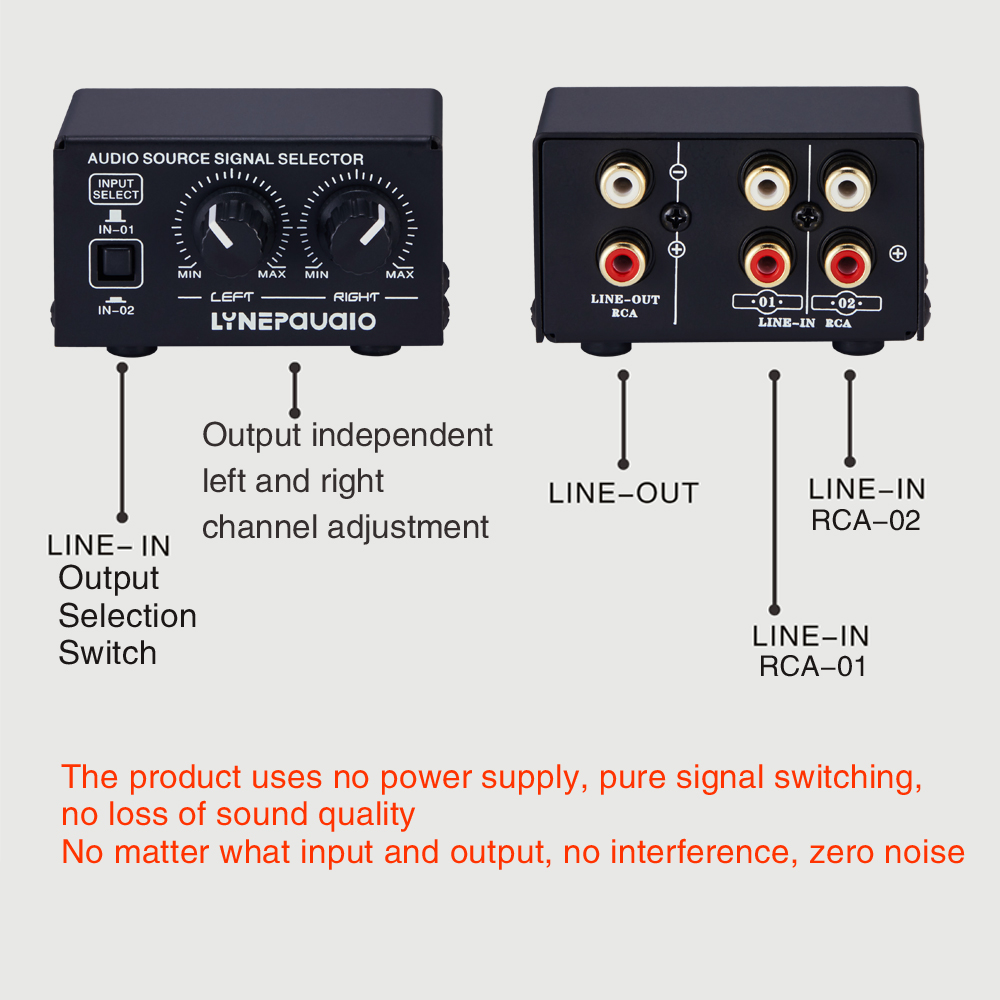

1. No need for power supply design, plug and play, lossless switching transmission of input and output signals.

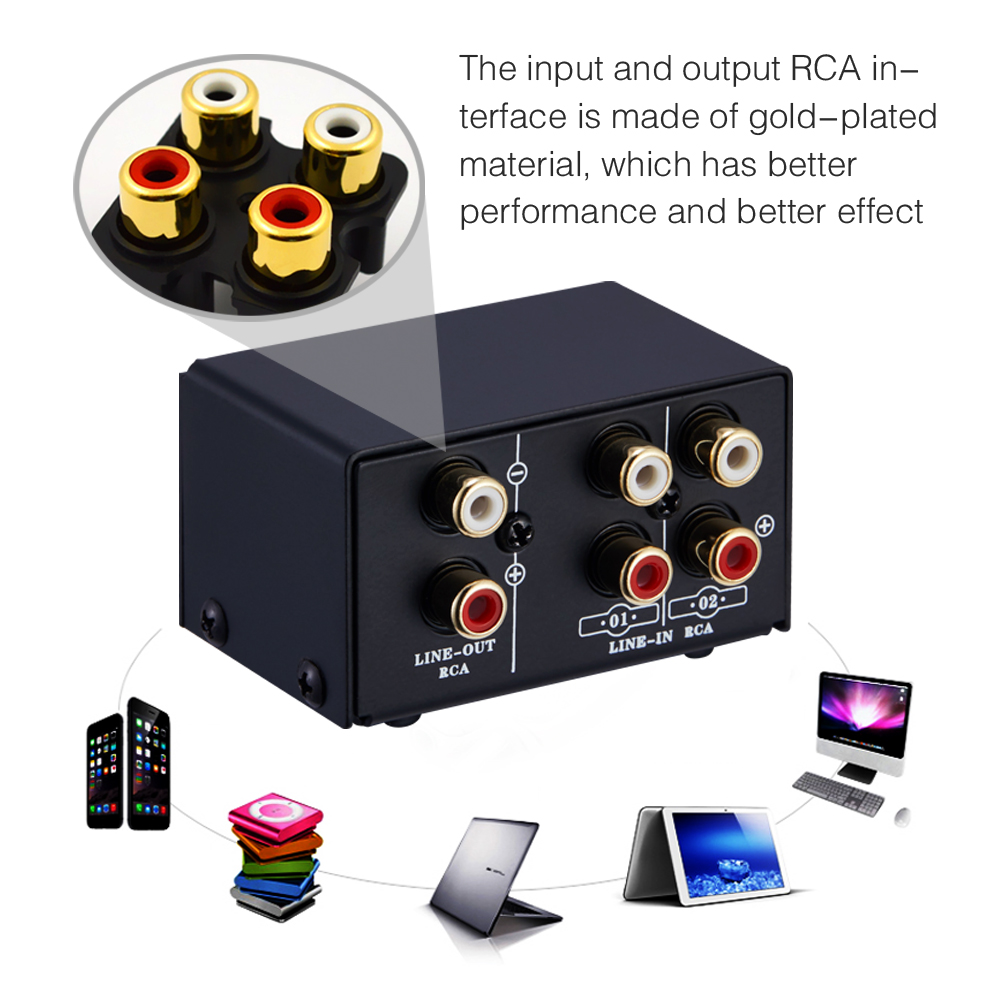

2. This product is mainly used to select a common output device for switching various stereo signal input. If there are two stereo signal sources (such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player), the device needs to output to the power amplifier or active speaker.
3. Two sets of stereo source switchers solve the complex line plugging operation. As long as the required input device signal source is uniformly connected to the switcher, it can be easily selected.

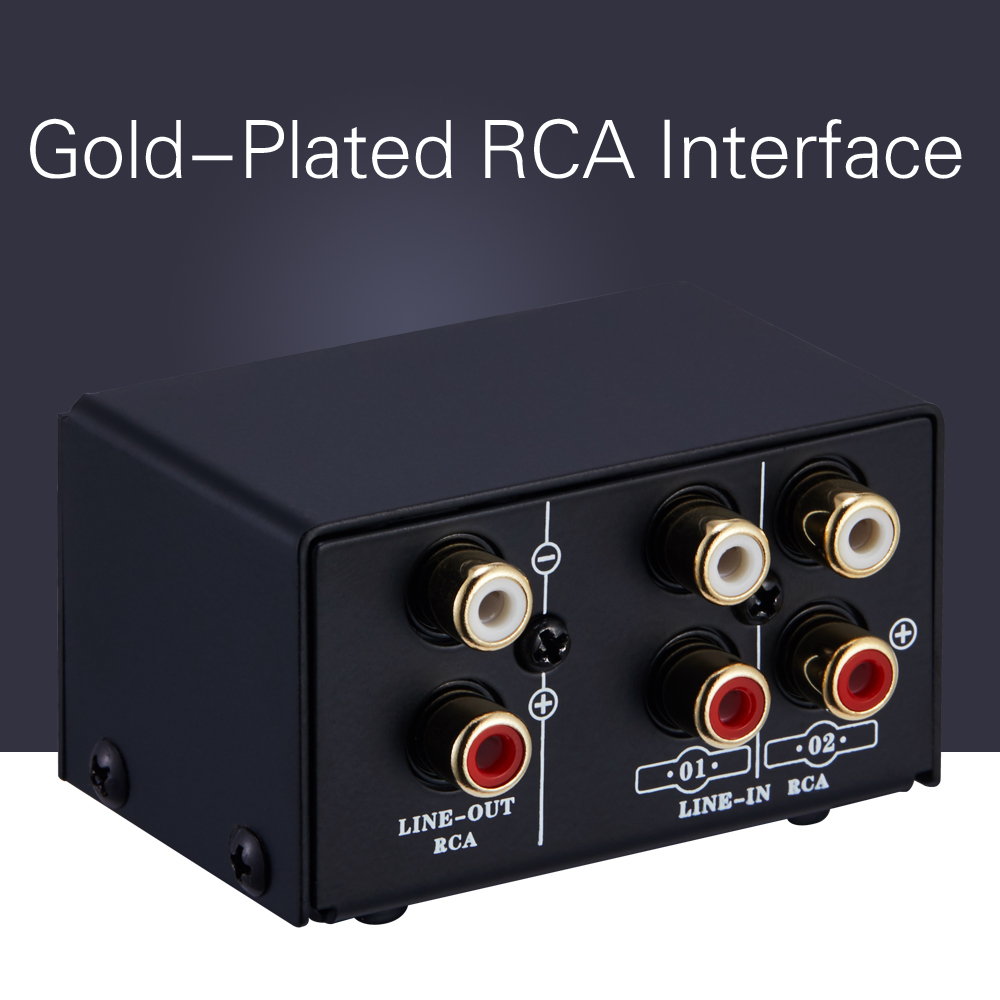

4. Standard RCA interface design for input and output, and the switch is designed with manual push-button switch of precise 2 positions.
Package List:
1 x Signal Selector
