| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $23.37 | $22.90 | $22.18 | $21.23 | Contact US |

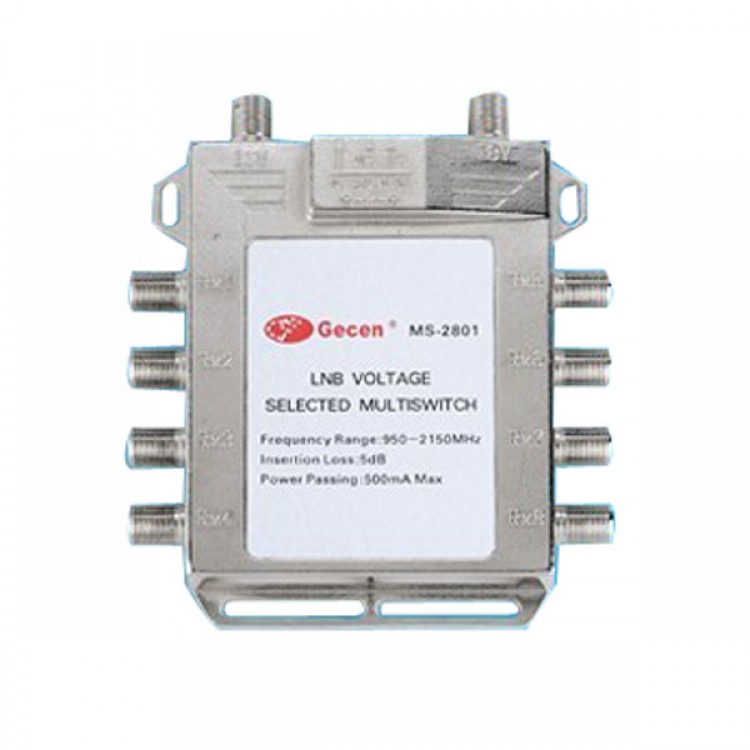

2 In Multiswitch MS-2801--13/ 18V LNV Voltage Selected Multiswitch
Parameters:
- Frequency range: 950-2150MHz
- Insertion consumption: 5dB
- Isolation: 25dB
- Reflection loss: 10dB
- Working voltage: 12-20V
- Working consumption current: 30mA
- Max passing current: 500mA
- Optional DC power supply: 20V(-+1)350mA
- Terminal resistance: 75(Ω)
- Control swtich voltage: 13/18V
