2 Phase 42mm DC24V Small Power Hybrid Stepper Motor 1.8 Degree Length 48mm for CNC
Parameters:
- Product Name: Two Phase 42 Hybrid Stepper Motor
- External Diameter: 42mm*42mm
- Step angle: 1.8 degree
- Motor Length: 28mm~48mm
- No. of leads: 4
- Holding Torque: 0.12 N.M~0.46 N.M
- Diameter of Axle: 5mm
- Weight: 0.15 kg~0.35 kg
- Matchable Driver: LC2054DA / MC542

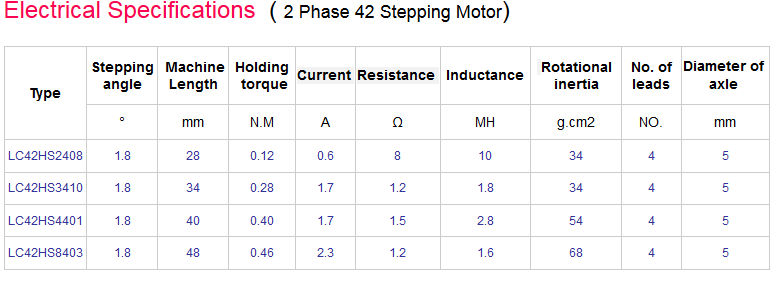

Notice: The table above is only for the representative products
Package Included:
- 1 x 2 Phase 42mm DC24V Hybrid Stepper Motor
