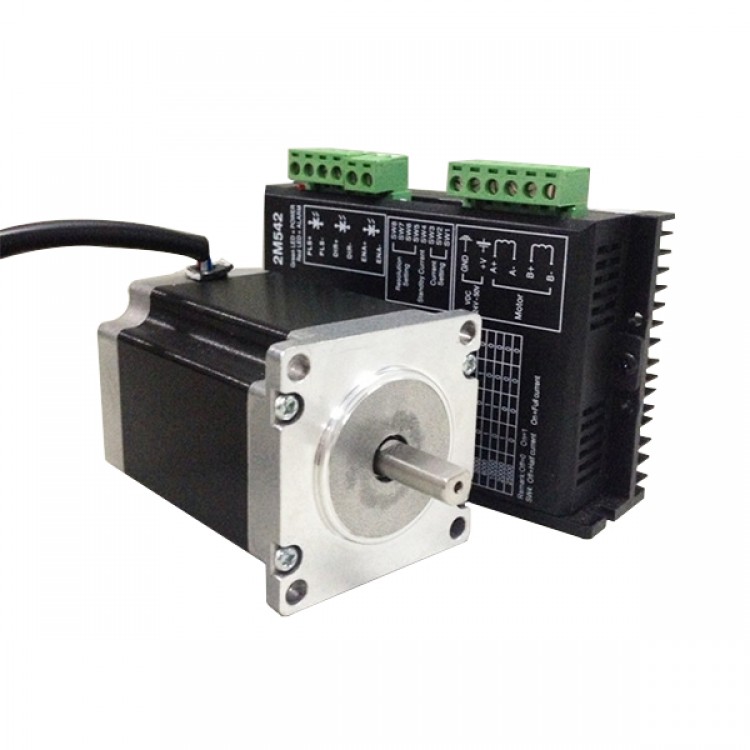

2 Phase 57 Stepping Motor Combo 57BYG250-76 Body Length 76MM Driver 2M542-N
Motor description:
- Motor body length: 76mm
- Shaft diameter: 8mm
- Torque: 1.5 N.m
- The largest rotate speed: 1200rpm
- Rated rotate speed: 600rpm
Stepping motor driver features:
- 24-50V DC power supply, can adapt to the toughest environment.
- H bridge dual polarity constant phase flow subdivision driving
- Orignial speed adapting circuit, automatic optimazaiton.
- Convenient circuit setting
- 2-64 subdivision, 15 types of operating mode
- The largest step is 25600P
- 7 ENA protection function
- Working summit voltage range: 1A-4.2A, output current has 8 levels
Package list:
- 2 Phase 57 Stepping Motor x 1
- 2M542-N Driver x 1
