2 Phase DSP Closed-Loop Step Motor Driver Kit 20-70VAC 30-100VDC 2PH 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

Availability: In stock, usually dispatched in 1 business day

  • Price:$275.69
  • Price in reward points: 2757 Reward Points: 28
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $270.18 $264.66 $256.39 $245.36 Contact US
Quantity:

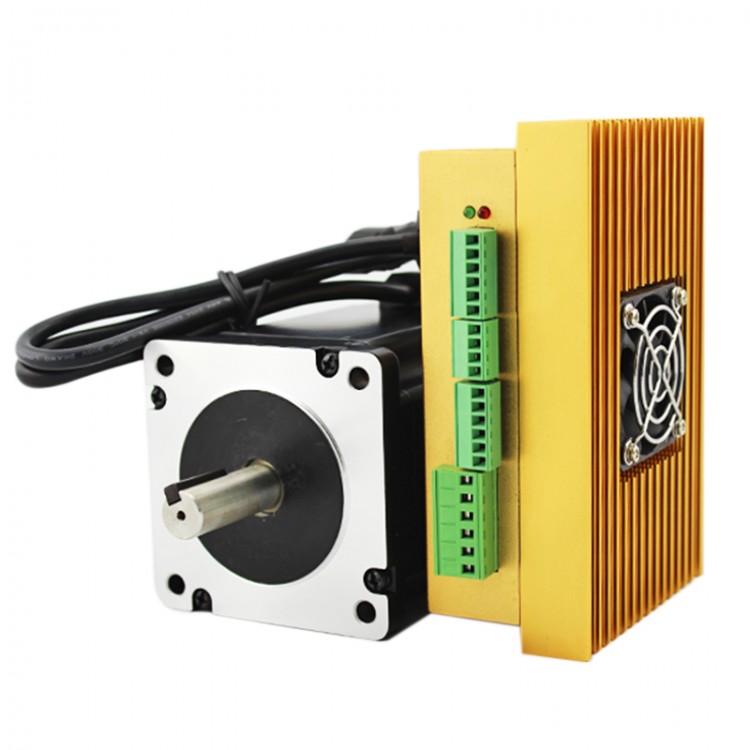

2 Phase DSP Closed-Loop Step Motor Driver Kit 20-70VAC 30-100VDC 2PH 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

Specifications:
- Product Name: 2 phases 86 closed loop stepper motor
- External Diameter: 86mm * 86mm
- Highest speed: 1200 rolls/min
- Motor Length: 90mm~190mm(encoder contained)
- No of encoder: 1000
- Holding Torque: 3 N.M~12 N.M
- Diameter of Axle:14 mm
- Weight: 2.0 kg~5.4 kg
- Matchable Driver: LCDA86H

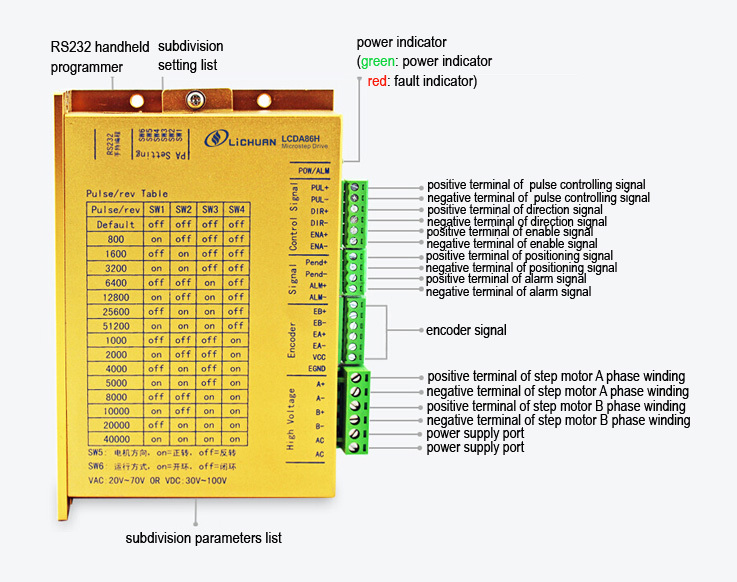

Matchable driver:

Parameters:
- Name: 2 phases 86 closed loop stepper  driver
- Model: LCDA86H
- Drive motor: 2 phases 86 closed loop step motor
- Drive voltage: 20-70V AC / 30-100 V DC
- Drive current: max 6 A
- Subdivision range: 2-256
- Signal voltage: 5V,currentlimiting resistance will be added when input 12 or 24V
- Pulse frequency: 200 khz /  500 khz
- Alarm output: support
- Signal input: pulse / direction and enable signal
- Model: LC86H2160
- Phase: 2
- Holding torque: 12nm
- Phase current: 7.5A
- Motor Length: 160mm
- rotational inertia: 5.4 g.sqrare meters
- Weight(kg): 5.4
- Encoder ppr: 1000

Package Included:
- 1 x  LC86H2160+LCDA86H Step Motor Drive Kit
