2 Phase Nema17 Stepper Motor Driver 128 Microsteps 2A 9-32VDC THB6128 for 42 - 48 Stepping Motor

Availability: Out Of Stock

  • Price:$16.73
  • Price in reward points: 167 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.40 $16.06 $15.56 $14.89 Contact US
Quantity:

2 Phase Nema17 Stepper Motor Driver 128 Microsteps 2A 9-32VDC THB6128 for 42 - 48 Stepping Motor



Description:
- Maximum output current of 2.2A, 2A can fit within a variety of two-phase mini stepper motor, the current 0.2-2A stepless, any setting. Potentiometer is stepless current tick marks are for general reference. If your motor is transferred to 0.4A and 0.5A to 0.6A can be in the middle of the scale.
- Input voltage is DC9-32V. Equipped with power indicator.
- Power supply input circuit with anti-reverse design, more secure.
- Automatic semi-flow on / off function, work more diverse. M4 is set for the switch.
- There decay mode control functions. In matching different types of stepper motors can be controlled in different ways of working, the motor work more stable, noise, vibration to a minimum. LED indicators for the location near the potentiometer setting. Match the motor, adjust the potentiometer so that the motor can be minimal vibration and noise.

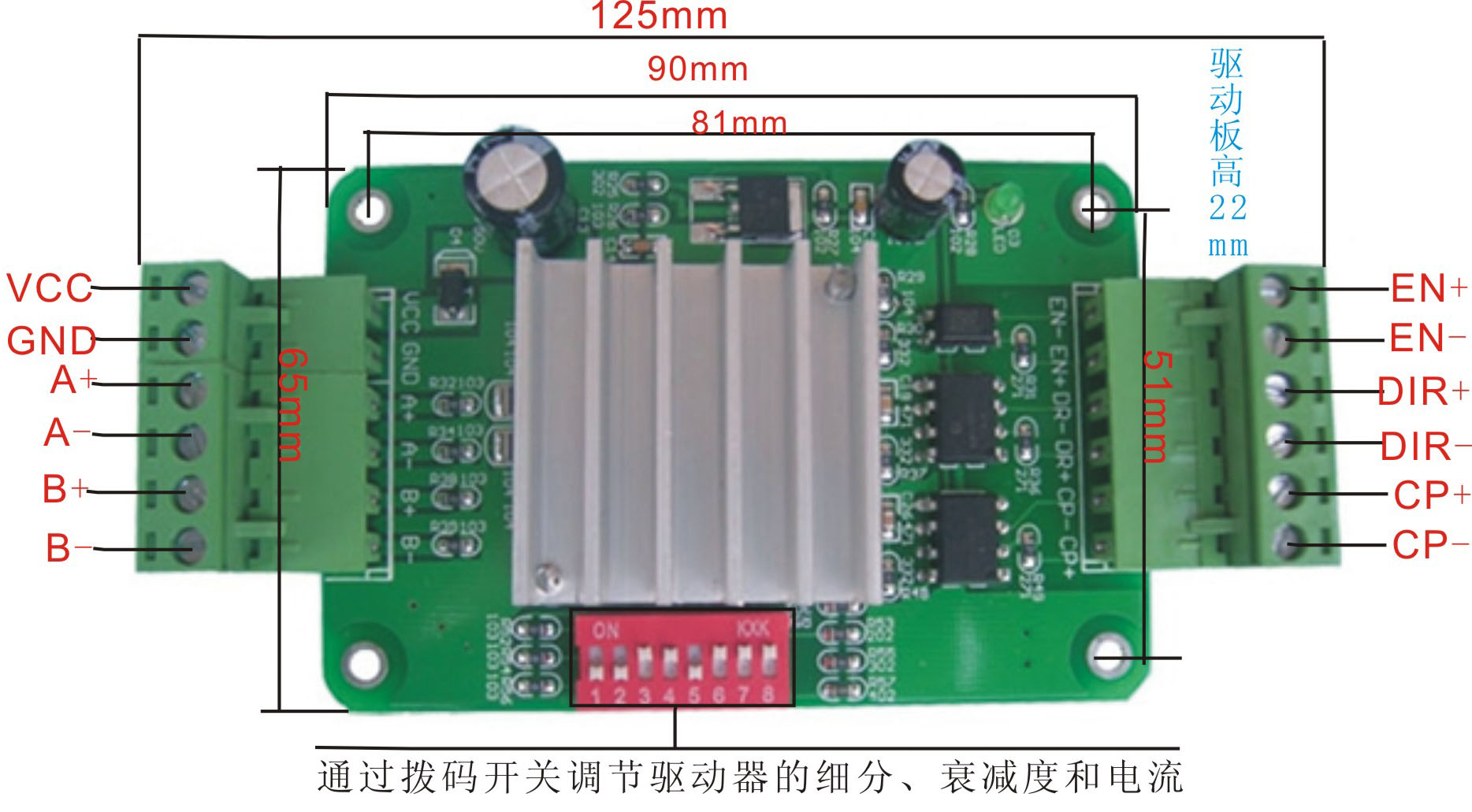

- Industry-standard input and output interfaces, compatibility, can support common cathode or common anode connection.
- With a large heat sink, with fixed columns, screws, easier to use.



Note: 1. Match the power drive must have a capacity of at least 2A or more. Otherwise unstable.

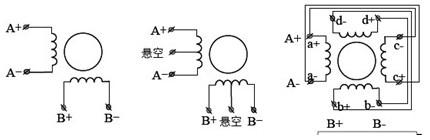

           2. AB phase motor wires shall not cross pick, or burning drive.
           3. When used with PLC, to add around 2K series limiting resistor, or burning drive.



Micro step

S1

S2

S3

1

ON

ON

ON

2

OFF

ON

ON

4

ON

OFF

ON

8

OFF

OFF

ON

16

ON

ON

OFF

32

OFF

ON

OFF

64

ON

OFF

OFF

128

OFF

OFF

OFF




evanescent mode

S4

S5

Slow attenuation

OFF

ON

Hybrid damping

ON

OFF

Fast attenuation

ON

ON

Current

S6

S7

S8

0.4A

OFF

OFF

OFF

0.7A

ON

OFF

ON

1.1A

OFF

ON

ON

1.6A

ON

ON

ON
