2 Phases 110 Stepper Motor Torque 15nm 20nm 22nm 29nm Wheelbase 19mm for Motor Driver LC2280MA

Availability: In stock, usually dispatched in 1 business day

  • Price:$233.62
  • Price in reward points: 2336 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $228.95 $224.28 $217.27 $207.92 Contact US
Quantity:
Buy it now Add cart

You might like

3 Phases 110 Stepper Motor 12nm 16nm 20nm Large Torque Stepper for Motor Driver LC3422HTC LC3722HTC

3 Phases 110 Stepper Motor 12nm 16nm 20nm Large Torque Stepper for Motor Driver LC3422HTC LC3722HTC

$213.58

(0)
2.3KW Servo Motor Set 130mm Flange 15NM 1500rolls for Numerical Control System

2.3KW Servo Motor Set 130mm Flange 15NM 1500rolls for Numerical Control System

$817.15

(0)
2 Phase DSP Closed-Loop Step Motor Driver Kit 20-70VAC 30-100VDC 2PH 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

2 Phase DSP Closed-Loop Step Motor Driver Kit 20-70VAC 30-100VDC 2PH 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

$275.69

(0)
2 Phases 86 DSP Closed-Loop Step Motor Drive Kit 20-70VAC/30~100VDC 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

2 Phases 86 DSP Closed-Loop Step Motor Drive Kit 20-70VAC/30~100VDC 7.5A 12NM NEMA34 86mm Laser Machine LC86H2160+LCDA86H

$228.66

(0)
Servo System 57 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 5A 2.8N/m High Speed

Servo System 57 Two Phases Stepper Motor Stepping Motor Driver Closed Loop Controlling Combo 5A 2.8N/m High Speed

$229.90

(0)
3-Phase AC220V 3.8KW Servo Motor 130 Flange Torque 15NM 2500rolls for Decorating Machine

3-Phase AC220V 3.8KW Servo Motor 130 Flange Torque 15NM 2500rolls for Decorating Machine

$874.19

(0)
High Voltage 86 Two Phases Stepping Motor Driver PAS2-86611 AC110-18V 6A High Speed Type w/ DSP High Speed Chip High Speed Good Performance

High Voltage 86 Two Phases Stepping Motor Driver PAS2-86611 AC110-18V 6A High Speed Type w/ DSP High Speed Chip High Speed Good Performance

$97.90

(0)
DSP 57 Two Phases Stepper Motor Driver PAS2-57508 DC80V 4.5A High Speed Good Performance DSP High Speed Chip

DSP 57 Two Phases Stepper Motor Driver PAS2-57508 DC80V 4.5A High Speed Good Performance DSP High Speed Chip

$89.71

(0)

2 Phases 110 Stepper Motor Torque 15nm 20nm 22nm 29nm Wheelbase 19mm for Motor Driver LC2280MA

Parameters:
- Product Name: Two Phase 110 Hybrid Stepper Motor
- External Diameter: 110mm * 110mm
- Step angle:1.8 degree
- Motor Length: 99mm~201mm
- No. of leads: 4
- Holding Torque :12 N.M~29 N.M
- Diameter of Axle:19 mm
- Weight:5.0 kg~11.7 kg
- Step accuracy: 5%
- Temperature: 80℃ Max
- Ambient temperature: -20℃-+50℃
- Insulation resistance: 100MΩ Min 500VDC
- Withstand voltage: 500V AC 1minute
- Shaft axial play: max 0.02mm(450g  load)
- Shaft radial play: max 0.08mm(450g  load)
- Matchable Driver:LC2208MA

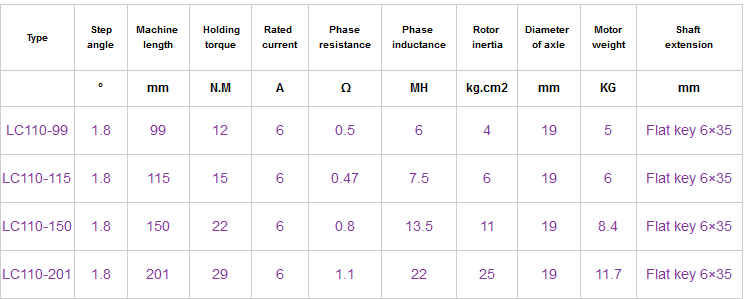

Notice:   The table above is only for the representative products

Package included:
- 1 x 2 Phases 110 Stepper Motor
