| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $30.95 | $30.32 | $29.37 | $28.11 | Contact US |
2 Port HDMI Audio Extractor HDMI Splitter with EDID Setting & 2 HDMI Output HDMI Audio Splitter Adapter Converter
Description:
The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or 2 channel analog audio output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio extractor for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.
FEATURES:
- 1X HDMI input and 2X HDMI output，can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
- Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
- Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
- Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- LED indication: when source or sink is working, LED relative to is light.
- Uses 24bit /192KHz DAC
- No loss of quality
- Installs in minutes
- DC5V/1A power adapter
OPERATIONG AND CONNECTION:
1. Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of extractor.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of extractor.
3. If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIFoutput port of extractor.
4. If you need an analog audio, Connect two AV cables from analog power amplifier/TV into the analog audio output ports of Extractor, the channel must correspond, and switch EDID mode in 2CH.
5. Connect 5V power supply to the extractor and inserted into the power socket.
Packing Content:

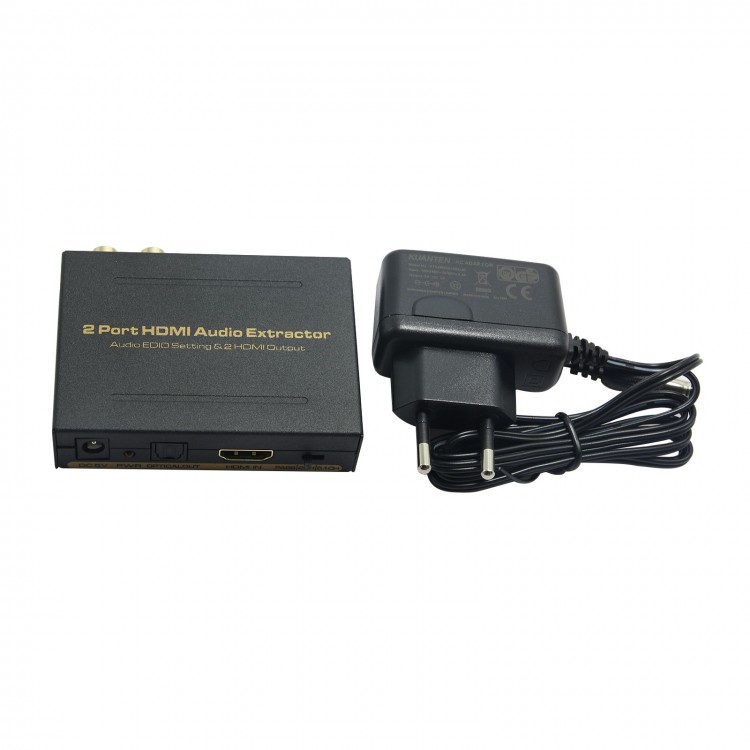

- 1 x 2 Port HDMI Audio Extractor
- 1 x AC power adapter
- 1 x User manual
