Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $63.28 | $61.99 | $60.05 | $57.47 | Contact US |

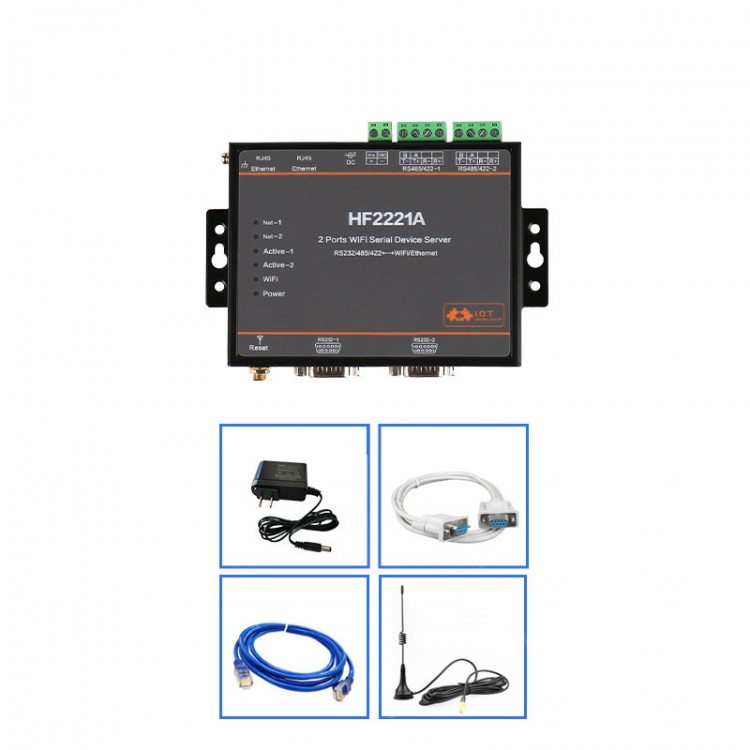

2 Ports WiFi Serial Server RS232/485/422 to WiFi/Ethernet Support for Modbus Gateways with HF2221A Sucker Antenna
Features:
- MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
- Support for TCP/IP/Telnet /Modbus TCP protocol
- Support 2 channel RS232/RS422/RS485 to Ethernet/Wi-Fi conversion, serial speed up to 230400bps
- Support for STA/AP/AP+STA mode
- Support router or bridge network working mode
- Support 10/100M Ethernet Auto-Negotiation
- Support easy configuration through a web interface or PC IOTService tool
- Support security protocol such as TLS/AES/DES3
- Support web OTA wireless upgrade
- Wide DC input 5~36VDC
Basic Parameter:
- Product size: 108 x 146 x 25mm
- Working temperature: -25 ~ 85℃
- Storage environment: -45 ~ 105℃, 5 - 95%RH (non-condensing)
- Input voltage: 5 - 36VDC
- Working current: -200mA
- Power consumption: < 700mW
Package Included:
- 1 x Serial Server
- 1 x 12V Power Adapter
- 2 x Serial Cable
- 1 x Network Cable
- 1 x WiFi Suction Cup Antenna
