2 Serial 26650 Lithium Battery Charger Board with Cable Set Portable Balance Protection Board 5-24V Input for Raspberry Pi
Description:
- BCPB1+ is a charging and protection balance board specially designed for two 26650 lithium batteries. It has a high degree of integration and has a reduced voltage to 5VDC. It has a larger capacity. It can be used as a portable charging bank and is suitable for DIY applications such as portable speakers. BCPB1+ is equipped with perfect protection circuit and has high reliability.
- BCPB1+ uses for MPPT charging chip as a charger and supports 19-24V power supply charging.
- This product is equipped with battery management system (BMS). The battery management circuit not only control the voltage, current and temperature of the entire battery board, and continuously monitors the voltage, charging and discharging current and environmental temperature of each battery to provide overcharge, over-discharge, output overcurrent, short circuit, charging overcurrent and over-temperature protection.
- Thanks to the configured BMS circuit, BCPB series battery panels can realize the self-balance of battery capacity, eliminate the voltage difference between battery packs, and ensure safety and long service life.
Note:

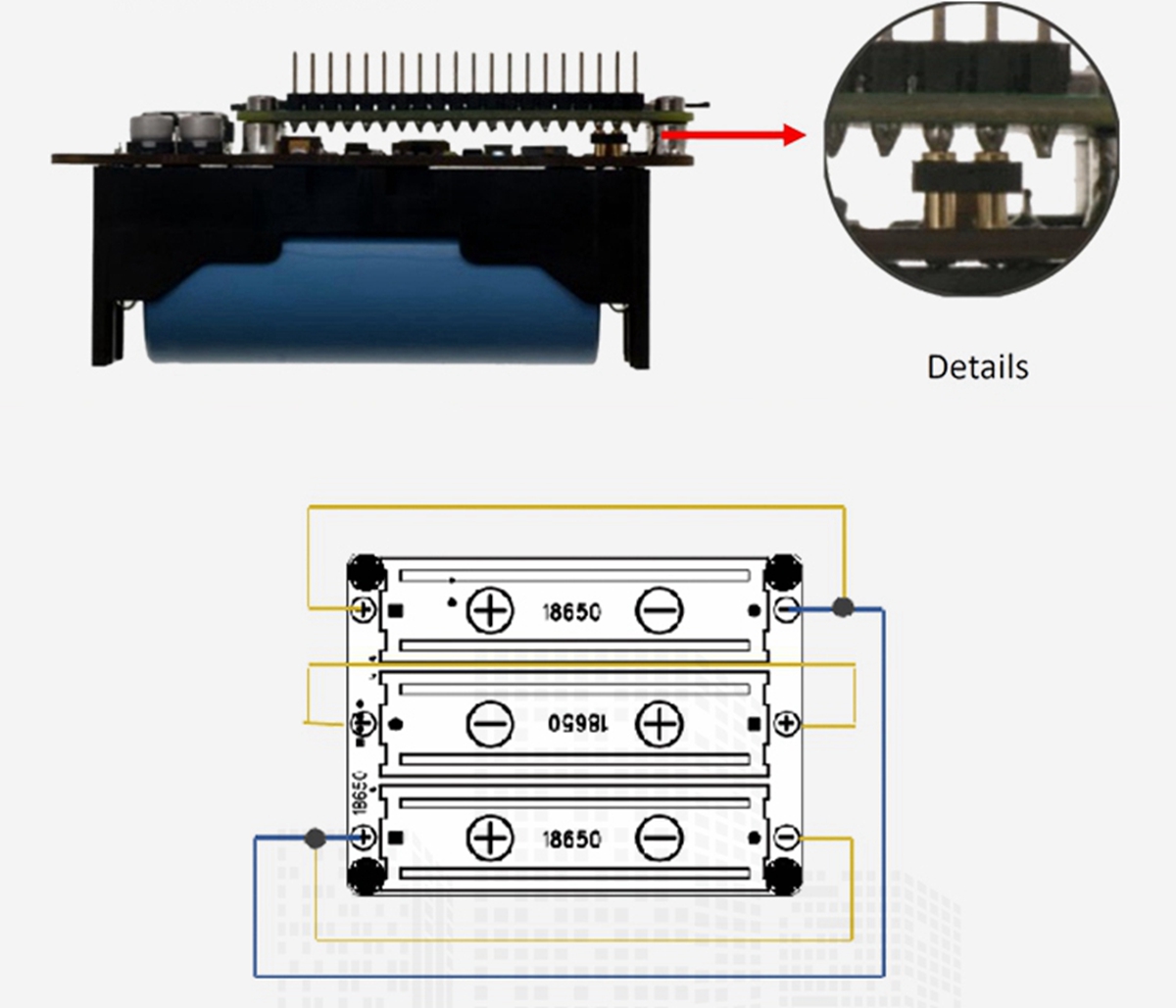

- To prevent short circuit, please install Raspberry Pi first, then install the battery and activate the battery board.
- Four mounting holes are reserved on BCPB1 for fixing Raspberry Pi. Use spring washers during installation.
- Battery is not included.
Package Included:

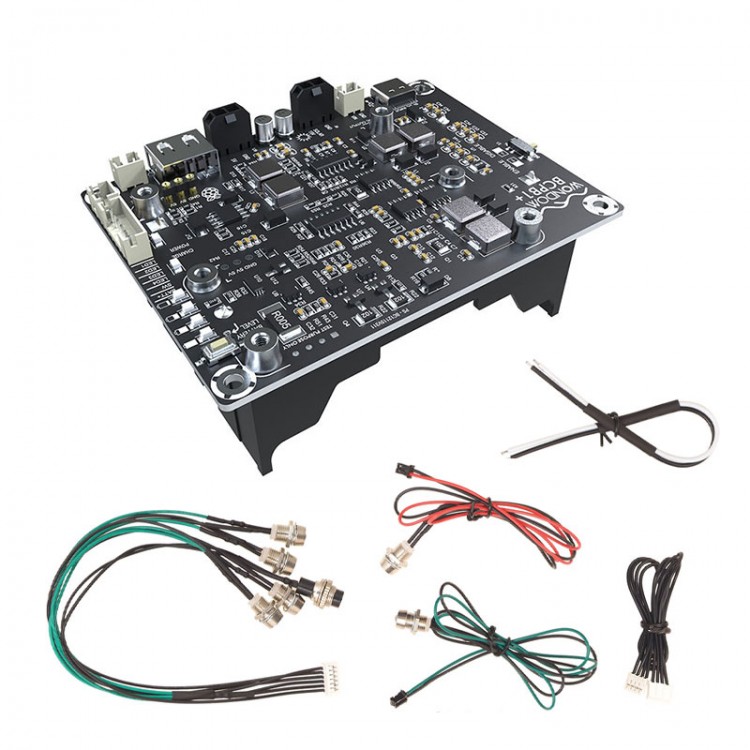

- 1 x Module
- 1 x Cable Set
