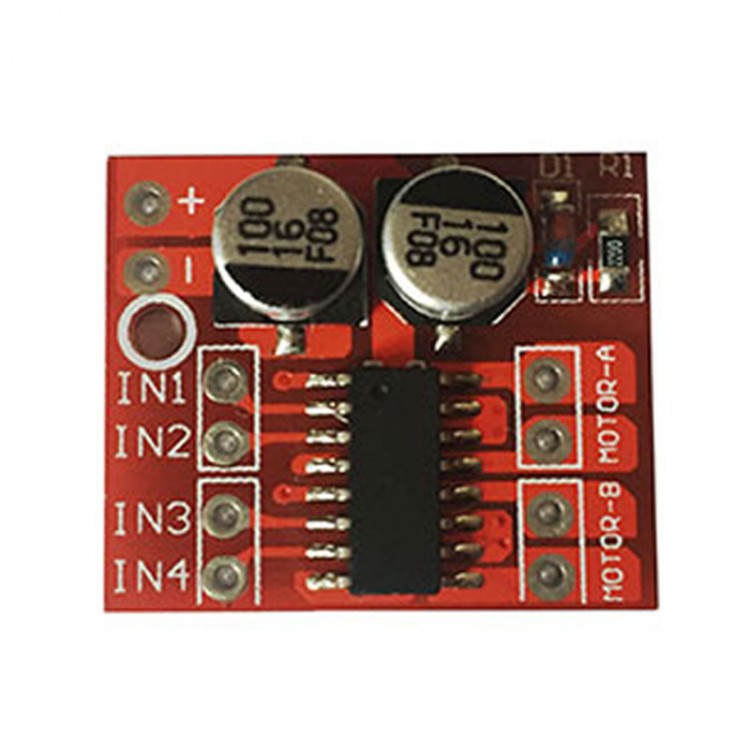

2-Way DC Motor Driver Module CW CCW PWM Speed Adjustment Dual H Bridge Replacement For L298N
Description:
The motor drive module is very suitable for smart cars, toy cars, robots, etc. The power supply voltage is 2V ~ 10V, which can drive two DC motors or a 4-wire 2-phase stepping motor at the same time, to realize CW, CCW and speed regulation.
Each way can reach 1.5A continuous current, peak current can reach 2.5A, with thermal protection and automatic recovery function.
Highlights:
- Imported professional motor driver chip, built-in low-conductance internal resistance MOS switch tube, minimal heat generation, no heat sink required. Your better choice to replace L298N.
- Dual 1.5A * 2, peak current can reach 2.5A. Built-in overheating protection circuit, no need to worry about the motor stalling and burning, it will recover automatically when the temperature drops. (The voltage and current of smart cars on the market are within this range).
- Small size, light weight, zero standby current. Ideal for your model car.
Wiring:
INx ports connect to I/O of MCU or other signal sources. MOTOR-A and MOTOR-B interfaces connects to motors.
Specifications:
- Dual H-bridge motor drive. It can drive two DC motors or a 4-wire two-phase stepper motor at the same time
- Module power supply voltage 2V-10V
- Signal terminal input voltage 1.8-7V
- One-way working current 1.5A. Peak current can reach 2.5A, low standby current (less than 0.1uA)
- Built-in anti-common state conduction circuit, when the input terminal is floating, your motor will not malfunction
- Built-in overheat protection circuit (TSD) with hysteresis effect, no need to worry about motor stalling
- Compact size 24.7*21*5mm makes it perfect for assembly and on-board installation
- Diameter of mounting hole: 2 mm
- Weight: 5g
Note:
1. Reverse connection of power supply will definitely cause circuit damage.
2.When output is short-circuited to ground, output terminal is short-circuited, or your motor is blocked, the chip will be thermally protected. However, when voltage is close to or exceeds 10V and peak current greatly exceeds 2.5A, the chip will also be burned.
Package Included:
- 1 x DC Motor Driver Module
