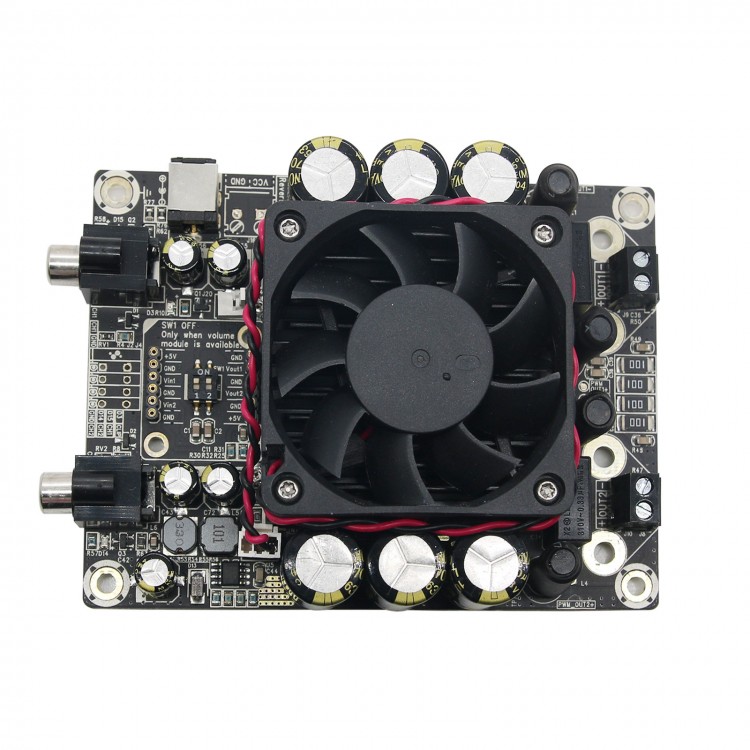

2 X 100 Watt 4 Ohm Class D Audio Amplifier Board - STA508 100W Stereo T-Amp
Description：
- We have recently listed some combo kits which combines amplifier boards with power supplies we suggested. It will be easy to build your system and the combo kits are also high cost-efficient options compared to separated products.
- Please visit our store. You can find them in audio amplifier combo category. Another way to find them is to search on eBay directly with keyword: "amplifier combo kit".
Brief Introduction:
- This amplifier board integrates Tripath’s high performance TC2000 and STA508 chips supporting dual channel audio amplification. Powered by any DC voltage from 10V to 32V, this high efficiency amplifier board is capable of outputting up to 100W per channel. Besides, this board can be used to drive 4Ω or 8Ω passive speakers.
- Net weigt:296g/10.6oz
Features:
- Size: 111.80 (L) × 81.30 (W) × 38.00 (H) ±0.2mm
- A perfect "Class T" architecture
- Wide power supply range: 12V to 30V, maximum 32V
- Frequency response: 20Hz to 20KHz(±3dB)
- Signal/Noise Ratio: 100dB(A-Weighted)
- High Output Power
- 30W @ 6Ω, < 1% THD+N
- 40W @ 8Ω, < 3% THD+N
- 100W @ 4Ω, < 10.0% THD+N
- High Efficiency
- 86% @ 60W 8Ω
- 82% @ 46W 6Ω
- 90% @ 100W 4Ω
- Audiophile Quality Sound
- 0.007% THD+N @ 30W 8Ω
- 0.005% THD+N @ 70W 4Ω
- Line level audio signal input
- Mounting holes facilitate installation and fixing
- Several wiring methods facilitate connection
- New design in power supply supports connection with more amplifier boards of the same type
- Excellent heat sink and powerful cooling fan on STA508 eliminate your worry on heat dissipation
- Over/under voltage turn off
- Over current protection
- Over temperature protection
- Over 90% components are SMT based, which are reliable and environment-friendly
- Ideal for DIY and industrial applications
Applications:
- Home Active Speaker
- Home Theater Receiver
- Multi-channel Distribution
- Active DVD System
- Mini/micro Systems
Specifications:
|
Parameter
|
Condition |
Min. |
Typ. |
Max. |
|
|
Supply Voltage |
- |
10V |
24V |
32V |
|
|
Shutdown Current |
- |
7A |
12A |
16A |
|
|
Quiescent Current |
DC12V, no load |
- |
100mA |
- |
|
|
MUTE=0 |
- |
10mA |
40mA |
||
|
Signal/Noise Ratio |
- |
90dB(A-weighted) |
100dB (A-weighted) |
- |
|
|
Input Sensitivity |
A=0dB |
0.720V |
0.771V |
0.800V |
|
|
THD+N* |
RL=4Ω, Pout=70W |
- |
0.010% |
- |
|
|
RL=8Ω, Pout=30W |
- |
0.007% |
- |
||
|
Frequency Range |
- |
20Hz-20KHz(±3dB) |
|||
|
Efficiency@ VCC=32V |
RL=4Ω, Pout=117W |
|
86% |
|
|
|
RL=4Ω, Pout=46W |
- |
82% |
- |
||
|
RL=8Ω, Pout=60W |
- |
88% |
- |
||
|
Output Power |
THD+N<0.01% |
RL=4Ω, f=1000Hz |
- |
50W |
- |
|
RL=8Ω, f=1000Hz |
- |
35W |
- |
||
|
THD+N<10% |
RL=4Ω, f=1000Hz |
- |
100W |
- |
|
|
RL=8Ω, f=1000Hz |
- |
60W |
- |
||
|
Input Impedance |
- |
11K |
22K |
- |
|
|
Offset Voltage (adjustable) |
|
-10mV |
0mV |
10mV |
|
|
Minimum Load |
- |
3.2Ω |
- |
- |
|
|
Channel Separation |
Po=100W, RL=4ohm |
80dB |
95dB |
- |
|
|
Power Gain |
- |
14V/V |
16V/V |
18V/V |
|
|
Operating Temperature |
- |
0℃ |
20℃ |
50℃ |
|
|
Storage Temperature |
- |
-20℃ |
20℃ |
105℃ |
|
|
Thermal Warning |
- |
- |
130℃ |
- |
|
|
Thermal Shutdown |
- |
- |
150℃ |
- |
|
Note:
- The accessories might be a little different from what you've seen on webpage since the accessories you received might be from different batch. However, it won't affect your use. Sure Electronics assumes no liability for any ambiguity caused by the product photos.
